Description

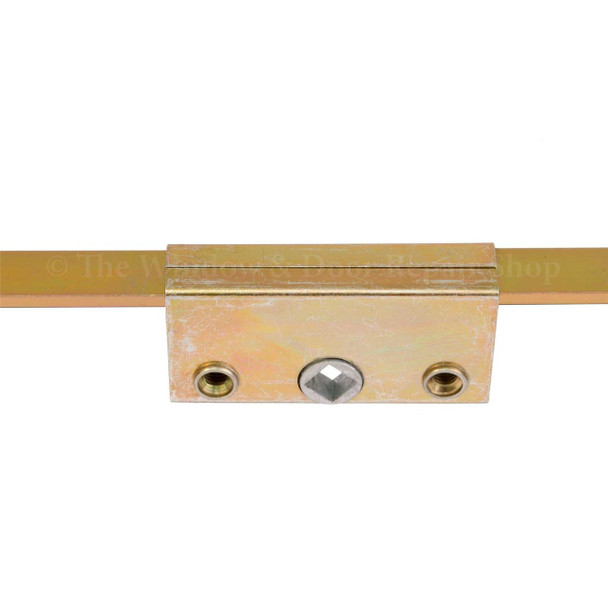

JCP Slimtrack 13mm Offset Espag 22mm Backset
The JCP Slimtrack Single Track Espag Lock is ideal for repairs. Its size means that it can fit most window profiles and is simple to install. These are "Retrofit slimtrack" locks, they are the old type of window locks where the whole rail moves when the lock is operated, rather then the new type where the rail is fixed and the cams move independently.
Features
- 13mm Rail Width
- 9.0mm Cam Height
- 22mm Backset
- 7mm Spindle Diameter
- Offset Gearbox
Whats in the pack?
1 x 13mm Offset Slimtrack Espag lock
Screw Bushes

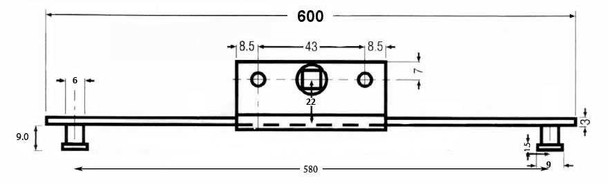

Specifications
Cam Height: |
9mm |
Backset: |
22mm |
Rail Width: |
13mm |
Product Reviews
-
JCP 13mm slimtrack
The product is great fitted easily,my main thanks is the product support from the from your sales team. Thank you
-
Window mech
Ideal replacement for the original mech which was very old and hard to obtain. Very quick delivery
-
JCP Offset 13mm Slimtrack UPVC Window Espag Rod Lock Mechanism
Product as described does the job as stated. JCP catalogue was a big help , and the supply service is first class despite these difficult times. Many thanks will use you again.
