Key stiff, snapped or won't turn, or want a more secure lock? The part to replace is the cylinder lock, often called the door barrel or barrel lock: the part the key goes into. We stock replacement cylinders for uPVC, composite, aluminium, timber, garage and entrance doors, including euro cylinder locks, thumb turn locks, half-euro and rim cylinders, anti-snap TS007 3-star locks, keyed-alike sets and a key cutting service.
A door lock cylinder replacement takes a few minutes with a screwdriver. Measure the cylinder from the centre fixing-screw position to each end before ordering. The two sides can be different lengths, so record the internal and external measurements separately.
Not sure of your size? Our step-by-step cylinder measuring guide shows you where to measure and tells you the size that fits.
How to measure a euro cylinder

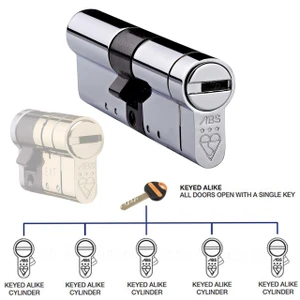

Euro cylinder locksKey both sides, incl. 3-star

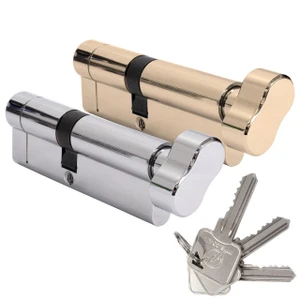

Thumb turn locksKey outside, turn knob inside

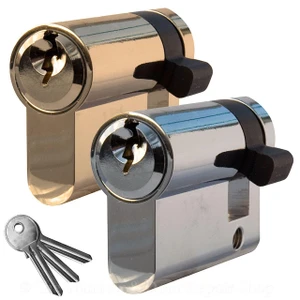

Half-euro cylindersOne-sided, e.g. garage doors

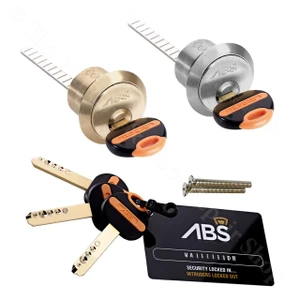

Rim cylindersFor night latches

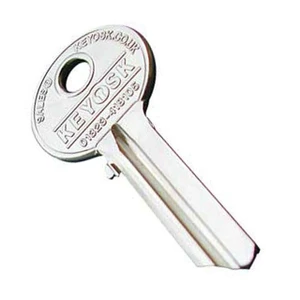

Key cutting serviceExtra keys cut to codeMost modern uPVC and composite doors use a euro-profile cylinder, but the correct configuration depends on the door and how it is operated.
With the door open, undo the long fixing screw in the edge of the door, level with the keyhole. Put the key in and turn it slightly, about 10 to 15 degrees, so the cam lines up with the cylinder body, then slide the cylinder out. Fit the new one the same way and refit the screw. Check the lock works with the door open before you close it.
Measure from the centre of the fixing screw to the outside end of the cylinder, then repeat from the centre to the inside end. Write the size as two measurements, such as internal/external. Check which side contains a thumbturn where applicable. For pictures and a size checker, see our euro cylinder measuring guide.
A cylinder that projects too far beyond the door furniture can be more exposed to attack, while one that is too short may not operate correctly. Compare the new size with the fitted cylinder and the thickness of the door handles or security escutcheons.
The range includes standard-security cylinders and higher-security products with TS007 star ratings. Options include anti-snap, anti-pick and anti-drill features, depending on the individual model. Check the product specification for the exact certification and protection provided.
Keyed-alike cylinders allow more than one lock to operate with the same key. Thumbturn cylinders provide key operation outside and a turn knob inside. Half cylinders are commonly used where access is required from only one side, including some garage-door applications.
Our range includes Yale Platinum and Superior, Avocet ABS, GreenteQ Orion, Fullex Kinetica+, ERA Fortress, Mila BreakSafe, UAP, Versa, Eurospec and JCP cylinders. Available security ratings, sizes, key quantities and configurations vary by product.
Yes. Door barrel, barrel lock, cylinder lock and euro cylinder all describe the same part: the lock the key goes into. Most uPVC and composite doors use a euro cylinder.
You can estimate the dimensions while fitted, but removing the cylinder normally provides the clearest and most accurate measurement from the centre fixing-screw position. Our how to measure a euro cylinder guide walks you through it.
No. Many doors require an offset cylinder with different internal and external measurements.
Keyed-alike cylinders are prepared so the same key operates multiple locks. Check whether the product is supplied as a set or made to an existing compatible key code.
No. Security features and independent ratings are separate product specifications. Check the individual listing for its confirmed star rating and certification.
Not sure which cylinder you need? Send us a photo of your cylinder with a tape measure alongside and we’ll identify it for you.
