Avocet Slimline Offset UPVC Window Espag Rod Lock Mechanism 14mm U Rail 20mm & 22mm Backset

No yet Review(s) Write a Review
£8.52
SKU:
PAR-WMS-ESP-G14.2164
Cam Height:
8mm
Rail Width:
14mm
Size Chart

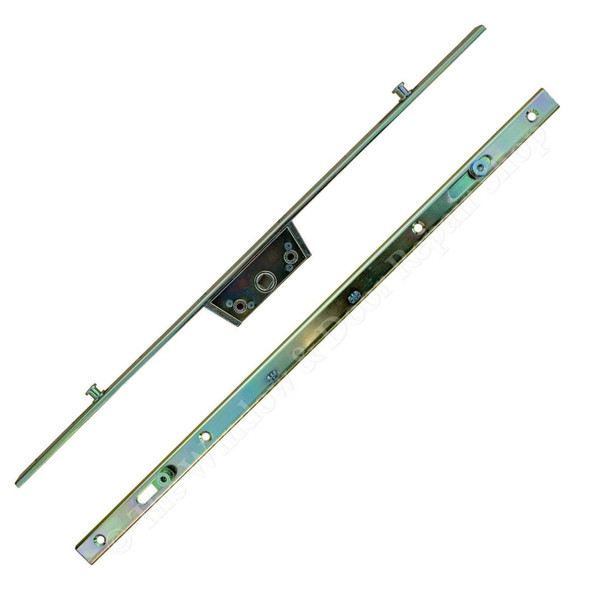

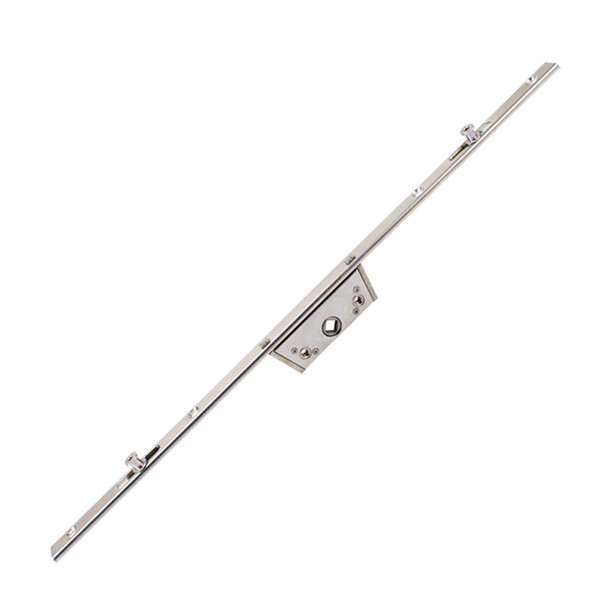

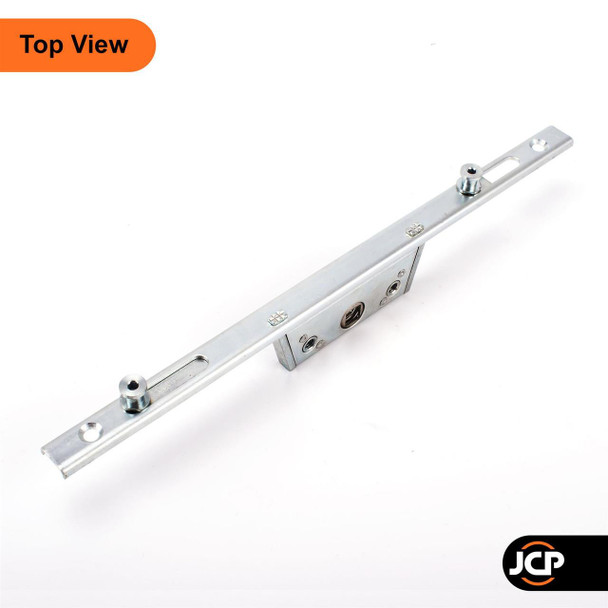

Avocet WMS Offset Espag Bar Rod UPVC Window Lock Mechanism - 14mm U Rail 20mm or 22mm Backset

An espagnolette multipoint UPVC window lock is the gearing part inside a window that a spindle drive handle operates. This offset mushroom bolt espagnolette is designed for profiles with or without a Eurogroove and can be used on Aluminium, Timber and UPVC window systems. Avocet espags can be fitted to side or top hung windows. This offset espag offers proven reliability at a reasonable cost, this espag can be used as a replacement for many other makes and as long as your backset and rod measurements are identical, then you only need to adjust the mushroom keeps on your window to become compliant with your new espag lock. The offset espag is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle.

Features:

  • Eccentric cams to provide smooth operation
  • Offset Gearbox
  • Mushroom Cam locking points
  • Endurance tested to 25,000 operations
  • Corrosion resistant
  • Gearbox Body Zinc BS1004A
  • Made by Avocet (WMS)

What's in the pack?

1 x Avocet WMS Offset Espag UPVC Window Lock Mechanism - 14mm U Rail

Dimensions:

  • Rail Length: 250mm, 400mm, 600mm, 800mm or 1000mm
  • Cam Height: 8mm
  • Backset: 20mm or 22mm
  • U Rail Width: 14mm

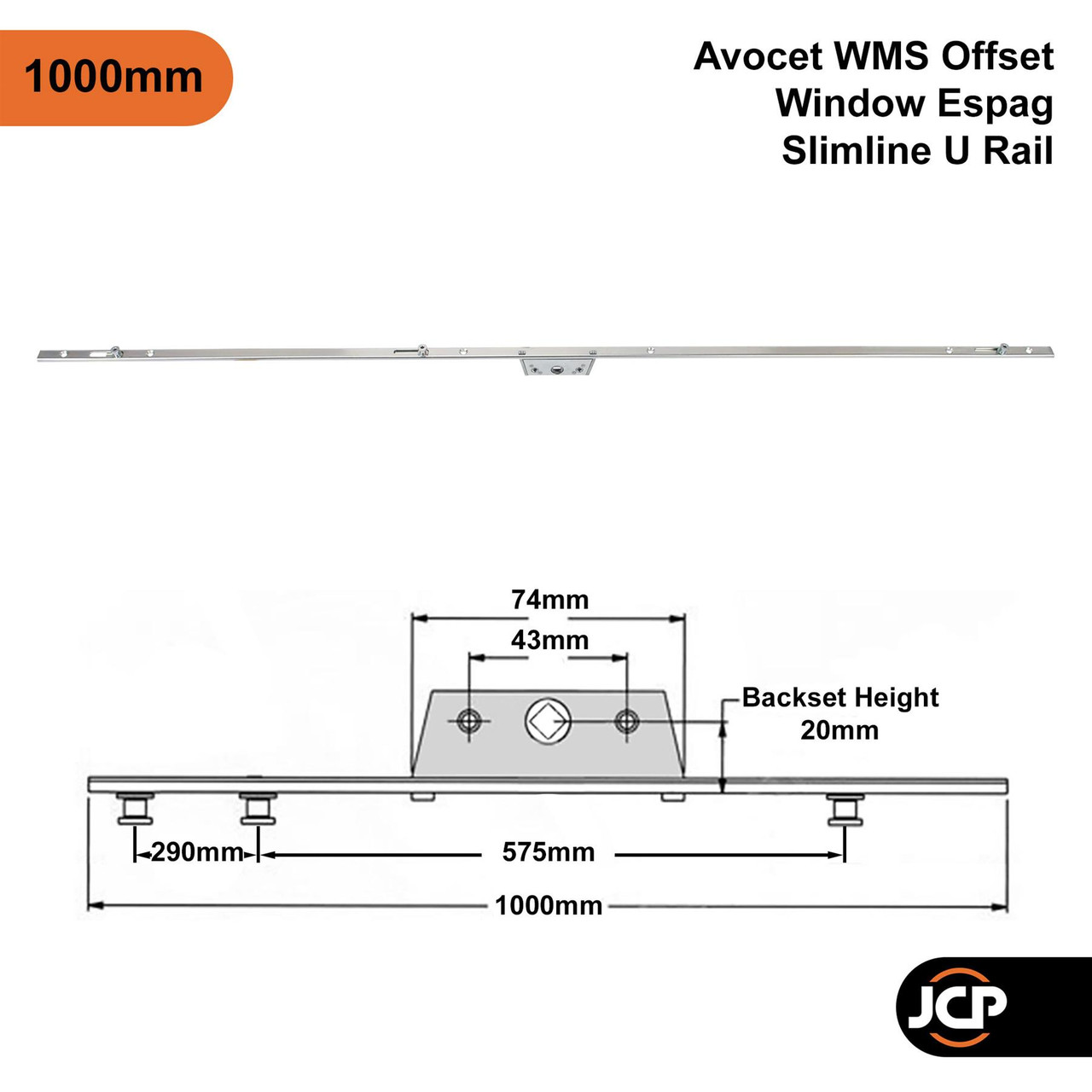

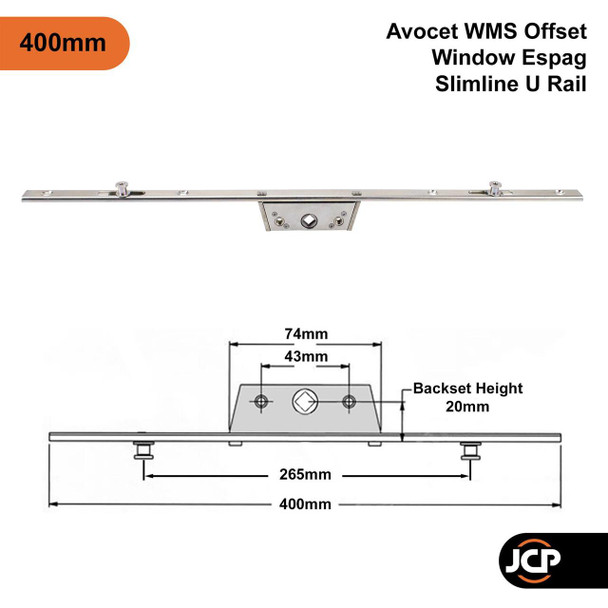

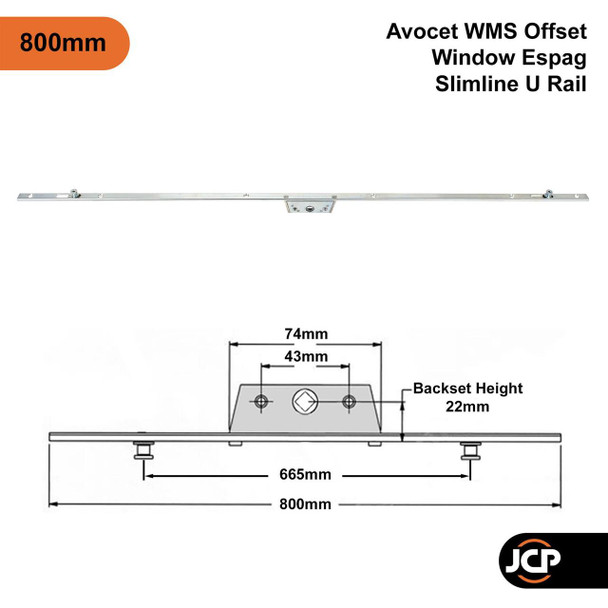

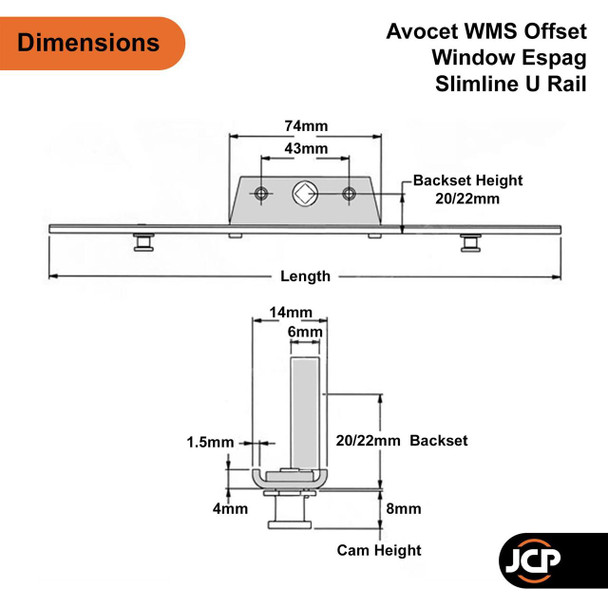

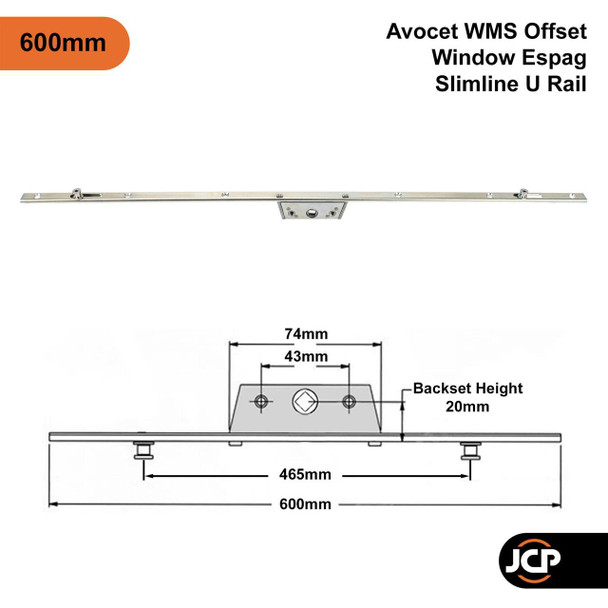

For all measurements please see the diagram in the gallery.

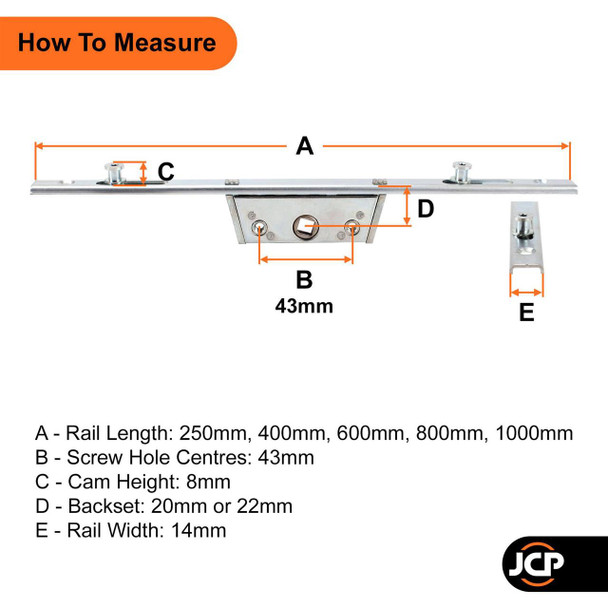

How to identify your window lock - which do I choose? The diagrams in the gallery will help you identify the parts to measure.

Lets look at the things that matter;

  • A - Rail (rod) length - this is the total length of the rod from end to end.
  • B - The distance between screw hole centres. 43mm is the industry standard for almost all Espagnolette rods.
  • C - Cam Height - The height of the projecting locking part on the rod. Often called a mushroom cam due to its shape, it can be used to replace roller cams without problem.
  • D - The Backset - this is the horizontal distance from the face of the lock to the centre line of the handle screw fixing holes.
  • E - Rail width - this is the width of the rod from side to side.

All espagnolette multipoint locks are interchangeable regardless of make but it is essential that the measurements outlined above are correct. If a different make is substituted it is possible that the existing keeps will need to be adjusted to accommodate a slight difference in position of the new cams.

Rail Width:

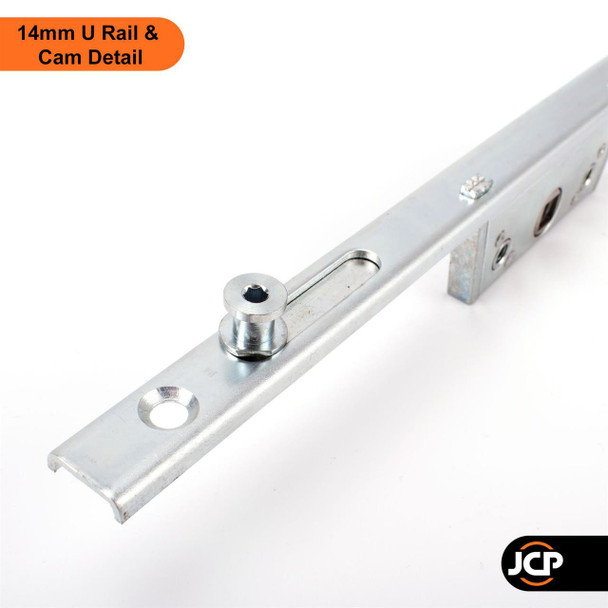

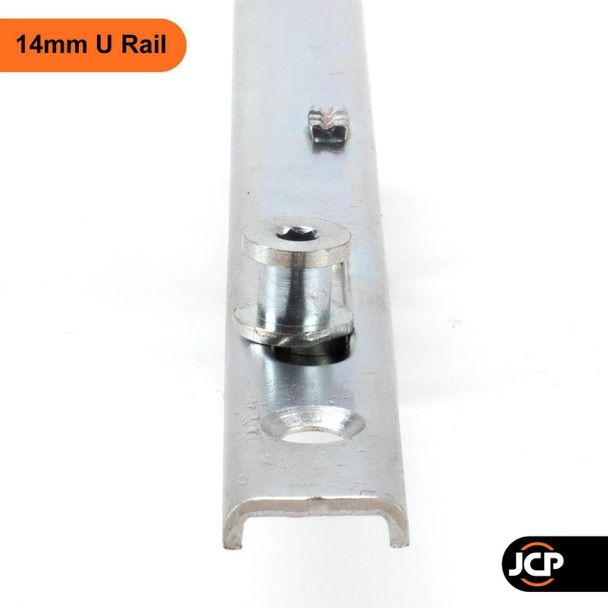

Rail width - this is the width of the rod from side to side and almost always 16mm, but please check as you may need a slim 14mm rail offset Espag like this one. The image in the gallery will show you where to measure.

Mushroom cams or rollers?

Mushroom Cams are standard on all our Espag locks, these can be used to replace roller cams without problem. Please see image in gallery.

Offset or Inline?

Now you must determine if you require an 'inline' or 'offset' lock. Again use the picture in the gallery to help you. An inline lock holds the gearbox in the centre of the rail whereas the offset lock is set to one side. These are listed separately on our categories page. The new locks will have adjustable mushroom cams that can be moved using an Allen key. If the handle is loose and slips into the closed position too easily you may need to increase compression by adjusting the cams. Likewise if the handle is difficult to close compression may need to be decreased. We advise regular care of your locks with the use of a maintenance spray to prolong life and maintain smooth action.
