Patio door hard to slide, handle broken or not locking properly? Repair sliding, inline and tilt/slide patio doors with replacement parts matched to the existing system: sliding patio door handles, patio door locks, sliding door rollers and wheels, bogie springs, replacement levers, blanking plates and extra patio door security locks from GreenteQ, Yale, Schlegel, TSS, Hoppe and more.
Measure carefully before ordering. Handles can differ by PZ centres, screw centres, spindle size and handing, while rollers must match the cartridge dimensions, wheel size and adjustment range.
Sliding patio door hardwareHandles, rollers, levers and springs
Tilt & slide patio door hardwareFor doors that tilt in before sliding
Patio door securityExtra locks for patio and French doorsFrom the centre of the handle spindle to the centre of the cylinder hole, where a cylinder is fitted.
The distance between the fixing screws through the backplate. Also check the spindle size, backplate dimensions and handing.
Measure the complete cartridge body, not just the wheel. Note the fixing method and height-adjustment range.
Measure the wheel diameter and note how many wheels there are and where they sit in the cartridge.

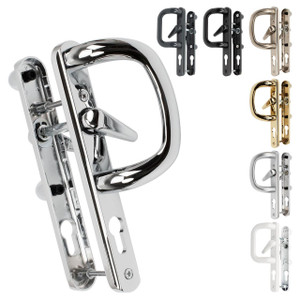

Inline sliding door handles are available in several arrangements, including locking sets, dummy handles, lever-only parts and external blanking plates. Check the PZ measurement where a cylinder is fitted, the screw fixing centres, spindle size, backplate dimensions and whether the handle is handed or reversible.
Our current range includes handle configurations with 43mm, 90mm and 92mm PZ centres, together with several fixing-centre measurements including 109mm, 133mm, 145mm and 154mm. These figures are examples from the range and do not make the handles interchangeable.
Roller assemblies vary by cartridge body, wheel diameter, wheel position and height-adjustment range. Remove and measure the existing roller where possible. Compare the complete assembly rather than selecting only by the visible wheel diameter.

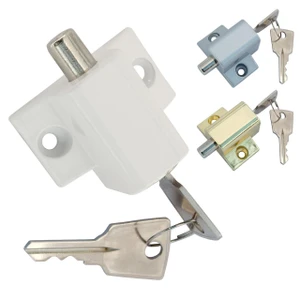

The range includes selected sliding patio door locks, tilt/slide bogie springs, security deadbolts and security devices for suitable French or conservatory doors. Check the door type and product fitting requirements carefully because sliding, tilt/slide and hinged French doors use different systems.
Products include GreenteQ, Schlegel, TSS, Yale, Hoppe, Trojan, Patlock, Mila, Fullex, Winlock, Fab & Fix, Siegenia, GU, JCP and Securit. Availability varies by system and measurement.
No. Match the PZ centres, screw centres, spindle, backplate and handing. Handles with a similar appearance can have different fixing positions.
With the door open, undo the screws on the inside handle, which usually bolt through to the outside handle. Remove both handles, fit the new pair with the lever or spindle engaged in the lock, and tighten the screws evenly. Check the handle locks and unlocks the door with it open before you close it.
Not reliably. Compare the cartridge dimensions, wheel arrangement, fixing method and adjustment range as well as the wheel size.

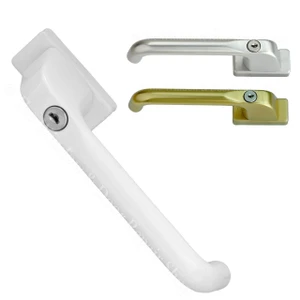

No. Tilt/slide doors use a different operating system with dedicated handles, bogies and related components.
Suitable options depend on the door style and handle arrangement. Check the product fitting requirements before ordering, or browse our patio door security range.
Not sure which patio door part you have? Send us clear photos of the fitted part and your measurements through our part identification page and we'll match it for you.
