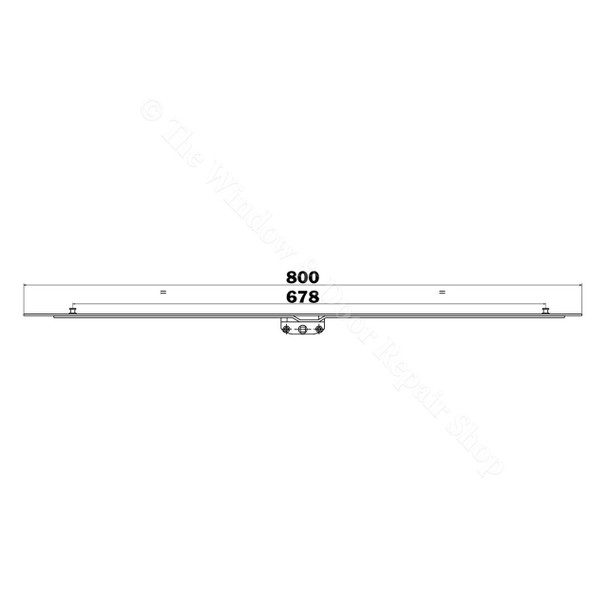

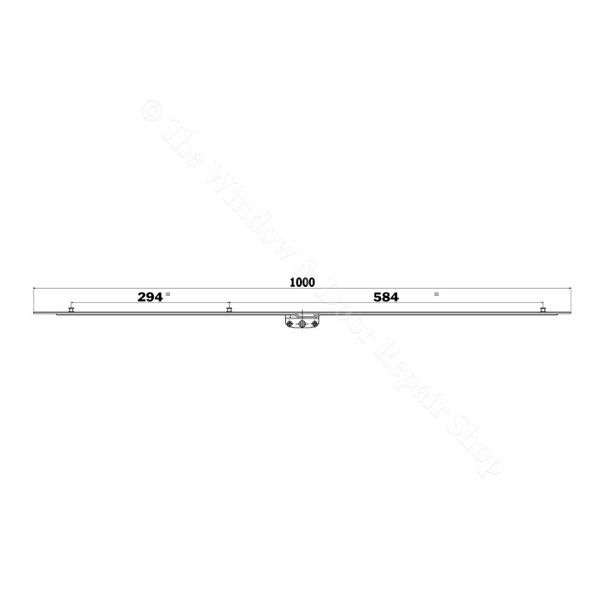

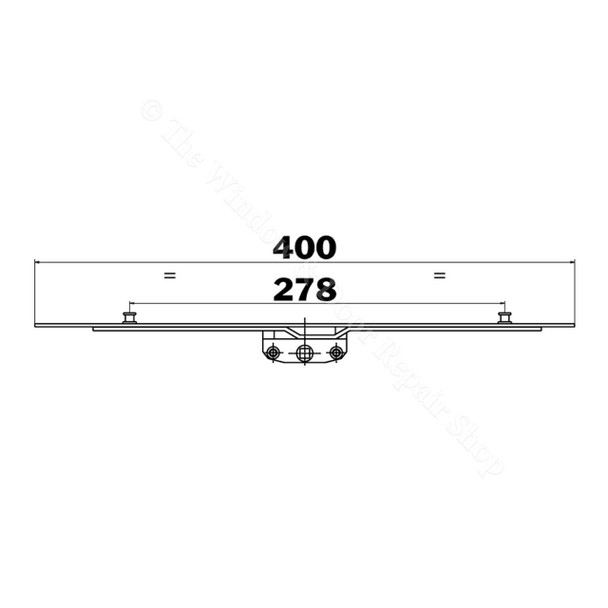

Maco Inline UPVC Window Espag Rod Lock Mechanism

1 Review(s) Write a Review
Cam Height:
Rail Width:

Maco Inline Espag UPVC Window Lock Mechanism

The MACO Inline mushroom bolt espagnolette is designed for profiles with a Eurogroove and can be used on Aluminium, Timber and Upvc window systems. The Maco Inline Espag is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle. Maco Espags can be fitted to side or top hung windows.

Maco espags can be used as a replacement for many other brands and as long as the backset and rod measurements are identical, you only need to move your existing keeps to suit the new cam lock postions.


  • 20mm or 22mm Backet
  • Eccentric cams to provide smooth operation (adjustable with an Allen key)
  • Inline gearbox
  • 7.7mm Mushroom Cam Height
  • Faceplate width: 16mm
  • Corrosion resistant
  • Faceplate in steel, gearbox in zinc die-cast
  • 7mm square spindle

What's in the pack?

1 x Maco Inline Espag Window Lock Gearbox
