Door Handles

How to Choose a Replacement Door Handle

Replacement door handles can look very similar while having different measurements, so it is important to measure your existing handle before ordering. The main measurements to check are the PZ centre and screw fixing centres.

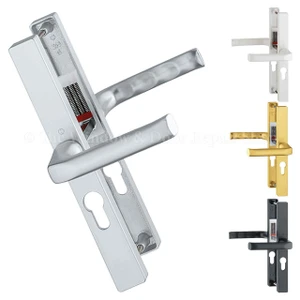

• PZ centre: Measure from the centre of the square handle spindle to the centre of the key cylinder.
• Screw fixing centres: Measure from the centre of the top fixing screw to the centre of the bottom fixing screw.
• Backplate size: Check the overall length and width, especially if the new handle needs to cover marks left by the old one.
• Handle type: Check whether you need lever/lever, lever/pad, offset or another handle arrangement.

92mm PZ is one of the most common measurements used on uPVC and composite doors, but many older and specialist multipoint locks use different sizes. Matching the PZ alone does not guarantee that the replacement handle will fit, so always check the screw centres as well.

Not sure of your PZ size? Use our uPVC Door Handle Finder and enter your PZ, screw centres and handle type.

How to Replace a uPVC Door Handle

With the door open, undo the fixing screws on the inside handle (usually two, sometimes more), then pull both handles and the square spindle out of the door. Push the new spindle through the lock, fit the outside and inside handles, and tighten the screws evenly. Check the handle lifts and springs back, and that the door locks with the door open, before you close it.

Lever/Lever, Lever/Pad and uPVC Door Levers

Lever/lever handles have an operating lever on both sides of the door and are one of the most common configurations used on uPVC and composite doors.

Lever/pad handles normally have an operating lever on the inside and a pad on the outside. Depending on the lock and handle design, this can restrict normal entry from outside without using the key.

Some multipoint locks use offset or split-spindle handles. If your existing handles have different internal and external lever positions, compare the product measurements carefully before ordering.

Composite and front door handles: most composite front doors use the same multipoint lock handles as uPVC doors, so you measure and match them in exactly the same way. External and internal handles are usually sold as a pair.

Looking for sliding patio door handles? See our patio door hardware.

Repair and Replacement Handles for Older Doors

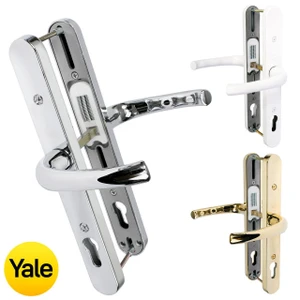

Older uPVC and composite door handles can become obsolete, particularly where the original fixing centres are unusual. In these situations, an adjustable or repair handle may provide a practical replacement without changing the complete multipoint locking system.

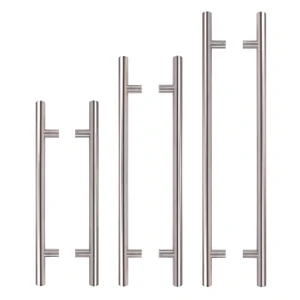

See our repair door handles, pull door handles and door handle accessories.

uPVC and Composite Door Handle Brands

Our range includes replacement door handles from leading manufacturers and hardware brands including Yale, ERA, Fullex, Hoppe, Trojan, Mila, Fab & Fix, GreenteQ, Avocet, TSS, Schlosser, Ultion and Winlock. Availability varies according to PZ measurement, screw centres, handle type and finish.

Door Handle Finishes and Materials

Replacement handles are available in popular finishes including white, black, polished chrome, satin chrome and gold effect, together with stainless steel options for selected applications. Check the individual product specification where a particular material or level of corrosion resistance is required.

Frequently Asked Questions

How do I measure a uPVC door handle?

Measure from the centre of the handle spindle to the centre of the key cylinder to obtain the PZ measurement. Then measure between the centres of the fixing screws. You can enter these measurements into our Door Handle Finder to narrow down suitable replacements.

Why is my uPVC door handle drooping?

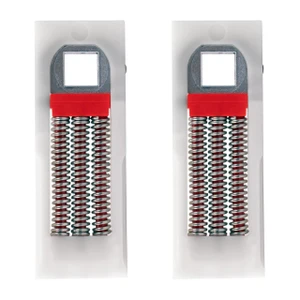

A handle that droops or won't spring back up usually has a broken spring inside. Replace the handle, or on some designs just the spring cassette. See our door handle accessories.

Are uPVC door handles left or right handed?

Many replacement uPVC door handles are reversible and can be used on either hand of door, but this is not universal. Always check the individual product specification before ordering.

Will a 92mm PZ handle fit my door?

Only if your existing lock also has a 92mm PZ measurement and the other important dimensions, particularly the screw fixing centres, are compatible. Two handles can both be 92mm PZ while having completely different fixing positions.

What is the difference between PZ and screw centres?

The PZ measurement is the distance from the centre of the handle spindle to the centre of the key cylinder. Screw centres are the distance between the centres of the fixing screws. They are separate measurements and both should be checked before ordering.

What if my original door handle is obsolete?

If an exact replacement is no longer available, an adjustable or repair door handle may be suitable. If you are still unsure, contact us with your measurements and, where possible, photographs of the existing handles and we can help identify the best option.
