Description
Avocet Offset UPVC Window Espag Rod Lock Mechanism 16mm U Rail
An espagnolette multipoint UPVC window lock is the gearing part inside a window that a spindle drive handle operates. This offset mushroom bolt espagnolette is designed for profiles with or without a eurogroove and can be used on Aluminium, Timber and UPVC window systems. Avocet espags can be fitted to side or top hung windows.

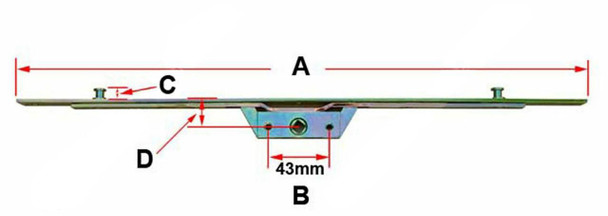

This offset espag offers proven reliability at a reasonable cost, this espag can be used as a replacement for many other makes and as long as your backset and rod measurements are identical, then you only need to adjust the mushroom keeps on your window to become compliant with your new espag lock. The offset espag is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle.
Features:
- Eccentric cams to provide smooth operation

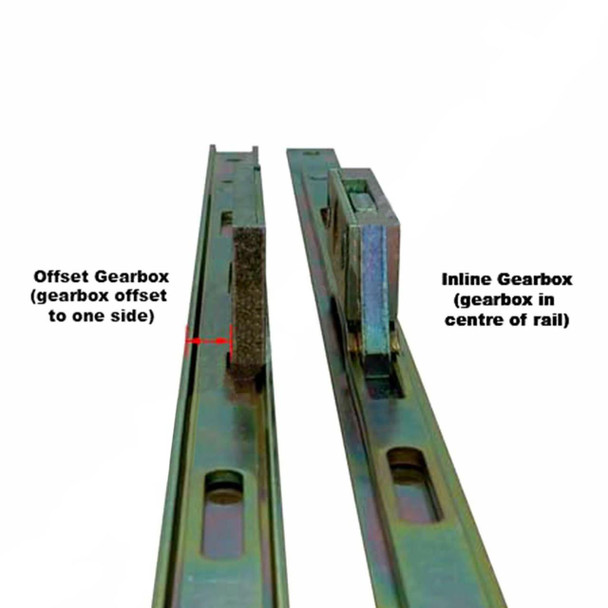

- Offset Gearbox
- Mushroom Cam locking points
- Endurance tested to 25,000 operations
- Corrosion resistant
- Gearbox Body Zinc BS1004A
- Cam Height 8mm
What's in the pack?
1 x Avocet WMS Offset Espag UPVC Window Lock Mechanism - 16mm U Rail

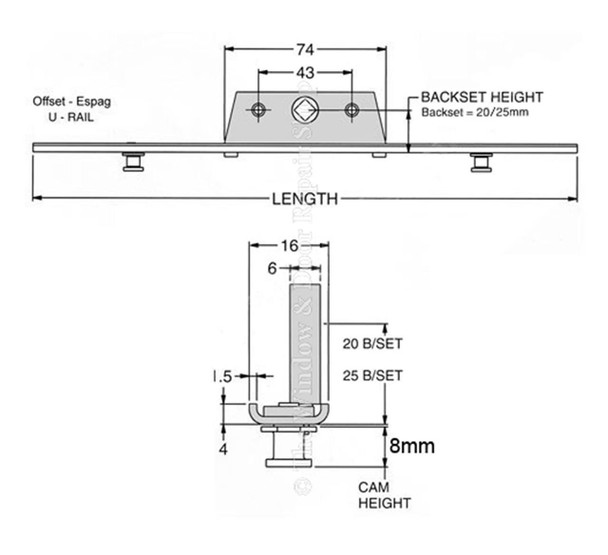

Specifications
Cam Height: |
8mm |
Rail Width: |
16mm |
Product Reviews
-
Espag Rod Lock
Fitted perfectly and was as the description. Looks decent quality but time will tell. I am certainly no expert.
