Description

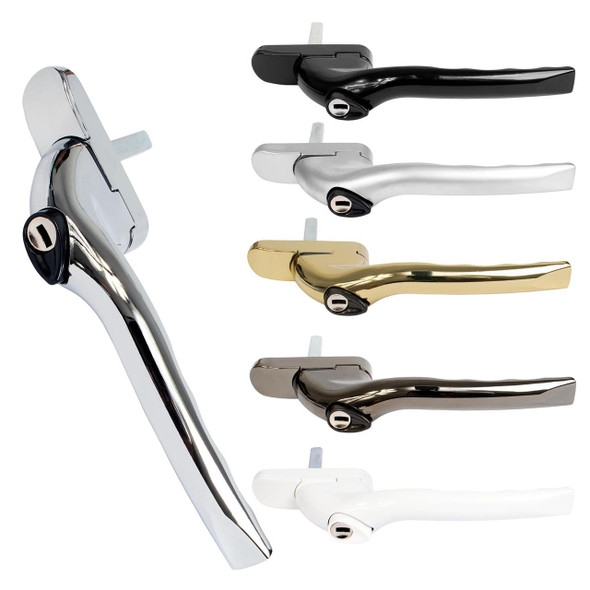

Mila Smart Spindle Universal Inline Espag Window Handle
The new 'Smart Spindle Espag Handle' is essentially the choice of five different spindle lengths from one handle. With 5 interchangeable spindles to choose from, and its ability to be used with PVCu, Timber and Aluminium, it can be made to fit nearly all windows; simply choose the spindle required and click into place. Its ergonomic design makes it a comfortable, easy to use handle for use with both the left and right hand. These handles include a key locking system that can be used for extra security. The distance between the screw holes are an industry standard 43mm, this will fit the majority of espagnolette and shootbolts in windows.
Features
- 5 interchangeable spindles (9-55mm)
- Innovative "Click Fit" feature ensuring a correct fit every time.
- Suitable for UPVC, aluminium and timber windows.
- Ergonomic Design.
- Universal handing - it can be used for both left and right handed handles
- Given the 'Secured by Design' - The official UK Police Security Initiative.
Whats in the pack?
1 x Smart Spindle Espag Handle.
1 x 9mm Interchangeable spindle.
1 x 15mm Interchangeable spindle.
1 x 30mm Interchangeable spindle.
1 x 40mm Interchangeable spindle.
1 x 55mm Interchangeable spindle.
1 x Screw cover cap.
2 x Screws.
1 x Key.
1 x Fitting Instructions
Handle Screw Hole Fixing Centres:
Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.
Spindle Length
The Mila Smart spindle upvc window handle comes with 5x Interchangeable spindles to cover most spindle options.
Spindle Diameter
Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows
Handing
These handles are of the inline type, therefore they will replace both left and right hand handles.
Specifications
Handing: |
Universal/Reversible |
Key Locking: |
Yes |
Spindle: |
7mm |
Type: |
Inline |
Product Reviews
-
EAST TO INSTALL WINDOW HANDLES
I had five window handles to replace and this product made the job quick and easy especially since each handle includes five different spindle lengths which avoids the need of having to cut a universal spindle to size. Just had to unscrew and remove the damaged handles and select the correct length of supplied spindle to insert with the new handle which also has the benefit of opening to the left or right. Excellent product.
