Securistyle uPVC Window Handle Universal Inline Espag Handle 50mm Spindle

White Inline Espag UPVC Window Handle Locking Universal 50mm Spindle Securistyle

With its sleek design and durable finish the Securistyle universal inline espag handle is suitable for right or left handed openings. The handle will automatically lock on closing, but by pressing its simple push to release button the window can be opened. For extra security the handle can be deadlocked using the supplied key.

These window handles are manufactured to industry standard measurements of 43mm centre to centre (the distance between screw centres), so you can rest assured that this handle will fit almost all espag and shoot-bolt systems currently available.

Features:

• 50mm Spindle Length
• Fits both left or right hand handles (non Handed)
• Industry standard spindle width of 7mm
• Industry standard 43mm screw hole centres
• Key locking button
• Complete with a key to deadlock your handle for enhanced security
• BBA Accredited
• Fixing Screws Not Included

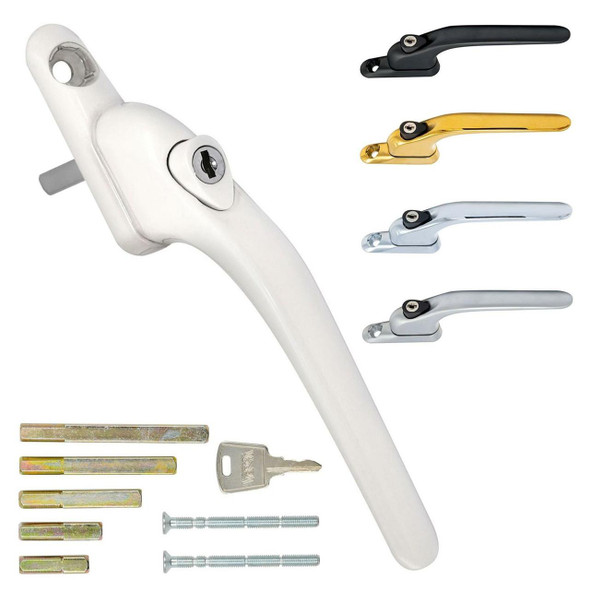

What's in the pack?

1 x Inline espag handle

1 x Screw coverplate

1 x Deadlock Key

Dimensions:

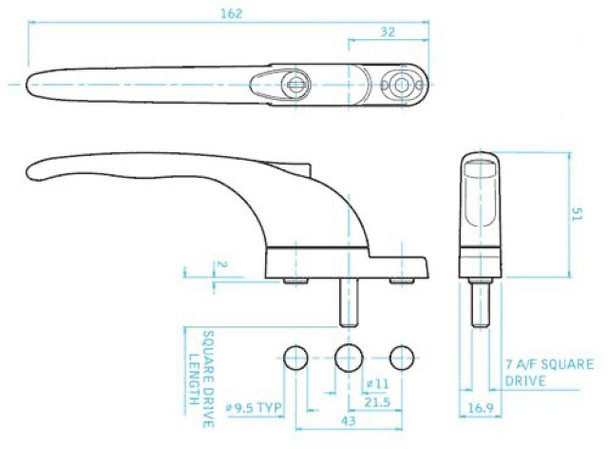

Please see size chart.

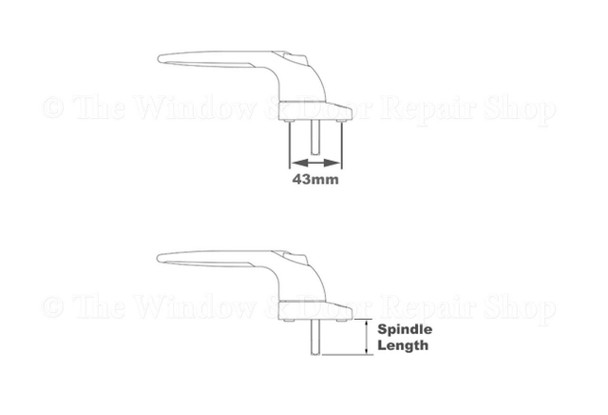

What do I need to check before ordering a handle? Please see diagram in gallery for reference.

Handle Screw Hole Fixing Centres: Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing: These handles are of the inline type, they will therefore, replace both left and right hand handles.

Spindle Length: This has a 7mm square spindle which is available in a 50mm length. The spindle is measures from the base of the handle to the end of the spindle. The spindle can be cut down to suit small spindle lengths.
