10 Pack Mila Smart Spindle uPVC Window Handle Universal Inline Espag Handle

10 x UPVC Universal Inline Window Handle Double Glazing Espag Lock Smart Spindle

The new 'Smart Spindle Espag Handle' is essentially the choice of five different spindle lengths from one handle. With 5 interchangeable spindles to choose from, and its ability to be used with PVCu, Timber and Aluminium, it can be made to fit nearly all windows; simply choose the spindle required and click into place. Its ergonomic design makes it a comfortable, easy to use handle for use with both the left and right hand. These handles include a key locking system that can be used for extra security. The distance between the screw holes are an industry standard 43mm, this will fit the majority of espagnolette and shootbolts in windows.

Features

• Supplied in a 10 pack
• 5 interchangeable spindles (9-55mm)
• Innovative "Click Fit" feature ensuring a correct fit every time
• Suitable for UPVC, aluminium and timber windows
• Ergonomic Design.
• Universal handing - it can be used for both left and right handed handles
• Given the 'Secured by Design' - The official UK Police Security Initiative

 Whats in the pack?

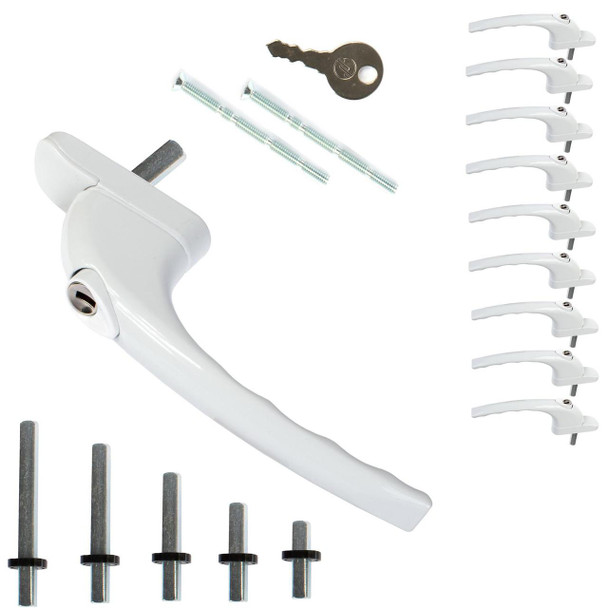

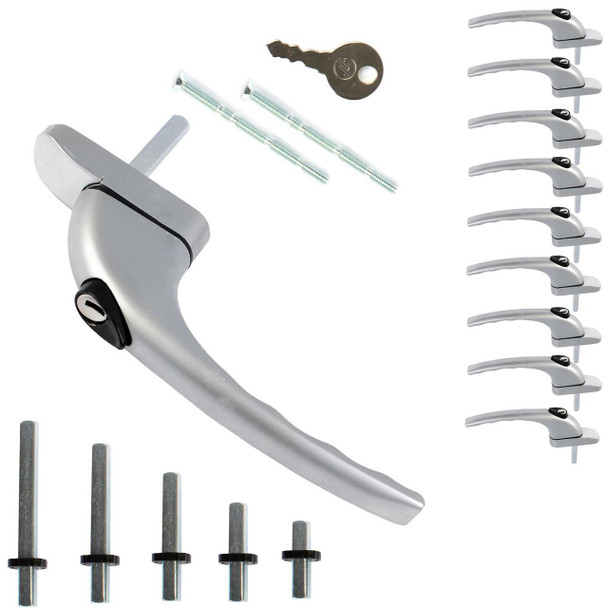

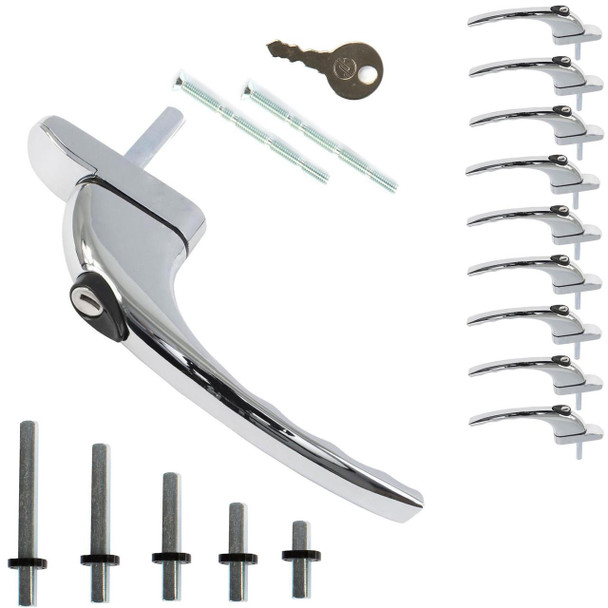

10 x Smart Spindle Espag Handles

10 of each 9, 15, 30, 40, 55mm Interchangeable spindles

10 x Screw cover caps

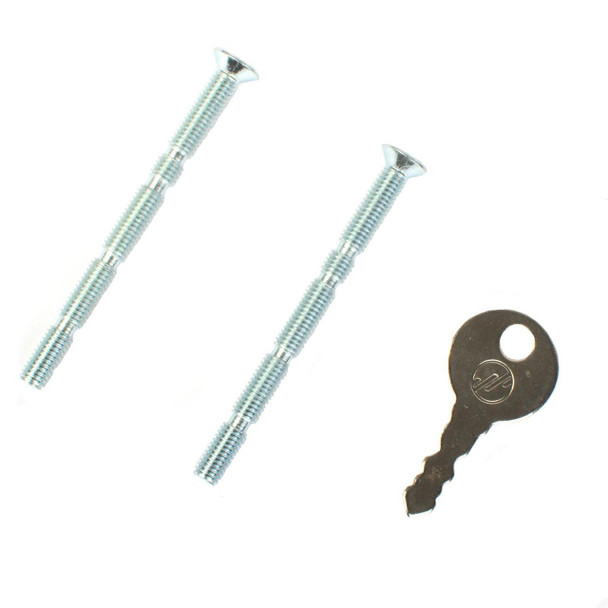

20 x Screws

10 x Keys

10 x Fitting Instructions

Dimensions:

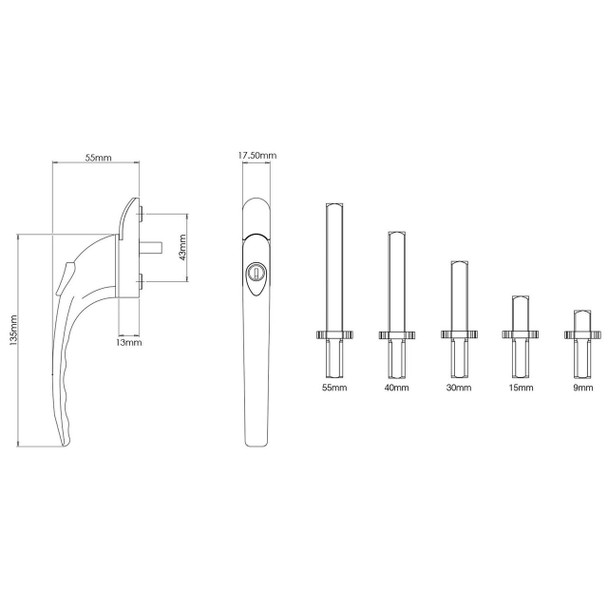

Please refer to the technical diagram in the image gallery.

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Spindle Length:

This handle comes with 5 interchangeable spindles. Included are a 9mm, 15mm, 30mm, 40mm and a 55mm spindle. Spindle length is measured from the base of the handle to the end of the spindle.

Spindle Diameter:

Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows

Handing:

These handles are of the inline type, therefore they will replace both left and right-hand handles.
