Description
Mila ProLinea BreakSafe Keyed Alike Pair Euro Cylinder — Anti-Snap uPVC Door Lock
Genuine Mila ProLinea BreakSafe keyed alike euro cylinder pair with anti-snap and anti-drill protection. Available in 25 sizes (30/30 to 50/50), brass or chrome.
Mila ProLinea BreakSafe Keyed Alike Pair Euro Cylinders solve one of the most common headaches for uPVC door owners — needing to replace two locks but wanting to carry just one key. This genuine Mila keyed alike pair gives you two cylinders that operate on identical keys, so a single key opens both your front and back door (or any two doors fitted with euro cylinders). The BreakSafe design adds serious security with a dedicated sacrificial snap line and anti-drill protection, helping defend against the most common methods used to attack uPVC door locks.
Manufactured by Mila to BS EN 1303:2015 Grade 6 with a classification of 16000C60, these 6-pin cylinders are a direct retro-fit upgrade for older or insecure barrels. Choose from 25 size combinations between 30/30mm and 50/50mm, in either polished brass or polished chrome to match your existing door furniture. Six keys are supplied as standard across the pair.
Key Benefits for uPVC Door Owners:
- One Key Opens Both Doors – Both cylinders in the pair are keyed alike, so a single key works in both locks. Ideal for front and back doors, side and main doors, or any pair of doors fitted with euro cylinders — no more juggling keyrings or hunting for the right one.
- Anti-Snap BreakSafe Protection – A dedicated sacrificial snap line is engineered into the cylinder so that if attacked, the cylinder breaks at a controlled point, leaving the locking mechanism intact and the door secured. A vital upgrade for any older uPVC door fitted with an unprotected cylinder.
- Anti-Drill Defence – Hardened anti-drill pins resist the second most common cylinder attack method, giving you layered security rather than relying on anti-snap alone.
- Tested to BS EN 1303:2015 Grade 6 – Independently tested to the highest grade of the European cylinder standard, with full classification 16000C60. The kind of certification many home insurance policies look for.
- Genuine Mila OEM Cylinders – Manufactured by Mila, a long-established UK hardware brand. Beware of aftermarket lookalikes — these are the real ProLinea BreakSafe cylinders supplied through proper trade channels.
- 25 Sizes Available, 30/30 to 50/50 – With sizes ranging from 30/30mm up to 50/50mm in 5mm increments, you can match your existing cylinder size exactly. No need to compromise on fit.
- Reversible Sizing – Cylinders can be fitted either way round, so a 45/50mm cylinder is interchangeable with a 50/45mm — making ordering simpler and stock easier to manage.
- Six Keys Included – Six keys come as standard with each pair, so the whole household has a key without needing immediate duplicates cut.
- Direct Replacement, No Door Modification – Retro-fit installation means no changes to your door or multipoint lock. Remove the old cylinder, slot the new one in, fix the retaining screw and you're done — most DIYers complete the swap in under 10 minutes per door.
- Suits All uPVC Doors with Euro Cylinders – Compatible with the vast majority of uPVC, composite and aluminium doors that use a standard euro profile cylinder and multipoint lock.
How to Measure Your Existing Euro Cylinder:
Getting the right size is the single most important step — an incorrectly sized cylinder will either stick out from the door (a security risk) or sit too far back to operate properly. Measure as follows:
- Step 1: Remove the retaining screw from the edge of your door (usually located on the lock face, below the latch).
- Step 2: Insert the key, turn slightly, and pull the cylinder out.
- Measurement A: Measure from one end of the cylinder to the centre of the screw hole.
- Measurement B: Measure from the other end to the centre of the screw hole.
- Example: If A = 45mm and B = 50mm, you need a 45/50mm cylinder.
Important: These cylinders are reversible — ordering a 45/50mm is the same as ordering a 50/45mm. Where both sides are equal (e.g. 40/40 or 50/50), only one sacrificial snap line is present, and this must be fitted to the external (outside) side of the door.
Product Specifications:
- Brand: Mila
- Product: ProLinea BreakSafe Keyed Alike Pair Euro Cylinder
- Pin Configuration: 6 pin
- Security Features: Anti-snap sacrificial line, anti-drill protection
- Standard: BS EN 1303:2015, Grade 6
- Classification: 16000C60
- Available Finishes: Polished Brass, Polished Chrome
- Available Sizes (mm): 30/30, 30/45, 35/35, 35/45, 35/50, 35/55, 40/40, 40/45, 40/50, 40/55, 40/60, 45/45, 45/50, 45/55, 50/50
- Sizing Note: Reversible — e.g. 45/50 = 50/45
- Keys Supplied: 6 keys per pair
- Compatibility: Most uPVC, composite and aluminium doors using a euro profile cylinder
- Door Type: Multipoint lock doors and standard euro cylinder doors
Please measure your existing cylinder carefully before ordering. The two figures (e.g. 45/50) refer to the distance from each end of the cylinder to the centre of the fixing screw hole — not the total length. If you are unsure which size you need, please contact us and we'll be happy to help.
Pro Tips:
Pro Tip: When fitting your new cylinder, the sacrificial snap line should always face the outside of your door. This is the side most likely to be attacked, and the BreakSafe design relies on the cylinder snapping cleanly at this point to defeat the attack — leaving the internal portion intact and your door still locked. Get this the wrong way round and you lose the main benefit of the anti-snap design.
Package Contents:
- 2 × Mila ProLinea BreakSafe 6-Pin Euro Cylinders (keyed alike pair, matching size and finish)

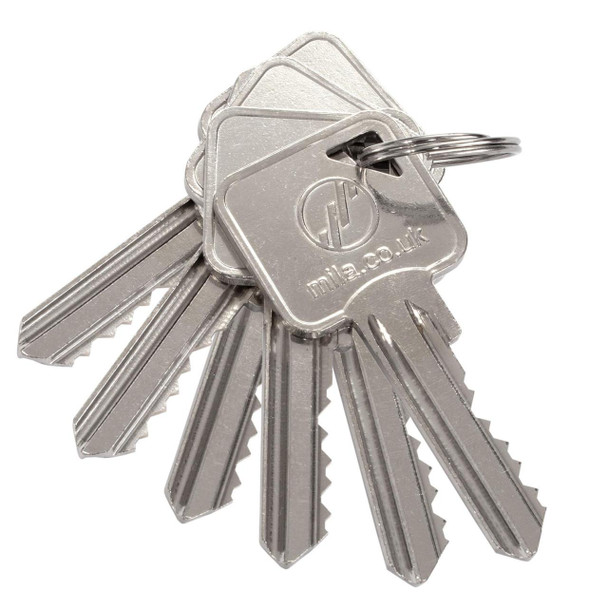

- 6 × Keys (keyed alike to operate both cylinders)

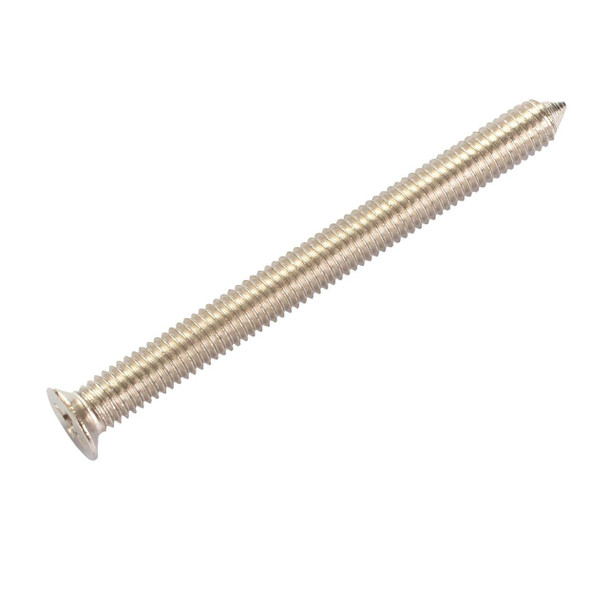

- 2 × Fixing Screws (one per cylinder)
Frequently Asked Questions:
What does "keyed alike" mean and will both cylinders really use the same key?
Yes — both cylinders in the pair are cut to the same key profile at the factory, so the same key opens both. This is ideal if you want one key to operate your front and back door, or any two doors. All 6 keys supplied with the pair will work in both cylinders.
How do I know which size cylinder I need?
Remove your existing cylinder by unscrewing the single retaining screw on the edge of the door (below the latch), then measure from each end of the cylinder to the centre of the screw hole. For example, if one side measures 45mm and the other 50mm, you need a 45/50mm cylinder. Cylinders are reversible, so 45/50 and 50/45 are the same product.
Will this fit my uPVC door?
These ProLinea BreakSafe cylinders fit virtually all uPVC, composite and aluminium doors that use a standard euro profile cylinder with a multipoint lock — which covers the vast majority of UK doors fitted in the last 30 years. As long as your existing cylinder is a euro profile (with the distinctive "figure 8" cross-section) and you order the correct size, this is a direct retro-fit.
Is this cylinder good enough for my home insurance?
The ProLinea BreakSafe is independently tested to BS EN 1303:2015 Grade 6 — the highest grade in the European standard — and includes anti-snap and anti-drill protection. Most UK home insurance policies require a cylinder with anti-snap protection, and these meet or exceed those requirements. Always check your specific policy wording if in doubt.
How hard is it to fit a new euro cylinder?
Very straightforward — most people complete the swap in around 10 minutes per door with just a screwdriver. Remove the retaining screw from the door edge, insert the key into the old cylinder and turn slightly, then pull the cylinder out. Slide the new cylinder in (snap line facing outwards), refit the retaining screw, and test the key. No specialist tools required.
Why Choose the Mila ProLinea BreakSafe Keyed Alike Pair?
Mila has been manufacturing window and door hardware for the UK market for decades, and the ProLinea BreakSafe range is their answer to the cylinder snapping epidemic that has affected uPVC doors fitted with older, unprotected barrels. With independent Grade 6 certification, dedicated anti-snap and anti-drill features, and the convenience of a keyed alike pair, this is a genuine security upgrade for any home — not a budget lookalike.
JCP Hardware has supplied uPVC door and window replacement parts to homeowners and the trade for over 30 years. Order with confidence — and if you're unsure about sizing or compatibility, get in touch before you buy and we'll help you get it right first time.
Specifications
Keys: |
6 Keys Included |
Security Rating: |
Standard Security |
