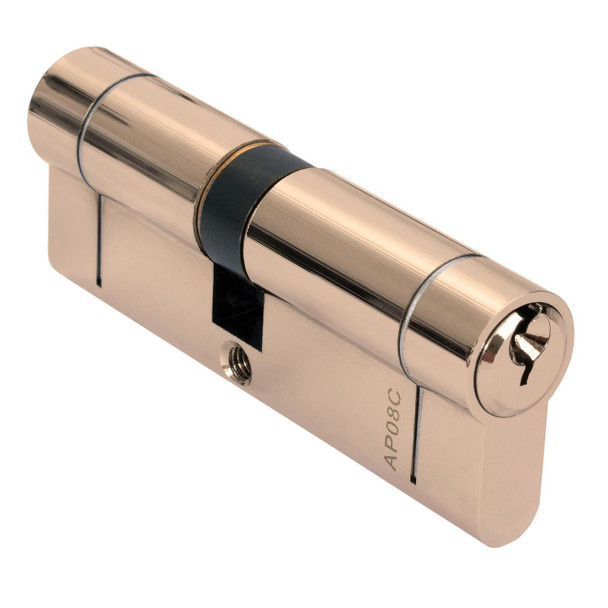

Mila ProLinea BreakSafe 6 Pin Euro Cylinder UPVC Front Door Lock
The Mila ProLinea BreakSafe 6 pin euro cylinder door lock brings you BreakSafe technology helping to secure your home and properties. The ProLinea BreakSafe cylinder from Mila is a retro-fit lock and does not only have a dedicated sacrificial line to combat cylinder snapping but has anti-drill protection too!
Our BreakSafe replacement door cylinder locks will fit all PVC-u doors with multi-point locks and can easily be fitted to upgrade older style doors.
Please note: Where a cylinder is of equal measurement on both sides e.g. 40/40 or 50/50 etc. then only one sacrificial line is present; this should be placed on the external side.
Features:
- Tested to BS EN 1303:2015, Grade 6
- Classification: 16000C60
- Dedicated sacrificial line and anti-drill
- 6 pins
- Suitable for all door types using a euro cylinder door lock

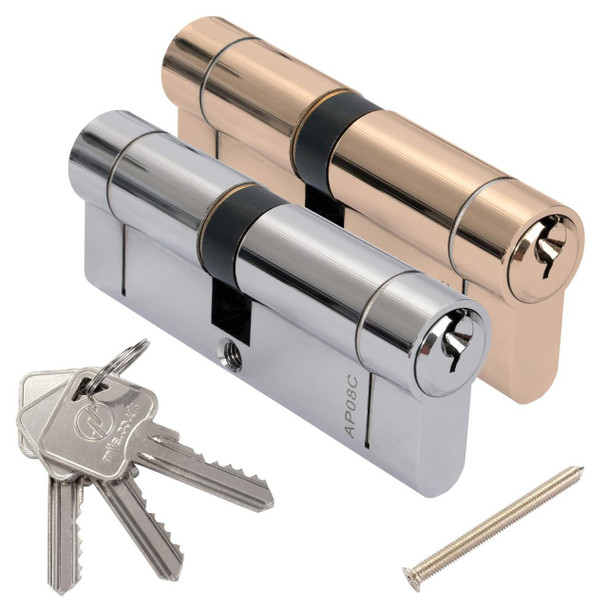

What's in the pack?
1 x Mila ProLinea Breaksafe 6 Pin Euro Cylinder

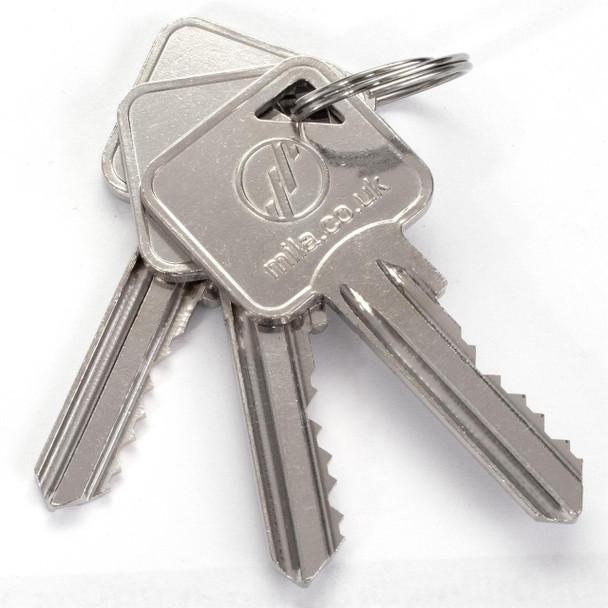

3 x Keys (as standard)
1 x Fixing Screw

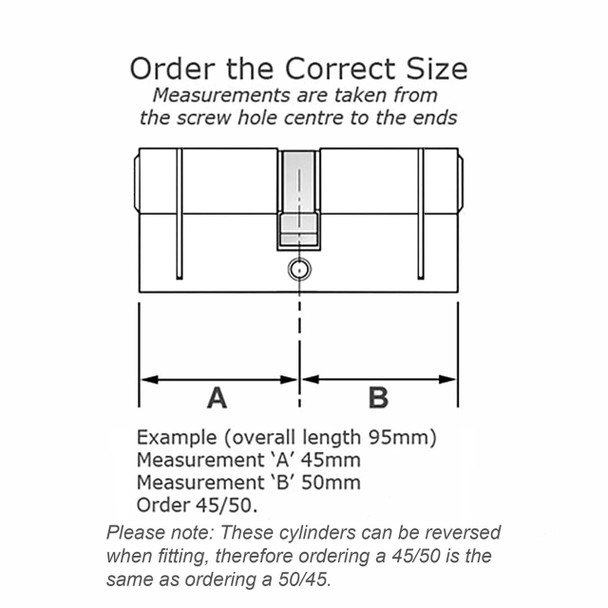

How do I measure a Mila ProLinea BreakSafe door cylinder?
The easiest way to measure your old euro cylinder lock is to remove it from your door.
Measurement A: Measure from one end to the centre of the screw hole. A = 45mm
Measurement B: Measure from the other end to the centre of the screw hole. B = 50mm
The cylinder size you would need to order in this example case is 45/50mm
Please note: These cylinders can be reversed when fitting therefore ordering a 45/50 cylinder is the same as ordering a 50/45 cylinder.
Specifications
Keys: |
3 Keys Included |
Security Rating: |
Standard Security |
