WRS Keyed Alike Euro Cylinder uPVC Door Lock Anti Pick Pair of Barrels Same Key

Our quality replacement keyed alike door cylinder locks will fit all PVC-u doors with multi-point locks and can easily be fitted to upgrade older style doors.

Made from solid brass and available in a Nickel or Brass finish.

Extra Keys.

If you require more than six keys then please message us before ordering.

Features:

• Profile Cylinders are made from solid brass
• Available in Nickel and Brass Finish
• 3 Keys per Cylinder - 6 in total (if extra keys are required please message us)
• Fixing Screw included
• Anti - Pick design
• Tested against EN1303:2005

What's in the pack?

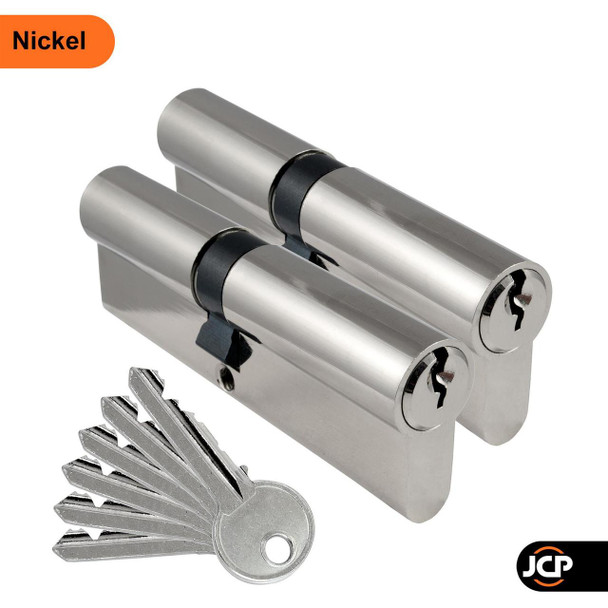

2 x Keyed Alike Standard Euro Profile Cylinder Barrel Lock

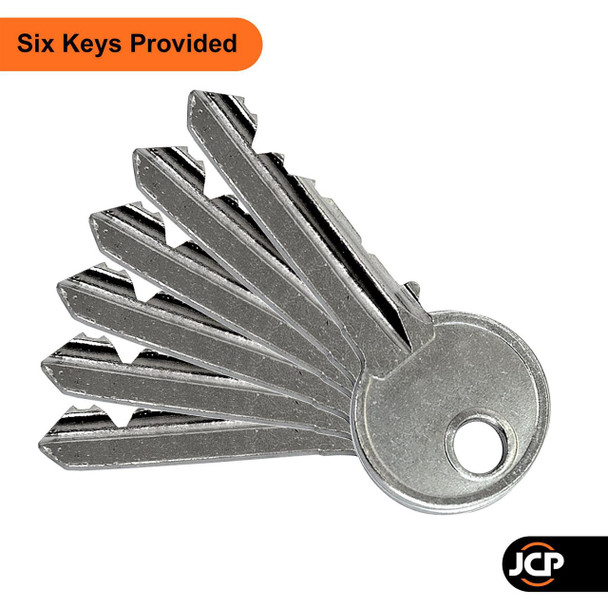

6 x Keys

2 x Fixing Screw

How do I measure a door cylinder?

• The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all). It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.
• Your new door cylinder should protrude by no more than 5mm from the handle back plates. It is most sensible to go for exactly the same size as you are replacing (unless your old cylinder was protruding excessively).
• Measurement A - Measure from one end of the cylinder to the middle of the central screw hole.
• Measurement B - Measure from the other end to the middle of the central screw hole.

Now check your measurements:

• Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.
• For example: If measurement (A) = 45mm and measurement (B) = 50mm the size required would be 45/50 cylinder (95mm in length). No further measurements are required

How far should a door cylinder protrude out of the door handle?

Your new door cylinder should protrude between 2mm and 5mm from the handle back plates, but due to the overall lengths of cylinders available this is not always possible. It is most sensible to go for exactly the same size as you are replacing (unless your old cylinder was protruding excessively).

How do I fit a new door cylinder?

• These easy to fit replacement cylinders can be fitted by a DIY novice in minutes!
• Open the door and unscrew the one fixing screw which is located on the lock faceplate (the strip of metal the full length of your door), in line with the bottom of the door cylinder.
• Put the key into one side whilst holding the other side firm.
• Turn the key and the cylinder should slide out, if it does not turn the key in the opposite direction and the cylinder should slide out.
• Take your new cylinder lock and insert the new key and turn it until the cam is inline with the body of the cylinder. Insert the new cylinder into position and replace the fixing screw.
• If the door cylinder is offset (i.e. 40/60, 30/50 etc) ensure the off set is protruding from the correct side. Check the operation of the lock before you close the door.
