Greenteq 1 Star Anti Snap Keyed Alike Euro Cylinder UPVC Front Door Lock

Greenteq 1 Star Anti Snap Keyed Alike Euro Cylinder Door Lock

The Greenteq 1 star cylinder is a premium quality cylinder that incorporates features tha provide protection against snapping, bumping, picking and drilling on each end of the cylinder.

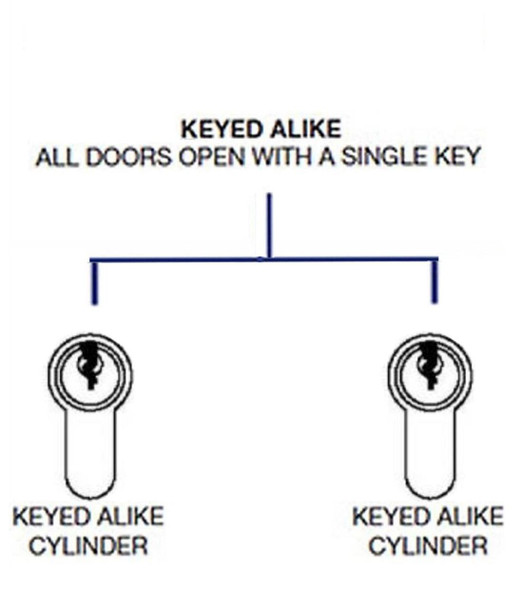

The cylinder is clearly marked on both ends with the 1 Star stamp, offering an added deterrent to would be invaders; if the cylinder is snapped they will still be unable to gain entry, but your key will still operate the cylinder. These cylinders are keyed alike. This means that locks in a set or 'suite' have the same key code, ie. any key fits any lock.

Features

• TS007:2014 approved with 1 star classification
• EN1303 classification 16000C52
• Both ends feature specially designed tumblers and hardened pins to protect against bumping, picking and drilling
• Sacrificial break points to hamper attempts to snap and remove the cylinder on both sides
• Anti Snap, Pick, Bump and Drill
• Keyed Alike, locks in a set or 'suite' have the same key code, ie. any key fits any lock.

What's in the Pack?

1 x Greenteq Q-Star Profile Cylinder Keyed Alike Pairs (2 Cylinders)

6 x Keys

4 x Fixing Screws

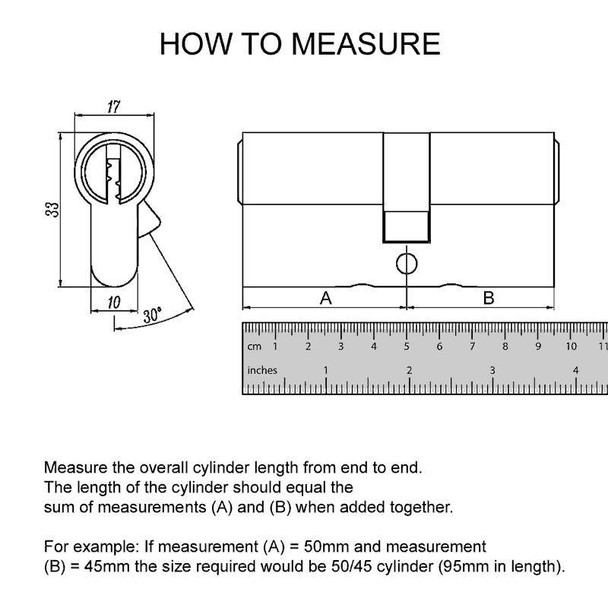

How do I measure a door cylinder?

The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all). It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.

Your new door cylinder should protrude by no more than 5mm from the handle back plates.

Measurement A - Measure from one end of the cylinder to the middle of the central screw hole.

Measurement B - Measure from the other end to the middle of the central screw hole.

Now check your measurements

Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.

For example: If measurement (A) = 45mm and measurement (B) = 50mm the size required would be 45/50 cylinder (95mm in length). No further measurements are required

Please note: These cylinders can be reversed when fitting therefore ordering a 45/50 cylinder is the same as ordering a 50/45 cylinder.
