GreenteQ Tilt and Turn uPVC Window Handle Non Locking 40mm Spindle

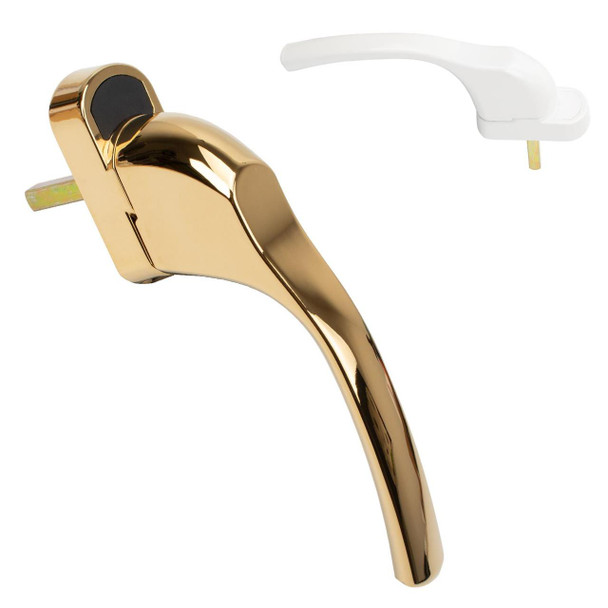

GreenteQ Alpha TBT Tilt and Turn Non Locking Window Handle - 3-Mode Security

Security and flexibility in one with three locking modes and built-in fall-safety protection.

The GreenteQ Alpha TBT Non Locking Handle has a 3-mode locking system including Tilt functionality for fall-safety protection. Suitable for uPVC, aluminium and timber windows with tilt and turn drive gear, this universal handle fits all major window frame materials. Part of the Alpha range, it matches casement windows and residential doors for a consistent look throughout your home.

With standard 43mm fixing centres and eurogroove compatibility, the Alpha TBT works with all leading tilt and turn hardware systems including AGB, Roto, Siegenia and Maco ranges. Available in two finishes and Secured by Design approved and Q-secure PREMIUM qualified when used with compatible systems.

Key Features:

• 3-Mode Locking System – Unlocked for full operation, Tilt function for ventilation with fall-safety, fully Locked for maximum security.
• Tilt Safe Fall-Safety Protection – 90-degree position allows safe tilt ventilation whilst preventing the window from opening fully. Ideal for upstairs rooms, children's bedrooms and high level windows.
• Secured by Design Approved – Officially approved by the UK police initiative, meets insurance company security standards.
• Universal Eurogroove – Standard 43mm fixing centres fits all eurogroove fit tilt and turn hardware systems including AGB, Roto, Siegenia and Maco ranges.
• Two Finishes – White and PVD Gold.

Product Details:

• Brand: GreenteQ
• Product: Tilt and Turn Window Non Locking Handle
• Locking System: 3-Mode Lock (Unlocked, Tilt function, Locked)
• Handle Type: TBT (Tilt Before Turn)
• Spindle: 7mm Square
• Spindle Length: 40mm
• Fixing Centres: 43mm (Standard Eurogroove)
• Works with: All eurogroove fit tilt and turn hardware including AGB, Roto, Siegenia and Maco (with a 40mm handle spindle)
• For: uPVC, Aluminium, Timber windows
• Secured by Design Approved
• Finishes: White (2QTT0061), PVD Gold (2QTT0062)

Dimensions:

• Handle Length: 169.79mm
• Base Width: 31.3mm
• Base Length: 64.1mm
• Screw Hole Centres: 43mm
• Spindle: 7mm square
• Spindle Length: 40mm

3-Mode Locking System Explained:

Mode 1: Tilt Function – Handle Position – Up (180° / 12 o’clock position)

• Rotate the handle upwards.
• This engages the tilt function: the top of the sash tilts inwards a small amount while the bottom stays fixed.
• Provides secure ventilation without the window fully opening.

Mode 2: Unlocked – Handle Position – Horizontal (90° / 3 o’clock position)

• Turn the handle to the side so it is horizontal.
• This is the turn/open position: the sash swings inwards like a door on its side hinges.
• Useful for full ventilation or cleaning access.

Mode 3: Locked – Handle Position – Down (0° / 6 o’clock position)

• The handle is pointing straight down.
• This is the closed position: the gearbox in the window mechanism pulls all the locking points in tight, so the sash is fully sealed shut.

Pro Tips:

Pro Tip: Use the 90-degree Tilt Safe position for everyday ventilation in upstairs rooms. This provides fresh air whilst maintaining complete fall-safety protection—especially important in homes with children or elderly residents. Installers should demonstrate all three modes to end users to ensure the handle’s safety features are properly understood and used.

Contents:

• 1 × GreenteQ Alpha TBT Tilt and Turn Non Locking Handle Spindle (40mm length) with 7mm Square Spindle
• 1 × Backplate screw cover cap
• 2 × Fixing Screws

FAQ:

Will this handle fit my tilt and turn windows?

The Alpha TBT has standard 43mm fixing centres and eurogroove compatibility, so it will fit all eurogroove fit systems including AGB, Roto, Siegenia and Maco hardware (with a 40mm handle spindle). It works with uPVC, aluminium and timber windows with tilt and turn drive gear. The 7mm square spindle with 40mm length is industry standard. Simply measure your current handle’s screw hole centres and spindle length.

How do I set up the handle for turn-first windows?

For turn-first operation, invert the backplate during installation. This changes the locking behaviour so the handle must be turned to full 180-degree position to unlock. If your current handle turns down first before tilting, use the inverted backplate configuration.

Which finish should I choose for my window frames?

For white uPVC frames, choose White. PVD Gold is elegant and perfect for traditional properties.

Why GreenteQ Alpha TBT?

The GreenteQ Alpha TBT is intelligent security and practical functionality. The 3-mode locking system adapts to your daily needs—from safe ventilation to maximum security—whilst the Secured by Design approval and Q-secure PREMIUM qualification prove its professional grade. Available in two finishes with universal compatibility across uPVC, aluminium and timber windows, the Alpha TBT gives you peace of mind for your family and property for years to come.
