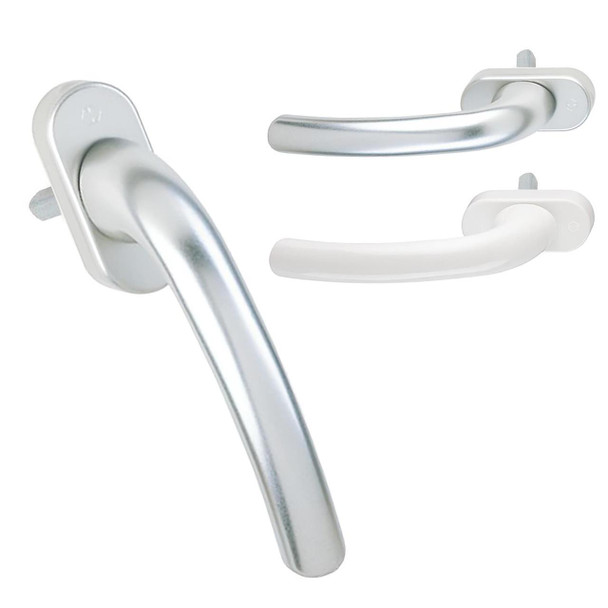

Hoppe Tokyo Tilt & Turn uPVC Window Handle Non Locking 32mm Spindle

Hoppe Tilt and Turn Window Handle Non Locking Tokyo

The Hoppe Tokyo is designed with clean modern lines that are both pleasing to the eye and ergonomic for the hand. The Hoppe non-locking window handle, the ideal replacement handle for tilt-and-turn windows; the 32mm spindle can be easily trimmed with a junior hacksaw to fit the length required.

HOPPE are Europe's leading manufacturer of door and window handles and one of the UK's leading suppliers of high quality architectural ironmongery.

Features:

• Stop position: 90°
• Aluminium swivel cover plate to conceal screw fixings
• Easy to fit by removing/reinstalling 2 x screws
• Tested to DIN EN 13126-3: 23/180-0150/03/C1
• Exceptionally high corrosion resistance EN 1670, grade 5
• Material: Aluminium

What's in the pack?

1 x Hoppe Tokyo Tilt & Turn Handle Non Locking

2 x M5 Fixing screws

Dimensions:

• Screw Hole Fixing Centres: 43mm
• Spindle Width: 7mm
• Spindle length: 32 mm
• Fixing Lugs Diameter: 10mm

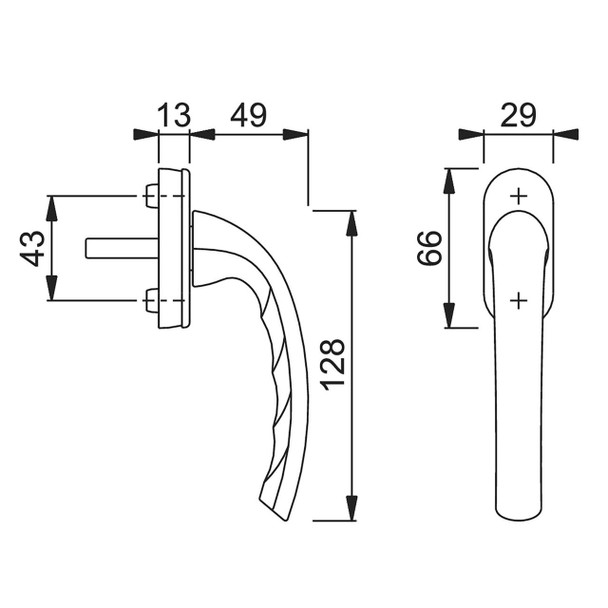

Please see technical diagram in gallery.

What do I need to check before ordering a handle?

Handle Screw Hole Fixing Centres:

Fortunately most tilt and turn handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Spindle Length:

The spindle is measured from the base of the handle to the end of the spindle.

How to fit a Tilt and Turn handle:

1. Most Tilt and Turn handles can be fitted without too much difficulty. The fixing screws will be obscured with either cover caps or, in most cases, a cover plate.
2. First turn the handle horizontally 90° then remove cover caps with a sharp object or slightly lift and turn the cover plate to reveal the screw fixing positions.
3. With a screwdriver unfasten the screws to remove the handle. Measure the old handle spindle against your new handle and using a hacksaw cut the spindle of your new handle to the same length.
4. Keeping the new handle in the same position as the old one (90° Horizontal) simply refit the new handle and tighten the screws, returning the handle downwards into the locked position once more.
