greenteQ Alpha Cockspur UPVC Window Handle

GreenteQ Alpha Cockspur UPVC Window Handle 12mm or 21mm

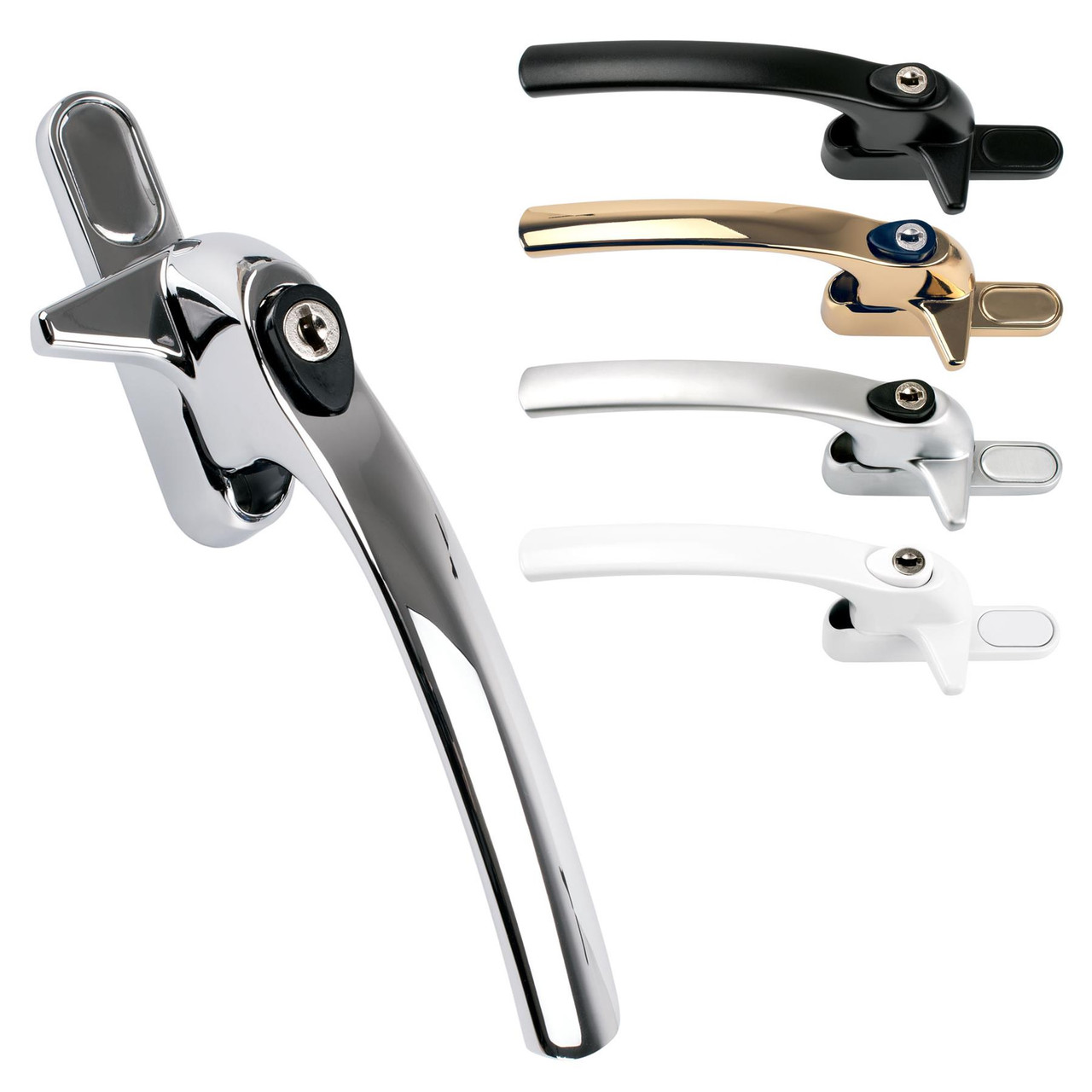

The GreenteQ Alpha cockspur window handle is modern in style and comes in two heights 12mm for Aluminium installations and 21mm for UPVC window systems. The Alpha cockspur handles are a great low cost option where multi-point locking is not required. The attractive contemporary design enables repair and maintenance to give old installations a smart new look, simply by replacing the existing old-fashioned cockspur handles.

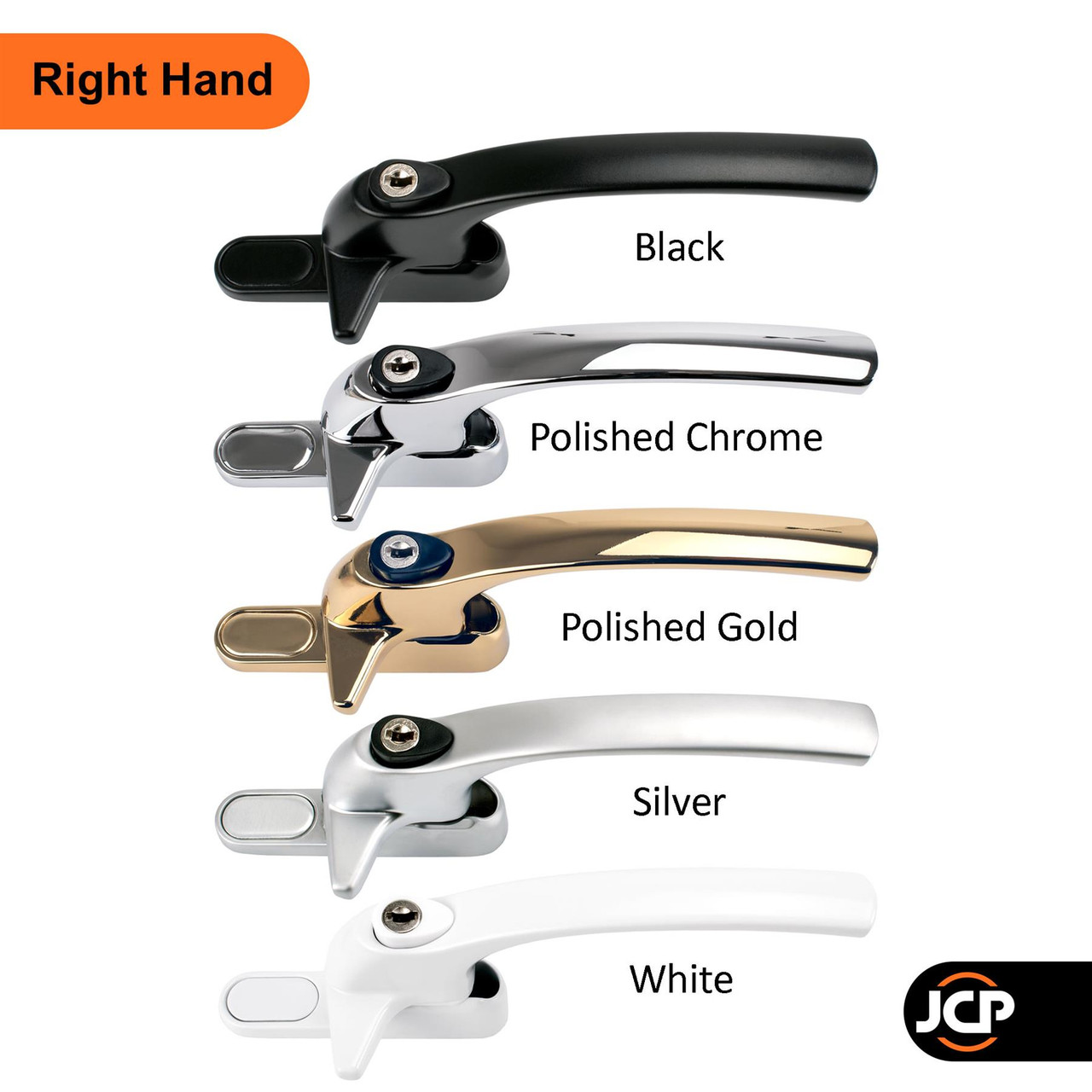

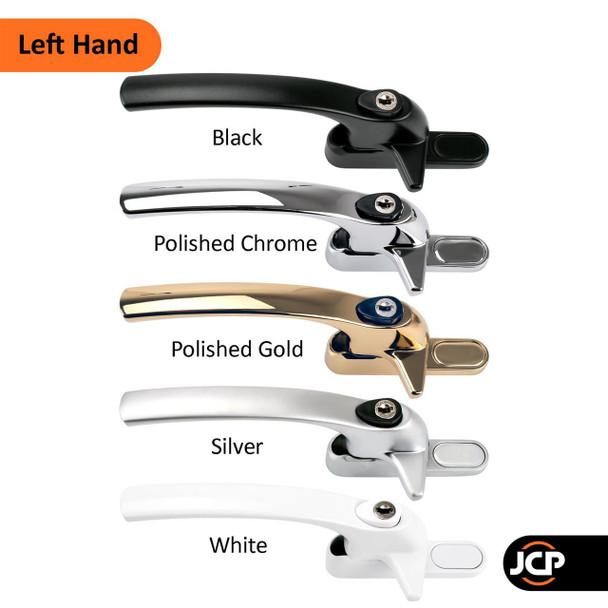

Available as Left or Right Hand

Features:

• Contoured handle for ease of use
• Push to release locking mechanism
• 90° stop/click location washer

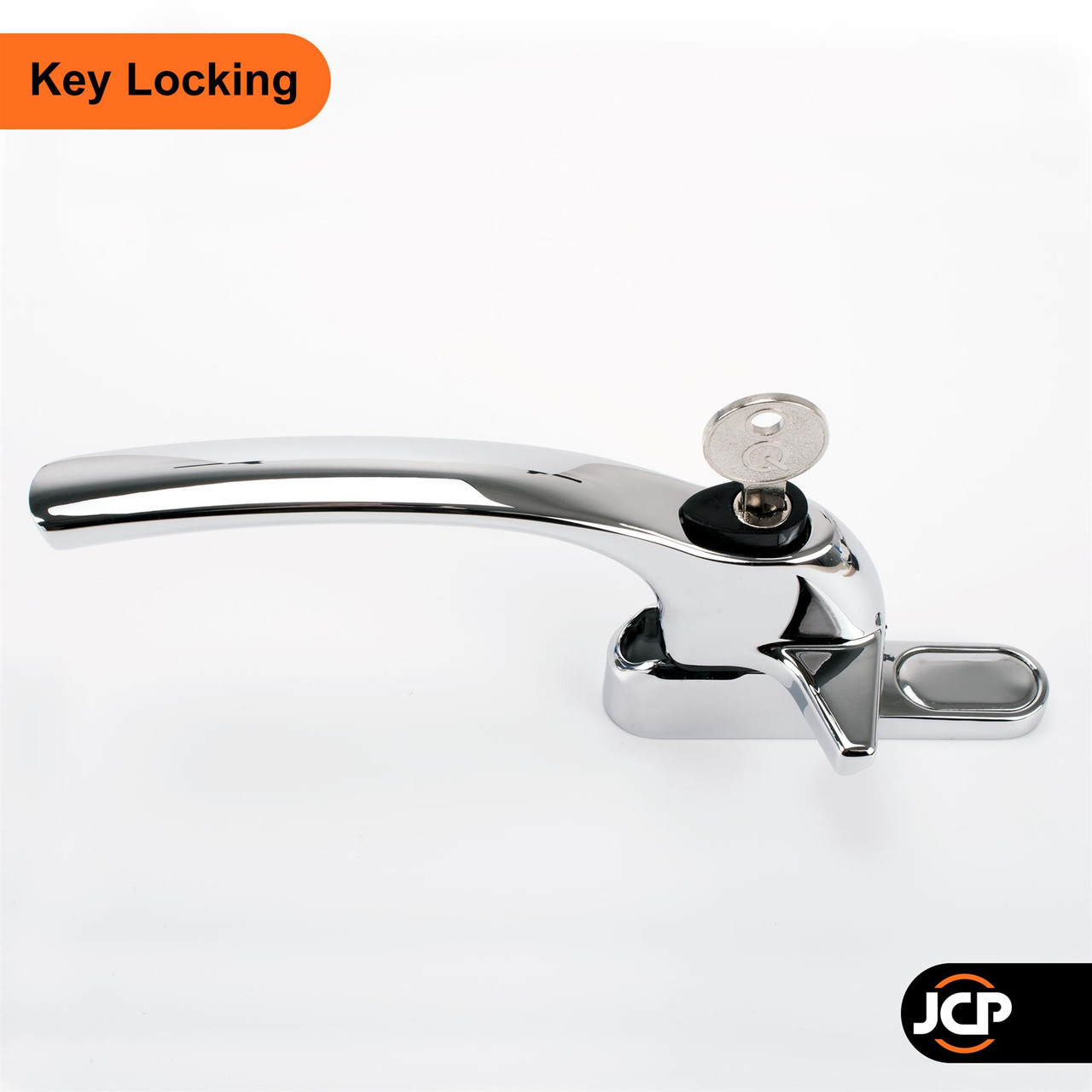

• Supplied with a key, and cover cap as standard
• Material: Black and White - Zinc
• Material: Polished Chrome, Polished Gold and Silver - Aluminium
• Suited colours to match the rest of the Greenteq Alpha range
• 10 Year GreenteQ manufacturers guarantee

What's in the Pack?

1x GreenteQ Alpha Cockspur Window Handle (Left or Right-Handed)

1x Cap cover

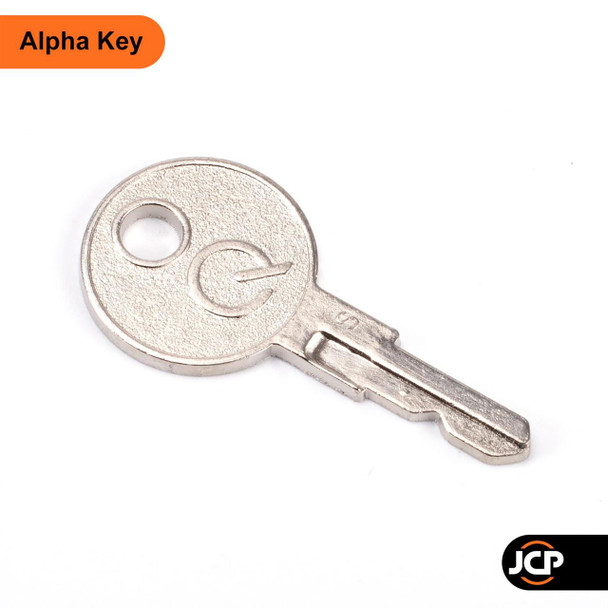

1x Key

Dimensions:

• Handle length: 167mm
• Handle width: 15.6mm
• Handle height: 53.7mm (12mm Backset), 62mm (21mm Backset)

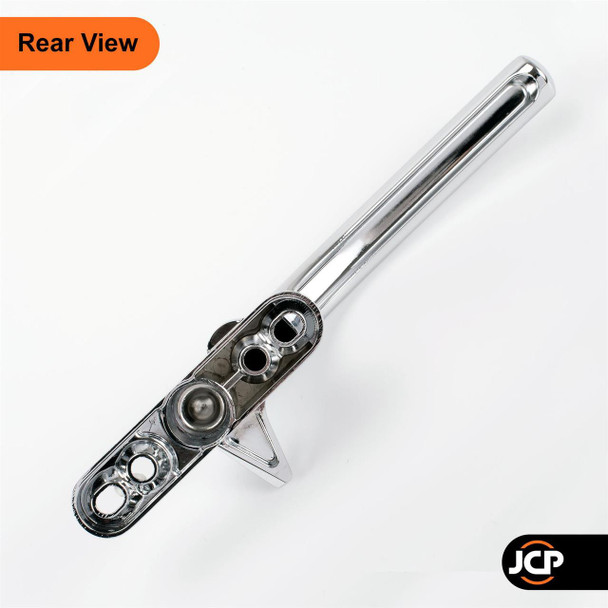

• Distance between screw hole centres: 38mm, 60mm

Please refer to the diagram in the gallery.

Do I need a left or a right-hand handle?

First check the hand of your handle, for a top hung window that opens out - if the long part of the handle points to the left and the little spur points down you will need a left hand, if the long part of the handle points to the right and the little spur points down you will need a right hand. For side opening windows - if the long part of the handle points down and the little spur points to the right then you need a left hand handle, conversely if the long part of the handle points down and the little spur points to the left then you need a right-hand handle.

A diagram is available in the gallery.

How to remove your old cockspur window handle:

• First measure your old backset: you will need to measure from the baseplate (the part that sits flat against the window) to the underside of the handle nose; this will help you select the correct packer to fit to your new handle before installation.
• Remove the screw cover cap to reveal two screws, unscrew and remove.
• Move the handle to the open position which will show another two screws, remove as before.
• Once all four screws have been removed the handle should come off.

How to fit your new cockspur window handle:

• Line up the new handle with the old screw holes.
• Before fitting the handle to the window, ensure that the correct type and length of screw is used to avoid penetrating the glazing cavity.
• Put the screws in and secure into place.
• Once the screws at the top and bottom of the base are fitted put the screw cover (if applicable) over the screw hole at the top of the base.
