Description

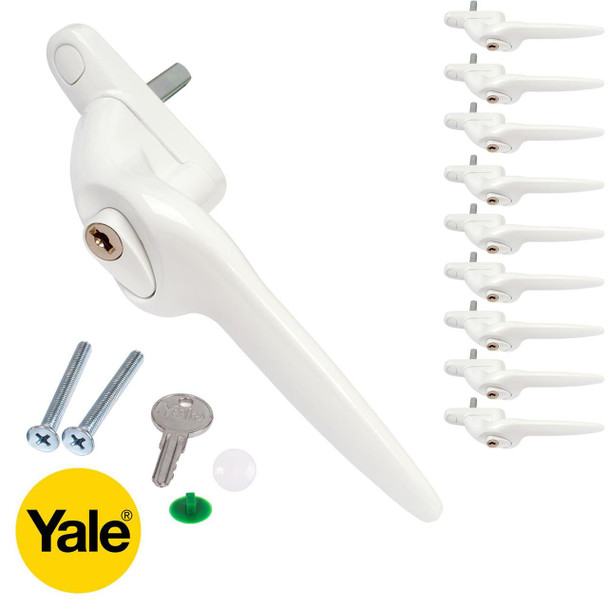

10 Pack Yale Quartus Cranked Espag UPVC Window Handle
With its aesthetically pleasing design and reliability from Yale the Quartus handle can be deadlocked using your Yale key. These window handles are manufactured to industry standard measurements of 43mm centre to centre (the distance between screw centres), so you can rest assured in the knowledge that this handle will fit almost all espag and shoot-bolt systems currently available.
The Quartus handle has been designed, developed and tested in the UK to Yale's precise standards and high-performance security.

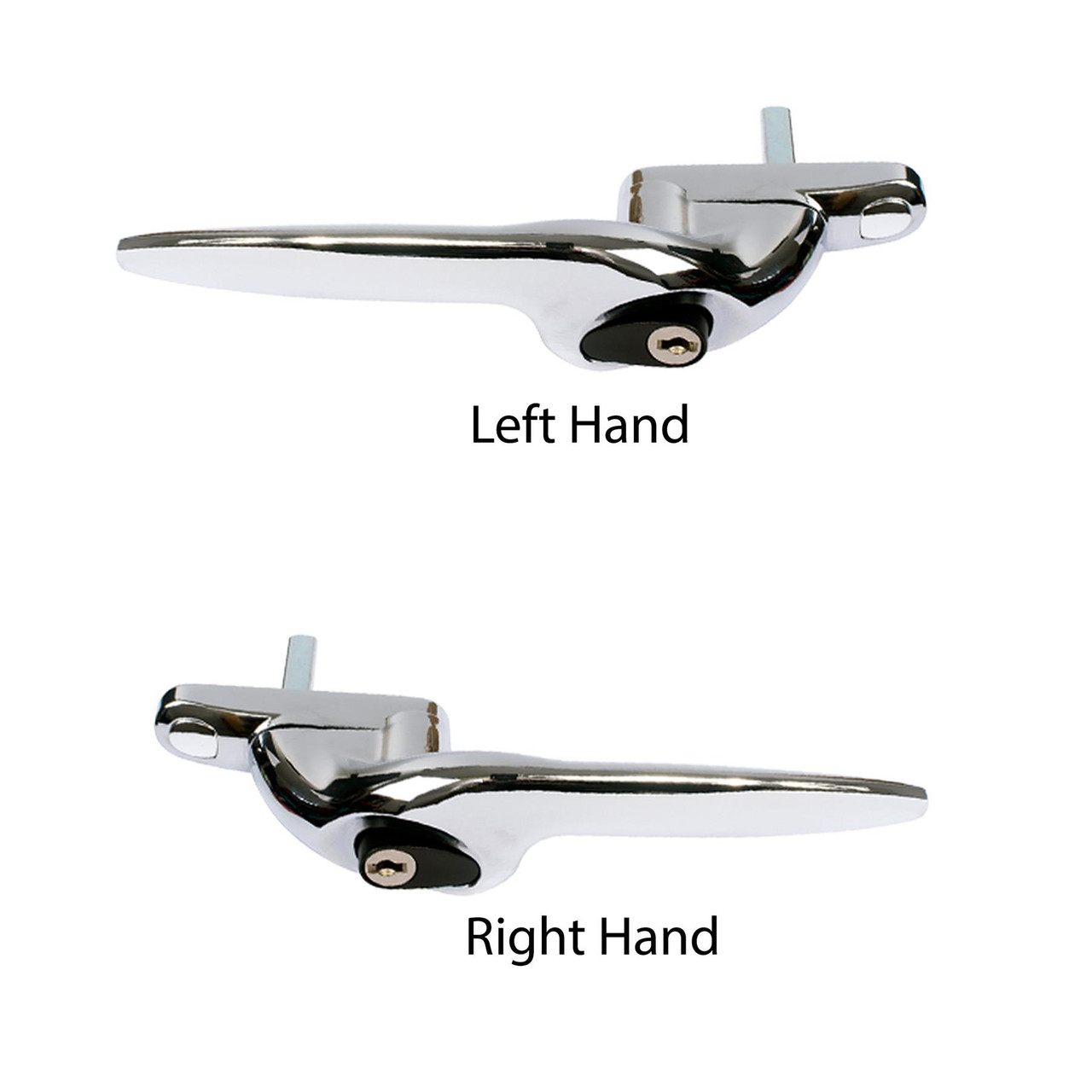

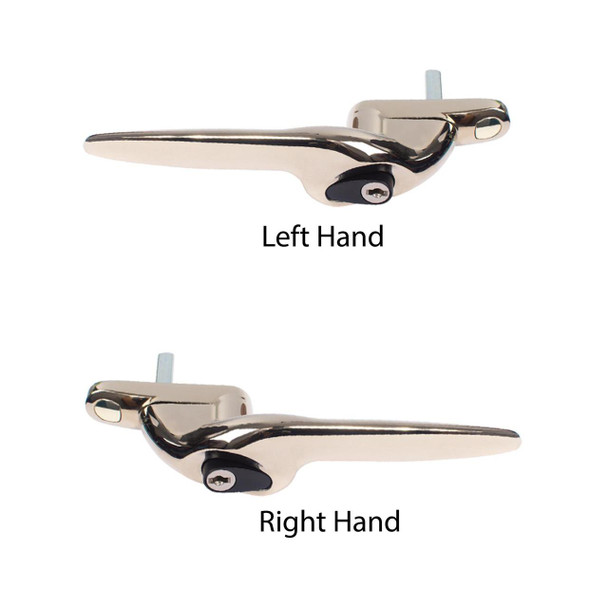

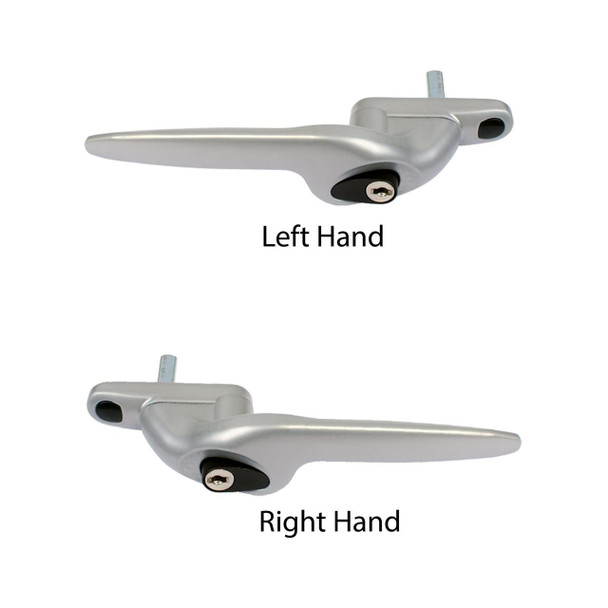

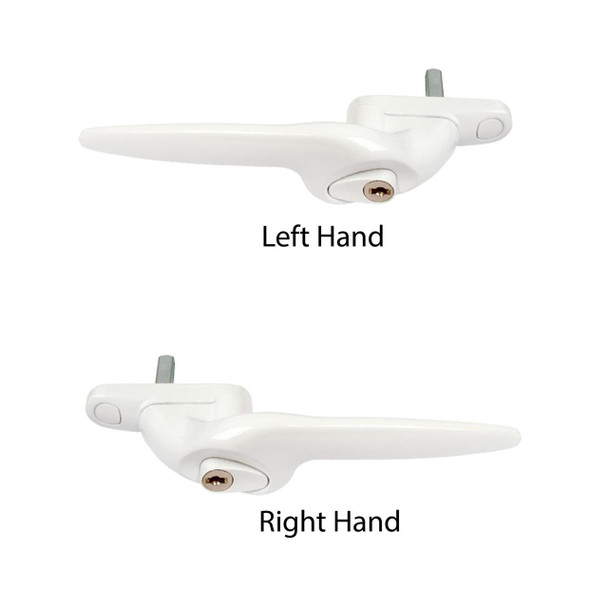

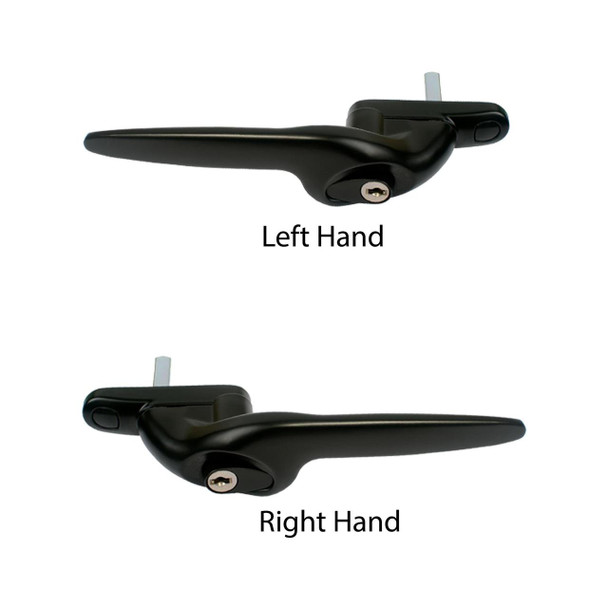

Available in left or right hand.
Features:

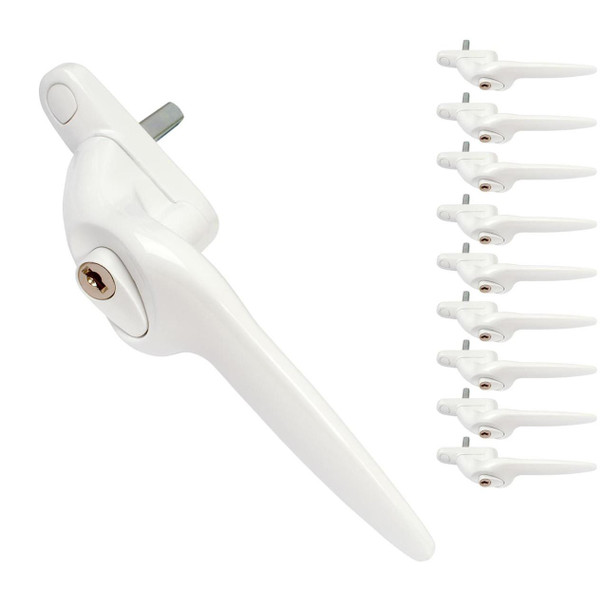

- Sold in a 10 pack
- Ergonomic lever
- Aesthetically pleasing as part of the suited range of window hardware
- Push to unlatch Yale branded mechanism
- Fits both espag & shootbolt systems
- Complete with a Yale key to deadlock your handle for enhanced security and fixing screws
- Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
- Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
What's in the pack?
10 x Yale Quartus cranked espag handle (choice of left or right hand)
20 x Fixing screws
10 x Screw coverplate
10 x Deadlock key
20 x Key coverplates (Green and black converts to non locking).
Dimensions:
- Length: 160.2mm
- Height: 49mm
- Screw Hole Centres: 43mm
- Spindle Width: 7mm Square

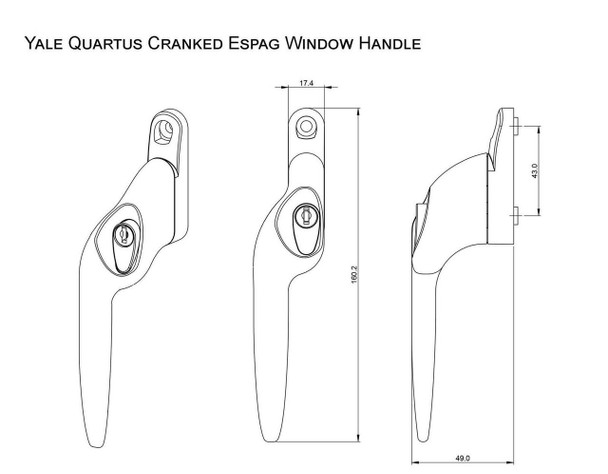

Please see technical diagram in gallery.
What do I need to check before ordering a handle?
Handle Screw Hole Fixing Centres:
Fortunately most espag handles are made to industry standards with 43mm screw hole centres, therefore it really does not matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm then these handles will fit.
Handing:

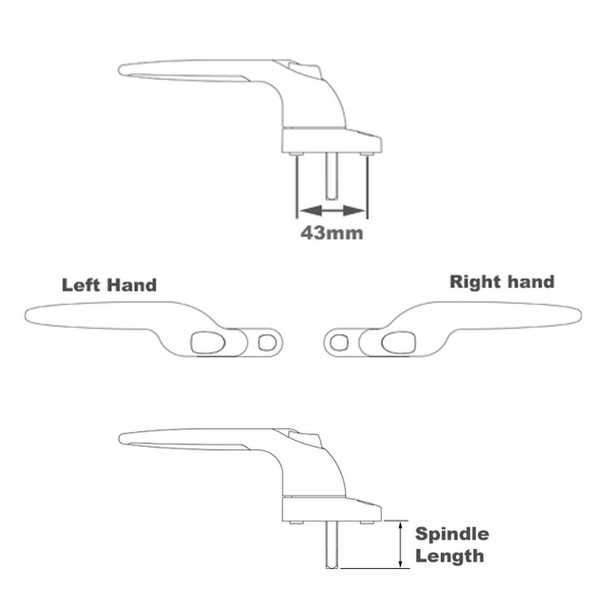

These handles are of the offset/cranked type, therefore you will need to select the correct handing when ordering. (Please see guide in gallery).
Spindle Length:
The handle has a 7mm square spindle which is available in different lengths. The spindle is measured from the base of the handle to the end of the spindle. (Please see guide in gallery).
Spindle Width:
Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
Specifications
Handing: |
Left Hand or Right Hand Handle |
Key Locking: |
Yes |
Pack Size: |
10 Handles |
Spindle: |
7mm |
Type: |
Cranked |
