Yale Quartus Inline Espag Window Handle

No yet Review(s) Write a Review
Key Locking:
Size Chart

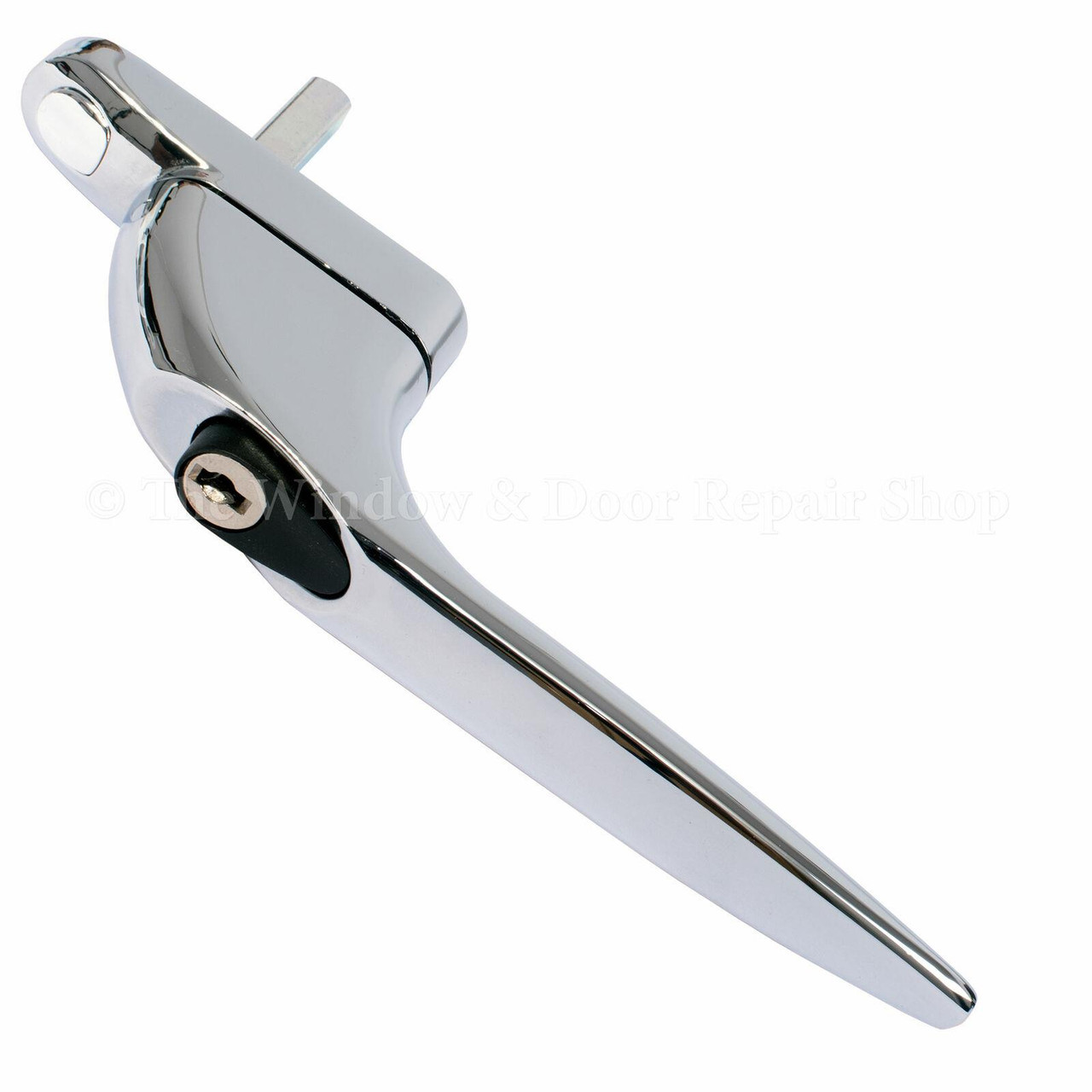

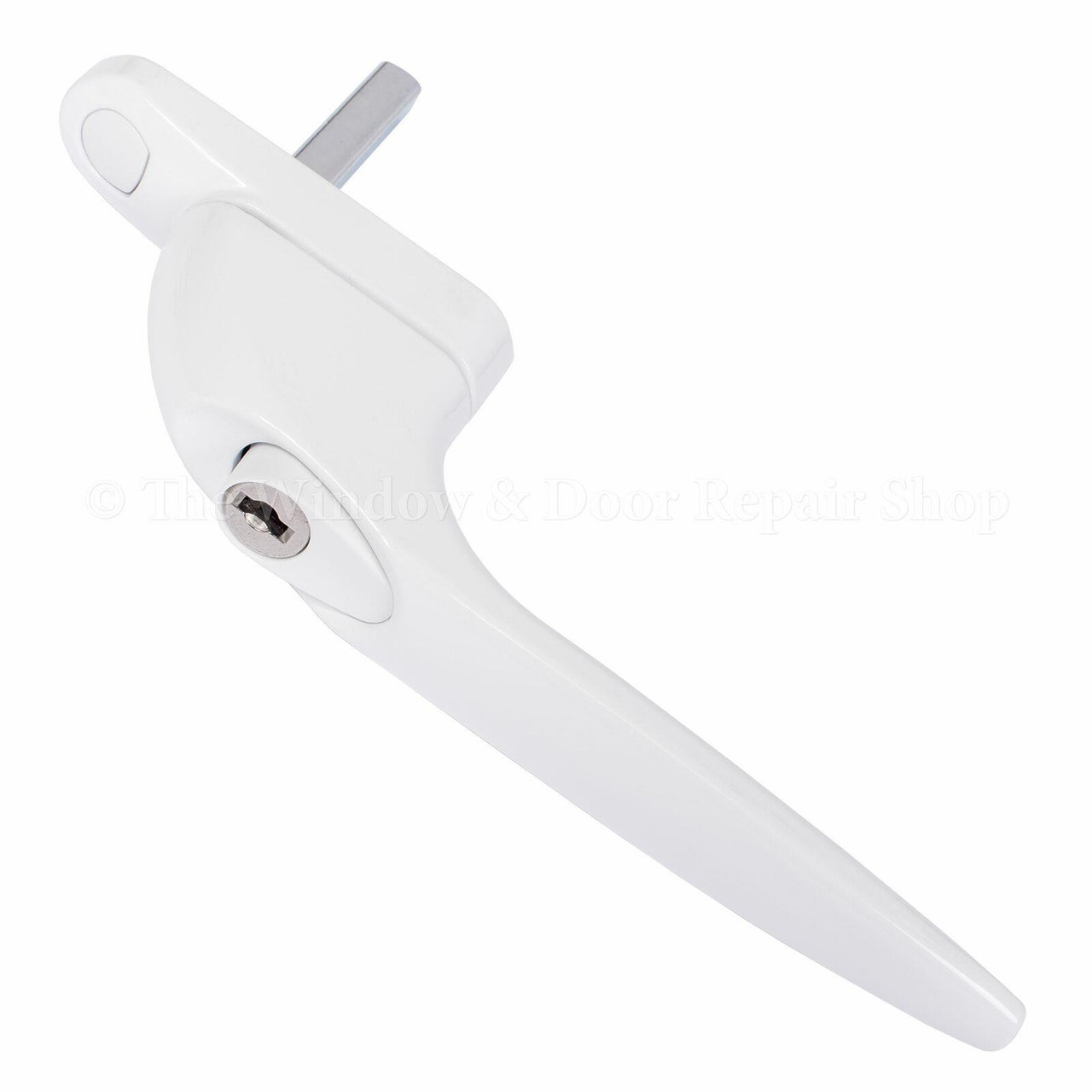

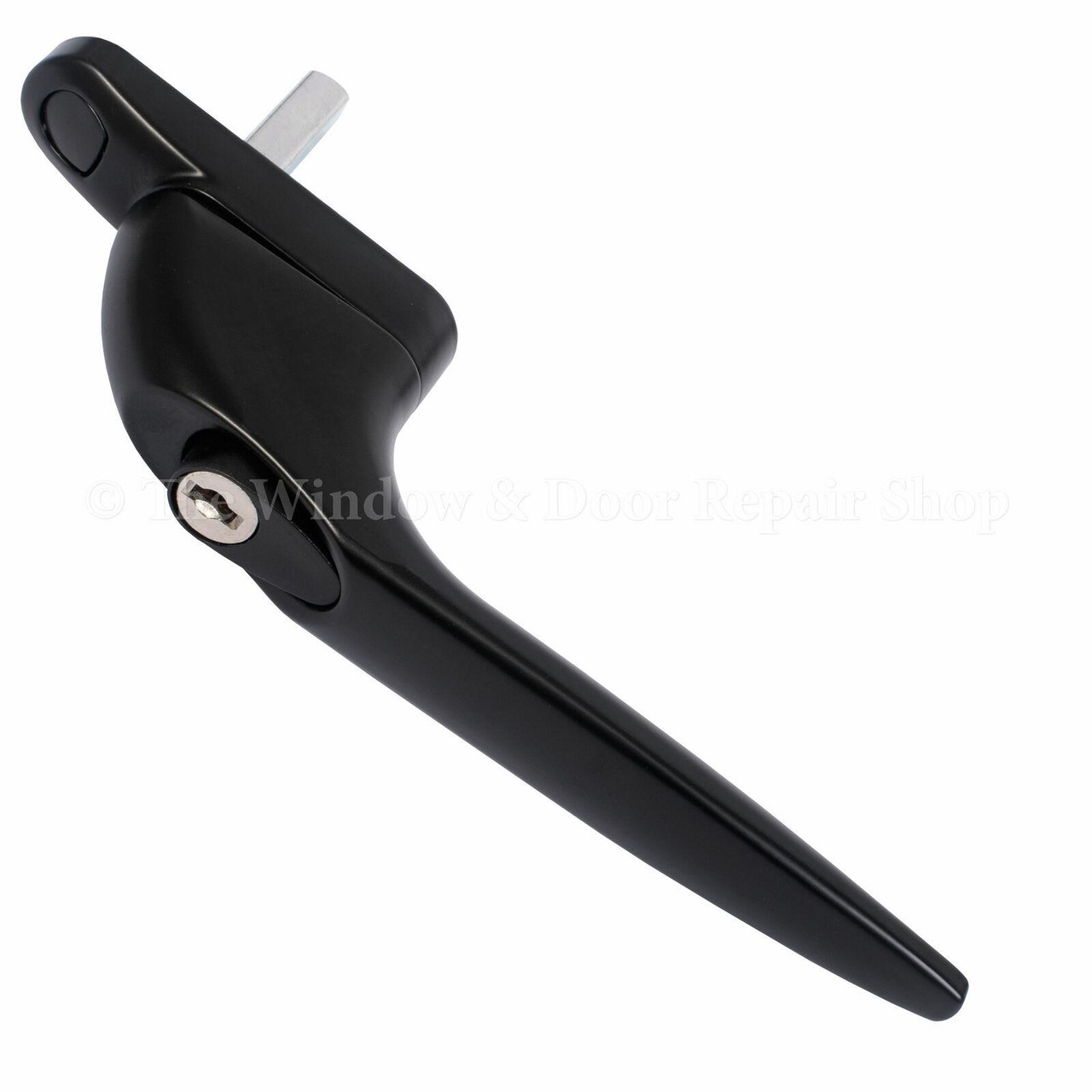

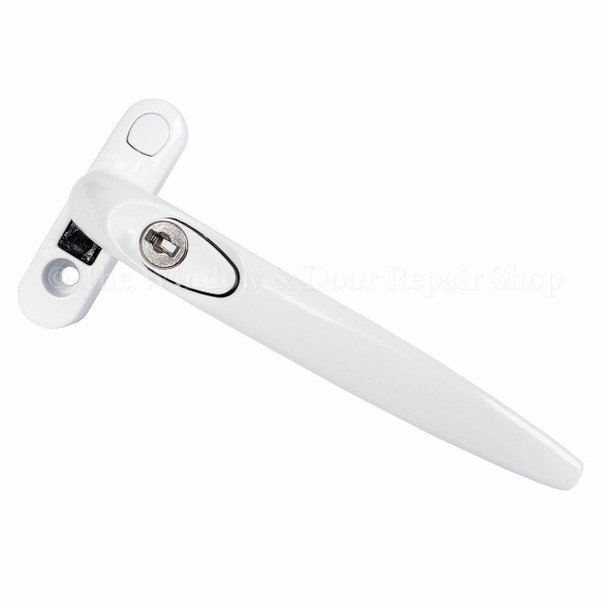

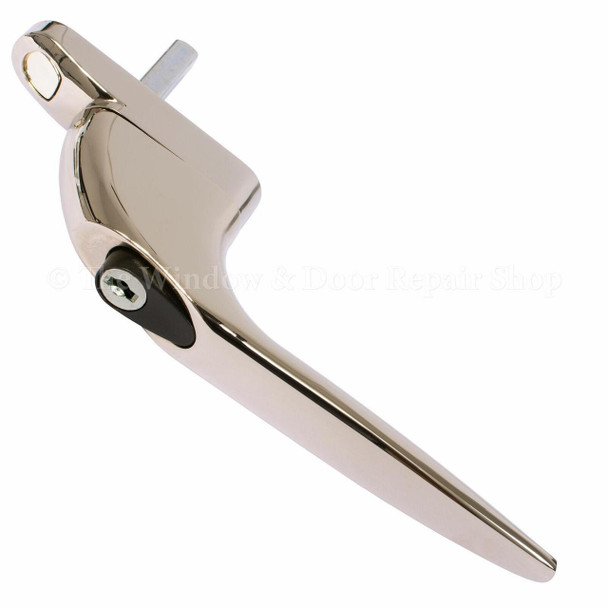

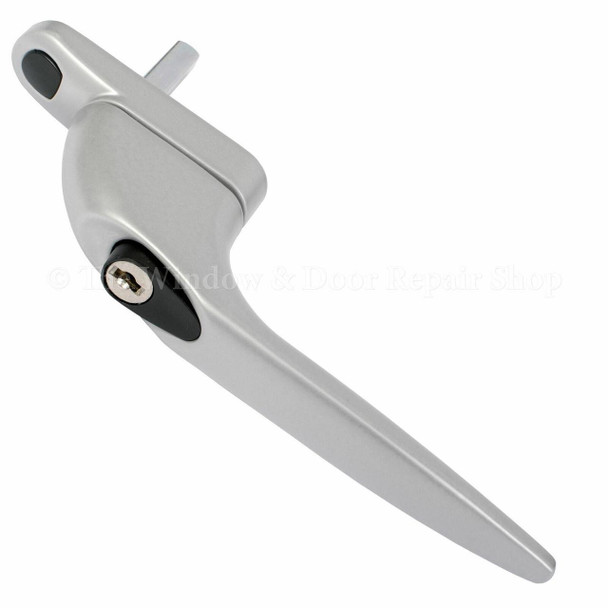

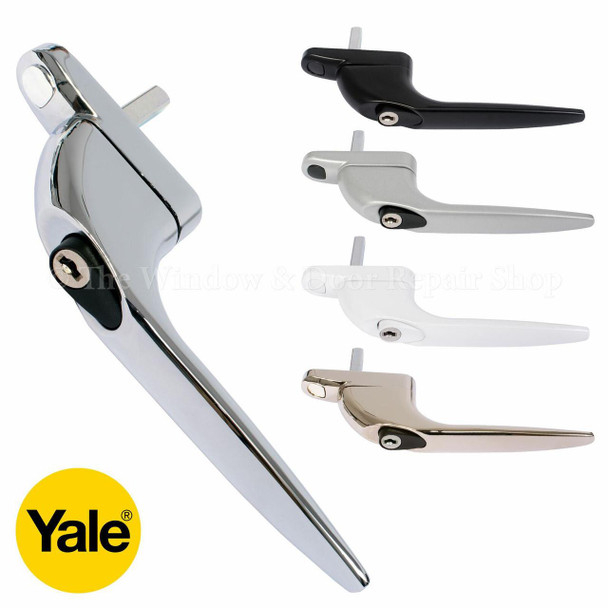

Inline Espag UPVC Window Handle Yale Quartus Universal Double Glazing Key Locking

With its ergonomic design and stunning finishes, the Yale Quartus universal inline espag handle is suitable for right or left-handed openings. The handle will automatically lock on closing, but by pressing its Yale branded mechanism to release the button, the window can be opened. For extra security, the handle can be deadlocked using the supplied Yale key.

These window handles are manufactured to industry standard measurements of 43mm centre to centre (the distance between screw centres). Included with every Yale Quartus handle is a push-fit cover, to make the handle non-locking.

The handle has been developed and tested in the UK to Yale's precise standards and high-performance security.


  • Fits both left or right-hand handles (non-handed)
  • Ergonomic lever
  • Industry-standard 43mm screw hole centres
  • Key locking button
  • Complete with a Yale key to deadlock your handle for enhanced security and fixing screws.
  • Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles

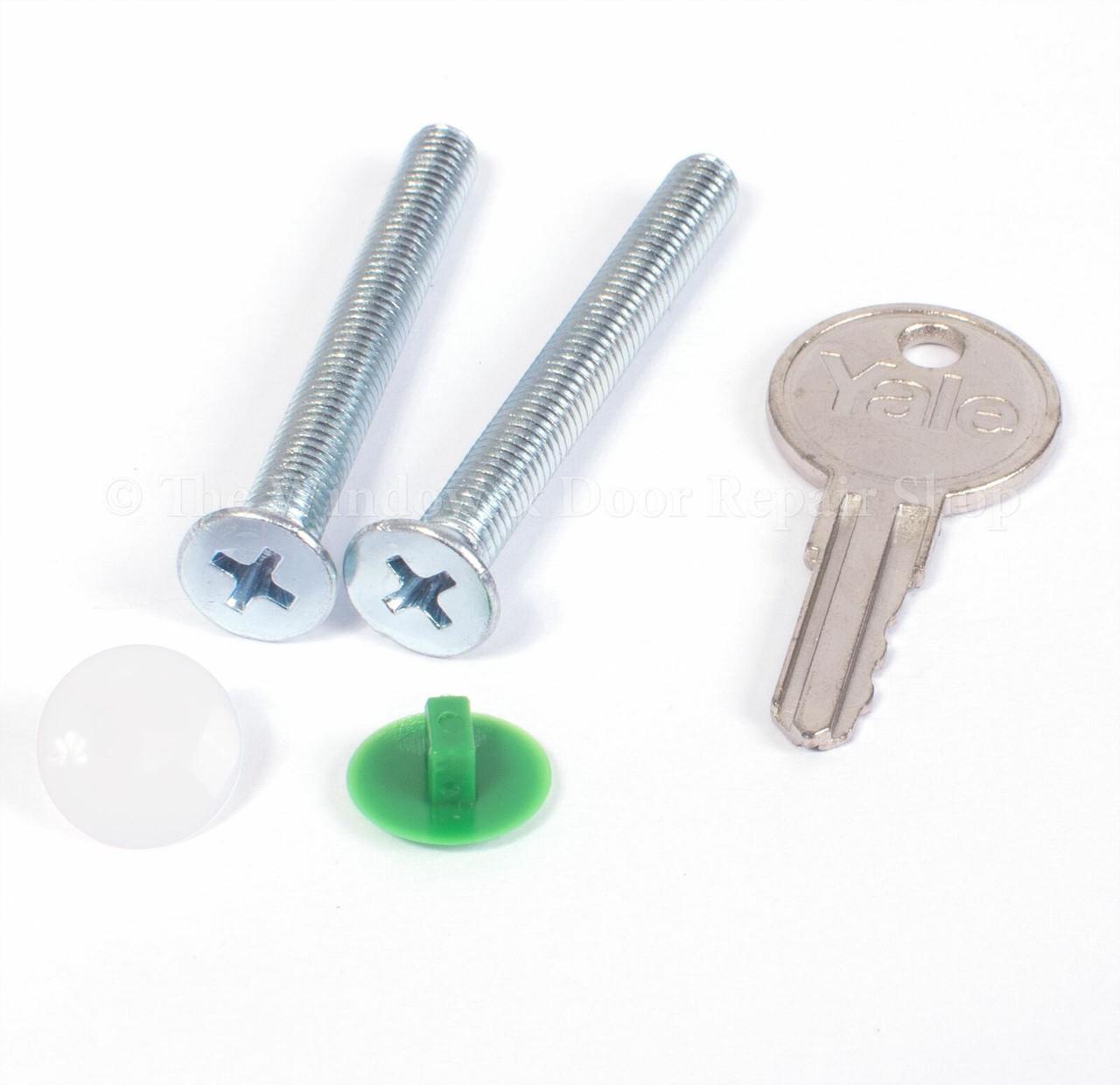

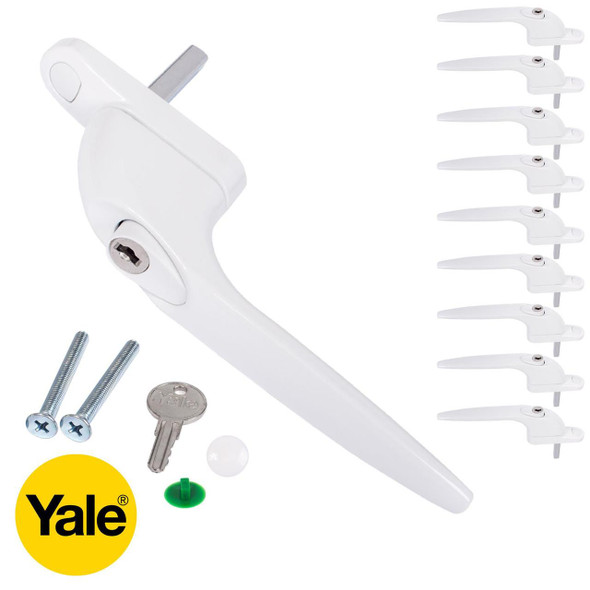

What's in the Pack?

1 x Yale Quartus inline espag locking handle

1 x Key

1 x Screw hole cover plate

1 x Key cover plate (converts to non-locking)

2 x Screws

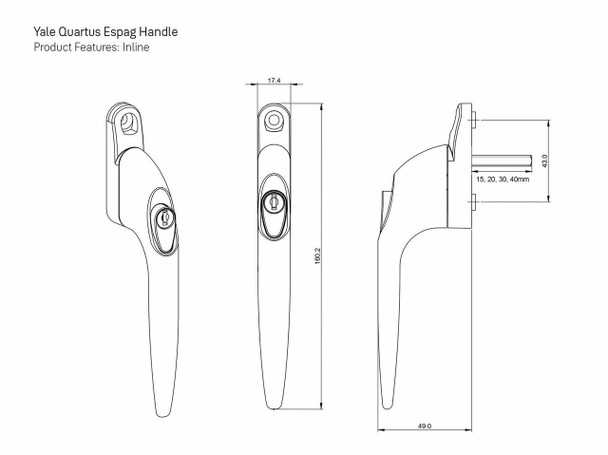

  • Screw Hole Centres: 43mm
  • Spindle Length: 15, 20, 30 & 40mm
  • Spindle Width: 7mm Square

What do I need to check before ordering a handle?

Handle Screw Hole Fixing Centres:

Fortunately, most espag handles are made to industry standards with 43mm screw hole centres, therefore it really does not matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.


These handles are of the inline type, therefore they will replace both left and right-hand handles.

Spindle Length:

To avoid having to cut the spindle it's best to check the spindle size on the handle you are replacing first. To measure the spindle length you will need to remove your existing handle, this can easily be done by turning the handle into its opening position and unscrewing the two fixing screws (these may be hidden by screw covers that will need to be removed) that retain the handle. With the handle removed measure from the base of the handle to the tip of the spindle.

Spindle width:

Although almost all espag spindle widths measure 7mm square, it is worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows
