Yale Virage Securistyle Cranked Espag uPVC Window Handle

Securistyle Cranked Espag Window Handle Virage

A very attractive Espag handle in a fantastic high quality finish. The handle comes with a 40mm spindle which can be cut down to suit; an ideal replacement for existing handles as they will fit almost all Upvc windows. These handles are some of the best currently being fitted to Upvc windows and we are pleased to be able to offer them at a very competitive price.

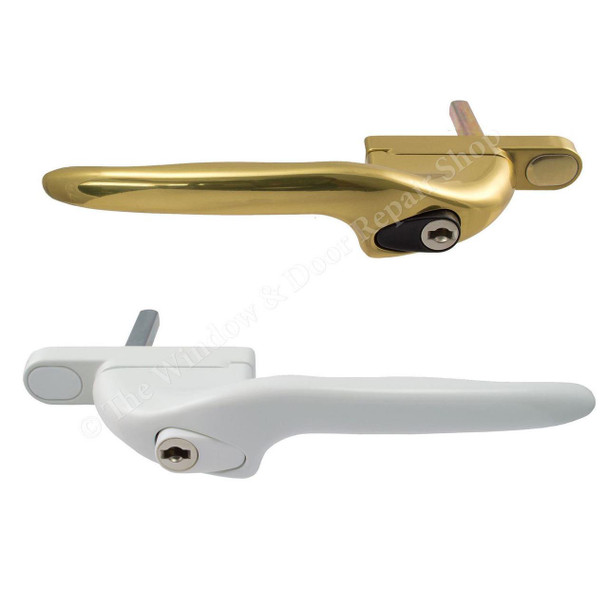

Available as left or right hand.

Features:

• Each handle comes complete with key and cover cap
• Ergonomic design for comfort
• Modern good looks
• Positive click stop on closing
• Push to unlatch mechanism
• Key dead locking for added security

What's in the pack?

1 x Cranked/offset espag handle (choice of left or right hand)

1 x Screw coverplate

1 x Deadlock Key

1 x Key coverplate (converts to non locking).

Dimensions:

• Screw Hole Centres: 43mm
• Spindle Length: 40mm (this can easily be cut down to size)
• Spindle Width: 7mm Square

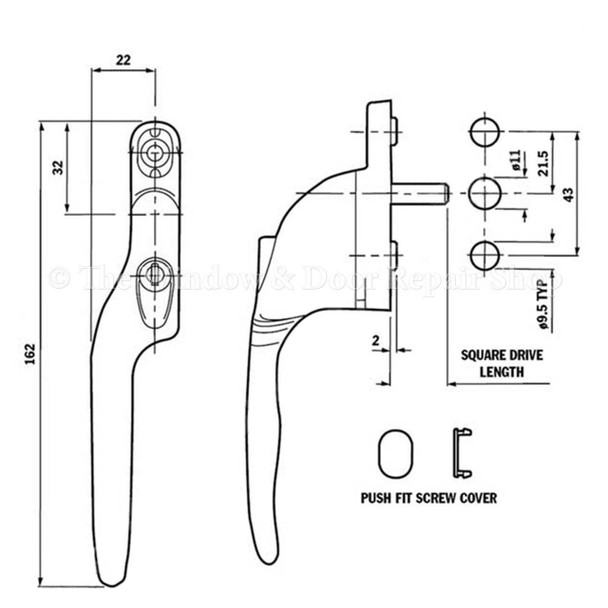

Please see technical diagram in gallery.

What do I need to check before ordering a handle?

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm screw hole centres, therefore it really does not matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the offset/cranked type, therefore you will need to select the correct handing when ordering. (Please see diagram in gallery).

Spindle Length:

The spindle is available in a 40mm length. The spindle is measured from the base of the handle to the end of the spindle. The spindle can be cut down to suit small spindle lengths. (Please see measuring guide).

Spindle Width:

Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
