Description

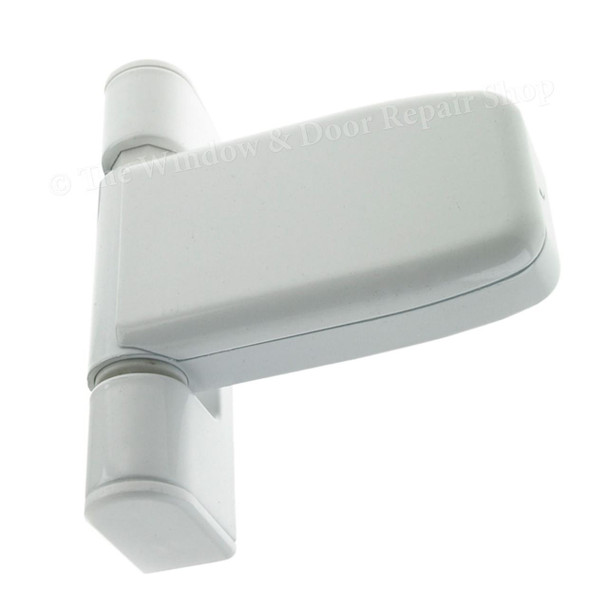

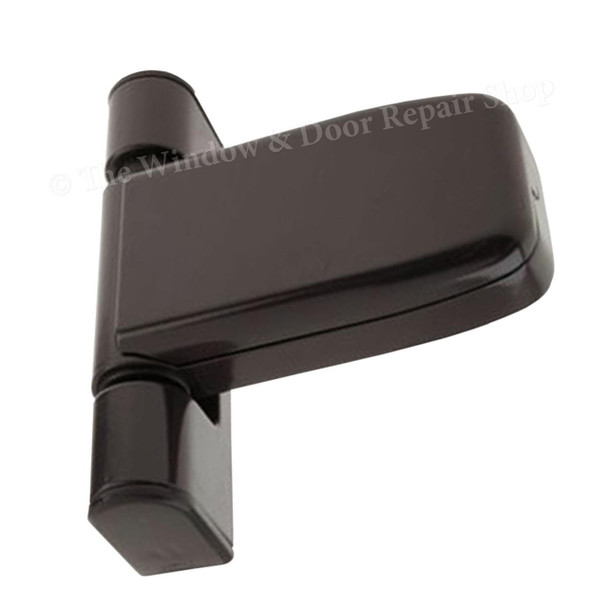

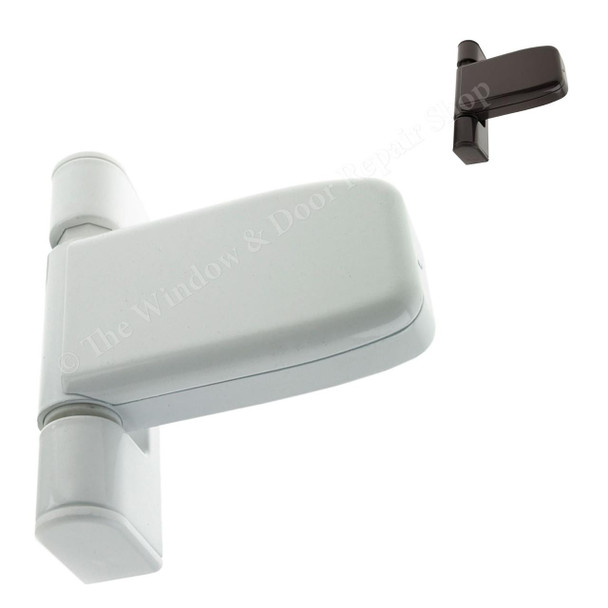

Yale UPVC Door T Flag Hinge Neon 3D Paddock
The Paddock Yale Neon 3D flag hinge combines easy adjustment with superb mechanical strength. Their aesthetically pleasing design, incorporates a modern touch with classical lines, complementing all modern PVC doors.
They can be adjusted in situ on the door and will bear 100kg in weight on each hinge.
Features:
- 3D adjustable T flag hinge; easy adjustment with door in situ
- Lateral adjustment +5mm and -5mm, Vertical adjustment +5mm and -5mm Compression adjustment +1mm and - 1mm
- Suitable for most PVC profiles
- 100kg weight bearing per hinge
- PAS24 compliant Sheer force 6.0kn
- Supplied with 2 and 4mm packers for accurate profile relation
- Security cover plate for external doors as standard
- Suitable for profile upstands from 14 to 20mm
- Corrosion resistance to EN1670:2007 Grade 4
- Tested to a minimum order 100,000 cycle operational lifespan

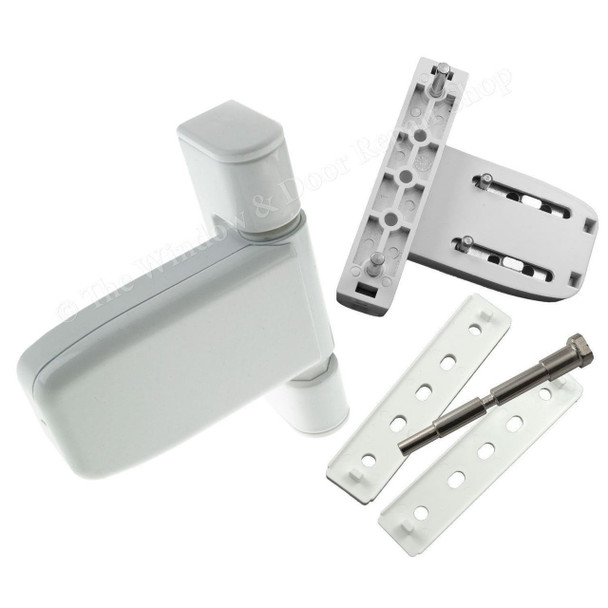

What's in the pack?
1 x Paddock Yale 3D T Flag Hinge
2 x Frame packers (2mm and 4mm) for different up stands
Please note: Fixing screws NOT supplied

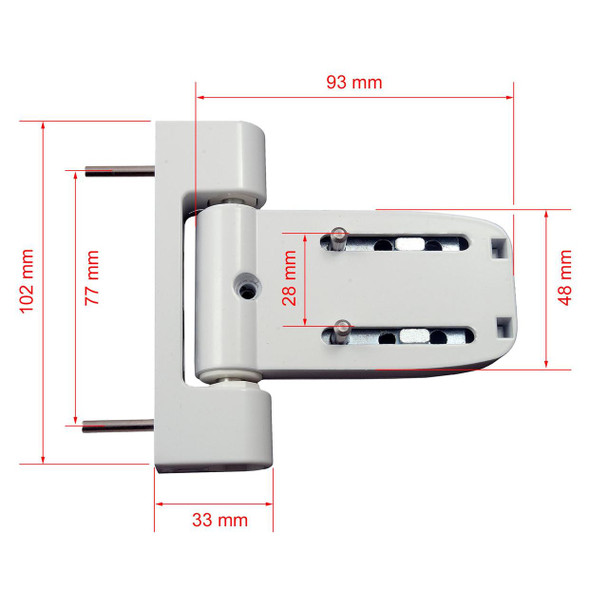

Dimensions:
- Length: 102mm
- Height: 33mm
- Width: 21mm

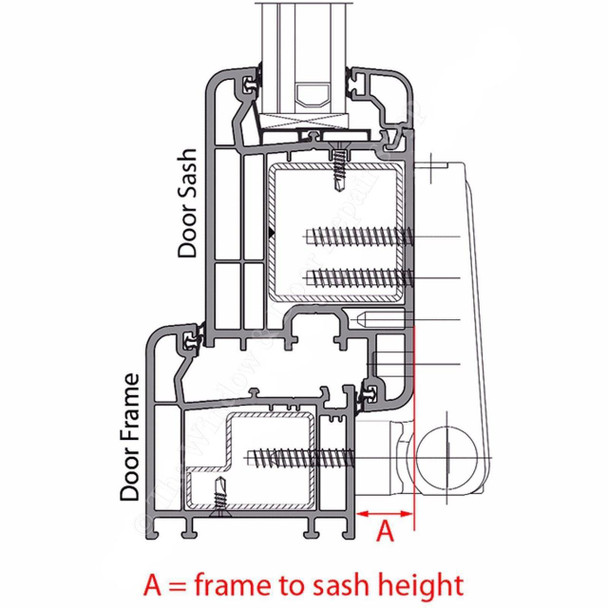

- N.B. Suitable for profile upstands from 14 to 20mm (distance between frame and top of the door sash). Please see measuring guide.
