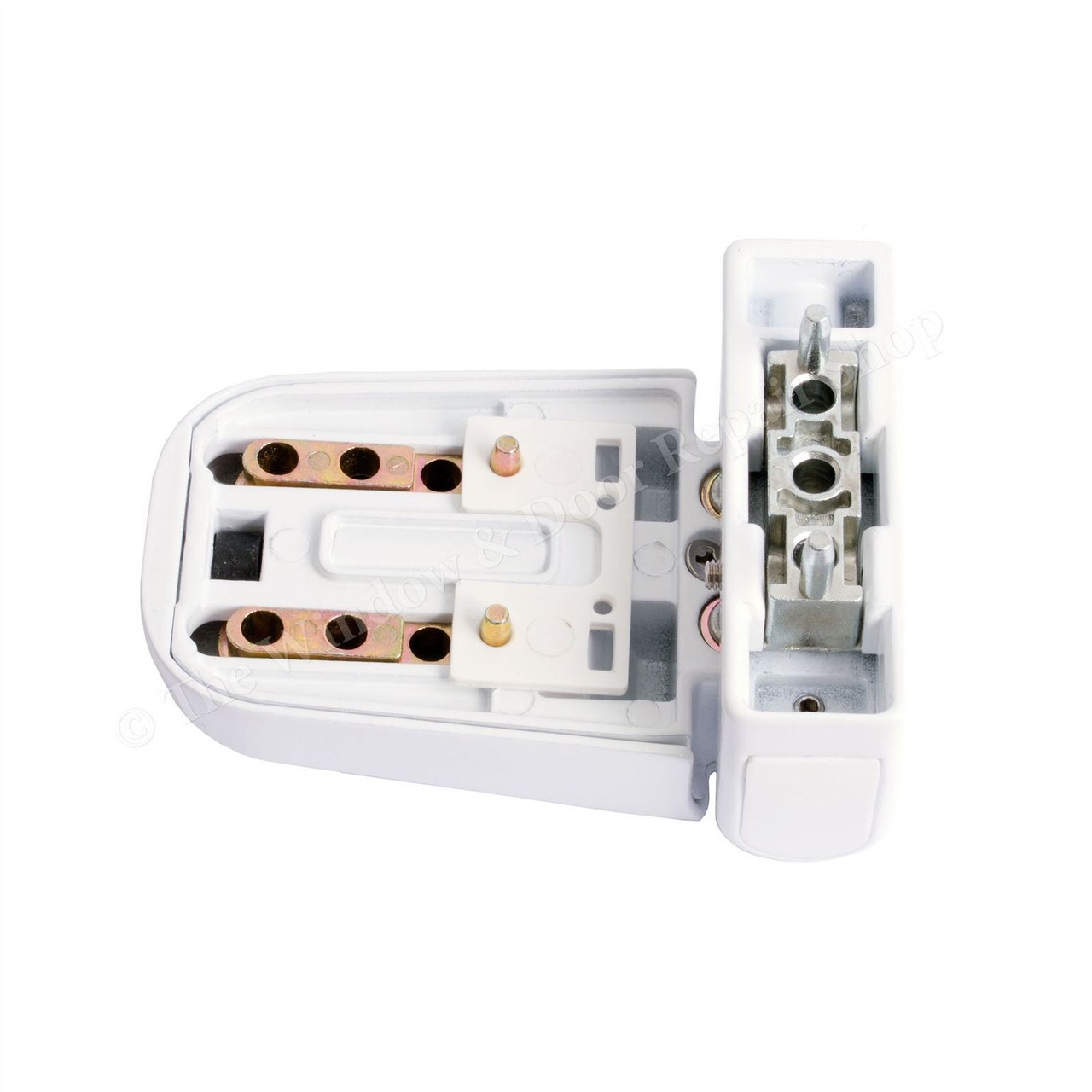

ERA Maxim UPVC Door Flag Hinge Double Glazing 3D Adjustable Replacement
The Maxim range of 3D adjustable door hinges is designed specifically for PVCu doors and boasts enhanced door security, improved aesthetics and 3D adjustments. Three Maxim hinges will support up to 100kg. Its design with a lift off clearance of 13mm makes installation easier and its step of 17.5mm to 21.5mm or 21.5mm to 25.5mm alleviates the need for packers. Suitable for open in or open out doors and a true 3D adjustment for real ease of fitting.
Please note that these hinges are handed, so you have to make sure that you buy the correct hand for your door. (Please see diagram in images).
A separate packer is provided for use with Ovolo profiles.
Features:
- N.B. Please select LEFT or RIGHT Hand and size
- For use on UPVC doors
- Two hinges will support up to 80kg; Three hinges up to 100kg
- 4 screw port fix into reinforcing for optimum security
- Suitable for open in or open out doors
- Packer to suit Ovolo profiles included
- True 3D Adjustment for real ease of fabrication and fitting
- Classic door hinge with double knuckle design overcoming potential 'droop'
- Meets the PAS 24 security standards for doors
What's in the pack?
1 x Maxim Door Hinge (Body & Flag Partially Assembled)
7 x Large Fixing Screws
2 x Small Fixing Screw
1 x Ovolo Packer
Dimensions:
- Hinge width: 95mm
- Hinge height: 73mm
- Distance Between Sash Pins: 26mm
- Distance Between Frame Pin: 34mm
- Lateral adjustment: +/- 5mm
- Vertical adjustment: +4/-1mm
- Compression adjustment: +/-2mm
For further details please see the technical diagram in the gallery. All measurements are approximate.
Do I need a left hand or right hand hinge?
To work out if you need a right or left hand hinge, stand in front of the closed door on the side where you can see the hinges, if the hinges are to your left then you will need left hand hinges; conversely, if they are to your right then you will need to order right hand hinges.
Please refer to the diagram in the gallery.
