Description
Yale Neon UPVC Door Butt/Pencil Hinge Horizontal 4mm Adjustment
The Yale Neon adjustable butt hinge is easy to adjust and can hold 80kg per hinge. This zinc cast versatile door hinge is made to suit PVCu sashes with edge profiles of 0° - Flat, 5°, 15° and 45°- Rehau profiles. They are fitted with a security grub screw to prevent the removal of the pin.
It is fully adjustable with a 4mm range of horizontal adjustment (without affecting compression) which is possible without having to remove the door. To adjust, you simply open the door to a 90° angle and rotate the two adjuster cams on the hinge until you reach your desired adjustment. Before you finish adjusting your hinge, make sure the hinge marked points are aligned correctly.
Features:
- Tested to 175,000 cycles on endurance at 80kg per single hinge

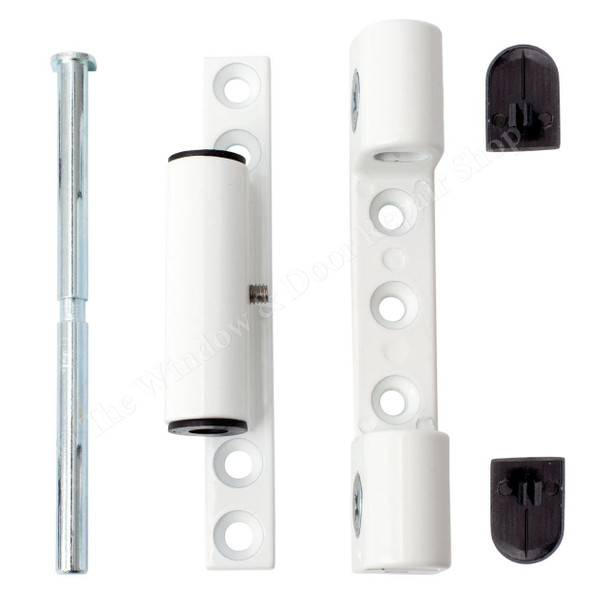

- Security hinge pin with a concealed grub screw to prevent removal

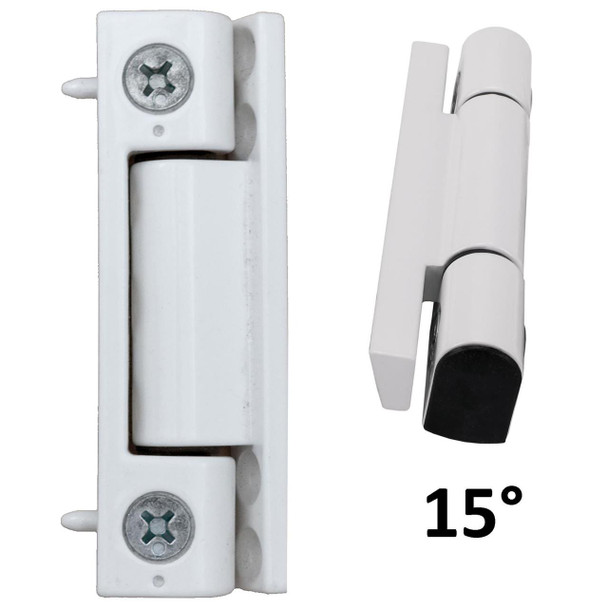

- Will fit door sashes with 0°, 5°, 15° or 45° edge profiles
- Self lubricating Nylon brushes
- 4mm linear adjustment
- Simple screwdriver adjustment
- Can adjust without removing the door
- Cast in durable, high quality zinc
What's in the pack?
1 x Adjustable Door Butt Hinge
Dimensions:
- Length 100mm
- Width 16mm
- Height 15.5mm (from base to centre of pin)
