Yale Lockmaster Multipoint Door Lock 4 Roller 2 Hook 2 Pinbolt 35mm Backset 92 PZ

Yale Lockmaster Multipoint Door Lock 4 Roller 2 Hook 2 Pinbolt 35mm Backset 92 PZ

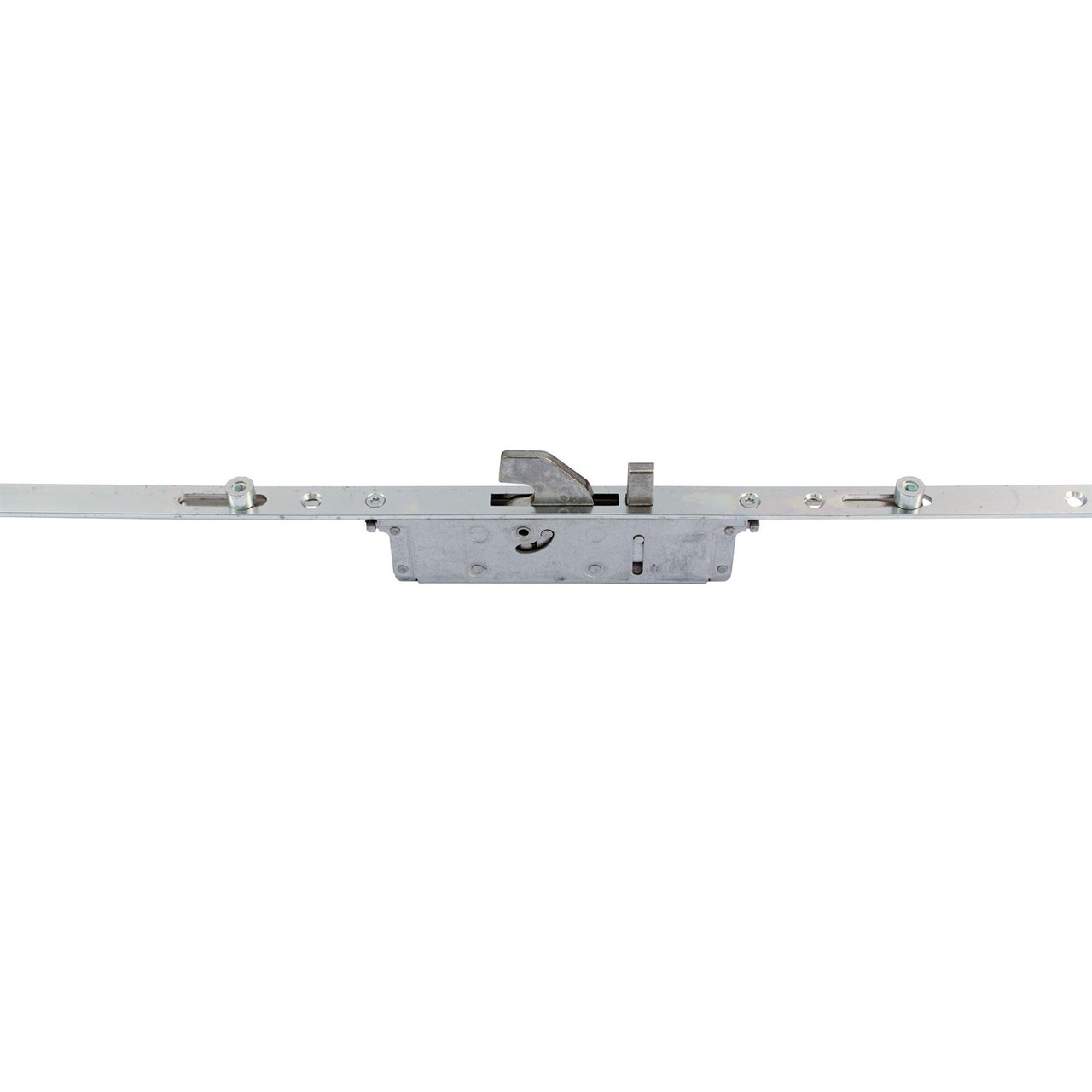

The Yale Lockmaster door lock is a one piece lever operated locking system with 9 locking points (4 - Roller cams, 2 - Hooks, 2 - Anti-Lift Pin Bolts and a Deadbolt ). The lever engages and releases the multiple locking points in one upward action. When the lock has not been secured by the key, the lever will release all locking points including the latch.

Features:

• 4 - Roller cams for effortless sealing
• 2 - Hooks for higher security
• 2 Anti-Lift Pin Bolts
• Suitable for lever-lever handle operations
• Reversible centre latch to suit all applications (Latch can be changed from the faceplate without removing unit from the profile)
• N.B. Screws are NOT supplied

What's in the pack?

1 x Yale Lockmaster Multipoint Door Lock 4 Roller 2 Hook 2 Pinbolt 35mm Backset 92 PZ

Dimensions:

• Lock length: 2200mm
• Deadbolt throw: 20mm
• Faceplate width: 16mm
• PZ: 92mm
• Backset: 35mm

What should I check before ordering a new door lock?

The most important measurements are the back-set and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
