Yale Paddock Lockmaster Multipoint Door Lock 4 Roller 35mm Backset 92PZ

Yale Paddock Lockmaster Multipoint Door Lock 4 Roller 35mm Backset 92PZ

The Yale Lockmaster range of one piece, multi-point door locks offer exceptional choice, with a range of security options, including hooks, roller and mushroom cams. Dependant on security combination, these locks meet the requirements of Secured by Design and the Master Locksmiths' Association guidelines as well as enabling doors to comply with PAS 23 and PAS 24.

This Lockmaster door lock is a one piece lever operated locking system with 5 locking points (4 - Roller cams and a Deadbolt ). The lever engages and releases the multiple locking points in one upward action. When the lock has not been secured by the key, the lever will release all locking points including the latch.

Features:

• 4 - Roller cams for effortless sealing
• Suitable for lever-lever handle operations
• Reversible centre latch to suit all applications (Latch can be changed from the faceplate without removing unit from the profile)

What's in the pack?

1 x Yale Paddock Lockmaster Multipoint Door Lock 4 Roller 35mm Backset 92PZ

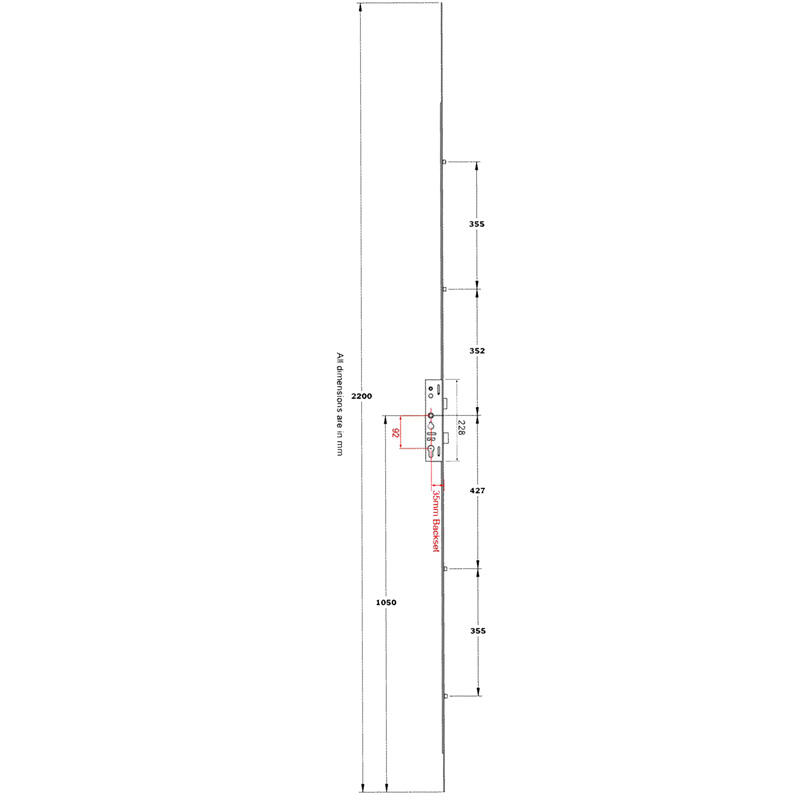

Dimensions:

• Lock length: 2200mm
• Lock case Length: 228mm
• Deadbolt throw: 20mm
• Spindle Size: 8mm
• Faceplate width: 16mm
• PZ: 92mm
• Backset: 35mm
• Distance between 1st and 2nd cam: 355mm
• Distance between 2nd and 3rd cam: 779mm
• Distance between 3rd and 4th cam: 355mm

What should I check before ordering a new multipoint door lock?

The most important measurements are the backset (the distance from the faceplate to centre of handle spindle) and the lock handle PZ centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
