Yale Euro Cylinder UPVC Front Door Lock

Yale Euro Cylinder Door Lock

Our replacement Yale door cylinder locks will fit uPVC, wood and composite doors with euro cylinder lock. The Yale 6 pin Euro profile cylinder is a convenient everyday locking solution, the cylinder has been fully tested to the British Standard BS EN1303:2005.

Yale is the brand behind locks of every design and function in over 125 countries. As one of the oldest international brands, today's Yale is among the best-known and most respected names in the lock industry, with millions of Yale locks in use worldwide.

Features:

• Yale - High performance 6 pin cylinder
• Enhanced key security combinations
• Tested to over 100,000 cycles
• Over 30,000 key combinations
• Independently tested to the requirements of BSEN 1303:2005

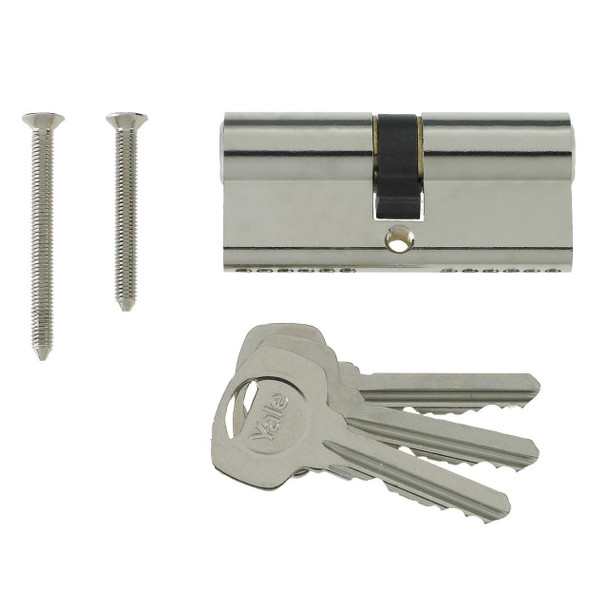

What's in the pack?

1 x Yale Lock

3 x Keys

1 x Fixing Screw

How do I measure a door cylinder?

The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all). It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.

Your new door cylinder should protrude by no more than 5mm from the handle back plates. It is most sensible to go for exactly the same size as you are replacing (unless your old cylinder was protruding excessively).

Measurement A - Measure from one end of the cylinder to the middle of the central screw hole.

Measurement B - Measure from the other end to the middle of the central screw hole.

Now check your measurements

Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.

For example: If measurement (A) = 45mm and measurement (B) = 50mm the size required would be 45/50 cylinder (95mm in length). No further measurements are required

Please note: Please note: These cylinders can be reversed when fitting therefore ordering a 45/50 cylinder is the same as ordering a 50/45 cylinder.
