YALE Superior 1 Star Thumb Turn Anti Snap Euro Cylinder Door Lock

Our Yale Superior Thumb Turn door cylinder locks are designed to fit all standard European Profile Cylinder locks (such as those fitted to uPVC and some timber and aluminium doors). The Yale Superior cylinder offers superior resistance against all current known attack methods such as cylinder bumping, snapping, drilling and picking.

The Yale Superior cylinder lock carries the latest BS kite mark KM559658 with Secure By Design approved TS007:2014 1* Star rating and has been independently tested and meets the prestigious British Standard BS EN1303:2015. One of the outstanding features is the Yale laser cut dimple key and because the horizontal keyway of a dimple lock are very small it makes insertion and use of traditional pick tools very difficult. If you are looking for superior security for your home, this is a great lock to choose.

Features:

• Unique high precision 12 telescopic pin tumbler system
• Anti-snap: Break point allows interior key to work even if external snap damage occurs
• Anti-bump: features 'V pins' on both ends to resist bumping
• Anti-pick: four special anti pick pins on each end resist picking
• Anti-drill: protected against drilling by anti drill pins and balls on both ends
• Anti-snap: the cylinder is fixed into the lock through a steel tubular bar
• Secure-By-Design approved TS007:2014 1* Kite marked security euro cylinder
• Over 100,000 combinations for ultimate key security
• EN1303:2015 - Grade 2 attack pass - the highest category!
• Kitemarked approved with BS EN1303:2015 accreditation
• 3 security keys supplied with key card
• Meets BS3621 for insurance purposes

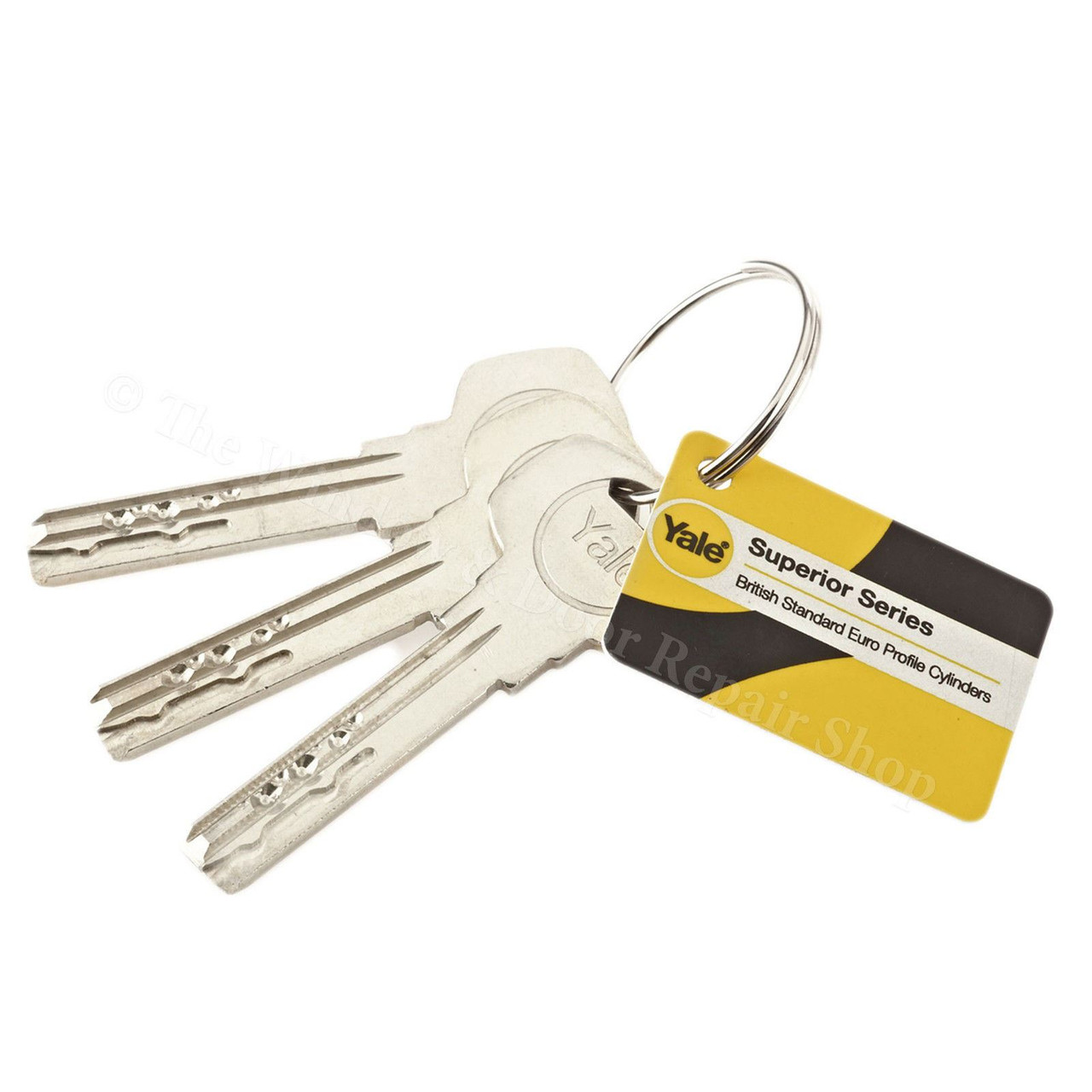

What's in the pack?

1 x Yale Superior Series Euro Profile Cylinder Lock

1 x Key Card

3 x Laser cut dimple keys

1 x Fixing Screw

How do I measure a door cylinder?

The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all). It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.

Your new door cylinder should protrude by no more than 5mm from the handle back plates.

Measurement A (Thumb Turn side) - Measure from one end of the cylinder to the middle of the central screw hole.

Measurement B - Measure from the other end to the middle of the central screw hole.

Now check your measurements

Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.

For example: If measurement (A) = 45mm and measurement (B) = 50mm the size required would be T45/50 cylinder (95mm in length).

This would be a T45/50 cylinder (95mm in length). When ordering please remember that the Thumb Turn will always be on the 'T' side (i.e. T45/50 Thumbturn , thumbturn knob will be on the 45mm side).

No further measurements are required
