Winlock UPVC Composite Door Handle Pair 92mm PZ 211mm Fixings

Winlock UPVC Door Handle Pair 92mm PZ 211mm Fixings

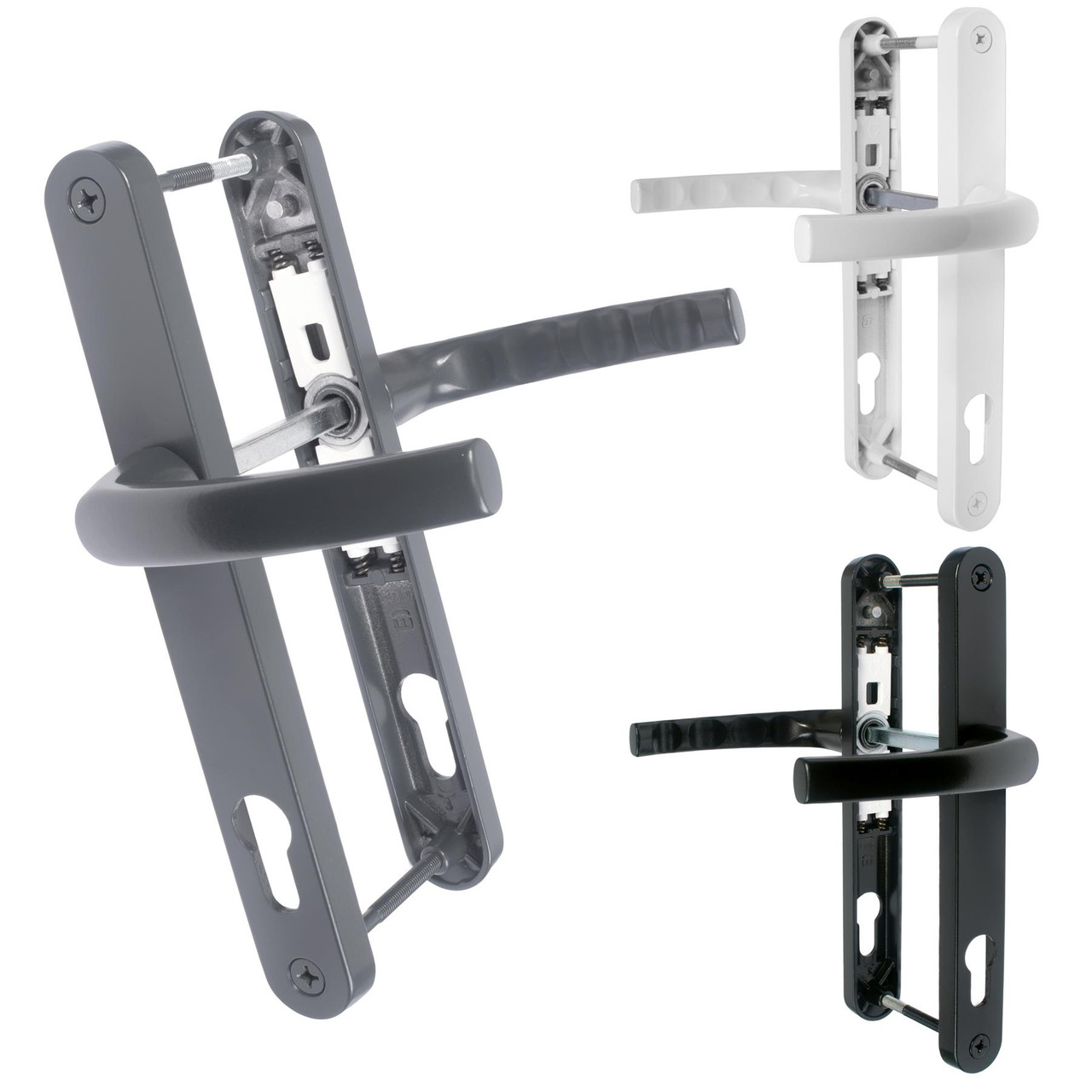

This modern design from Winlock features ergonomically crafted levers giving a comfortable, secure grip. Its stylish and robust construction make it ideal for use on new builds and in trade markets, especially due to its non-handed configuration. Spring cassettes are fitted to the handle dramatically reducing sag and its grade 5 corrosion resistance ensures longevity.

The handle is supplied complete with 2 spindles and M6 Screws fixings with reinforced bosses for extra security.

Features:

• Non-handed, levers are fully reversible

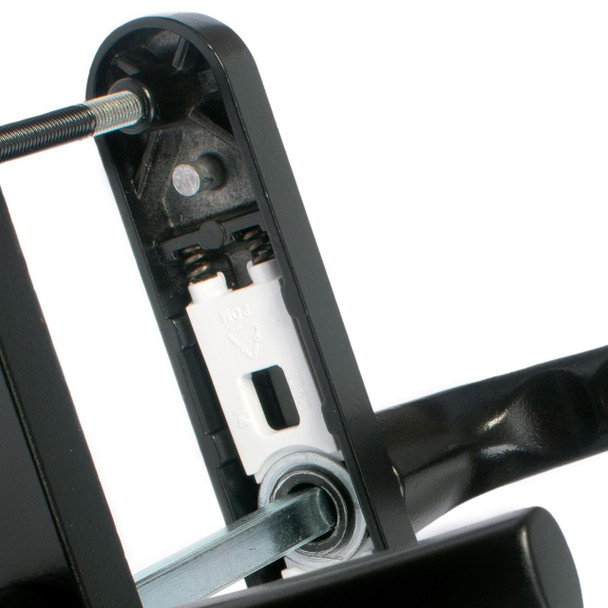

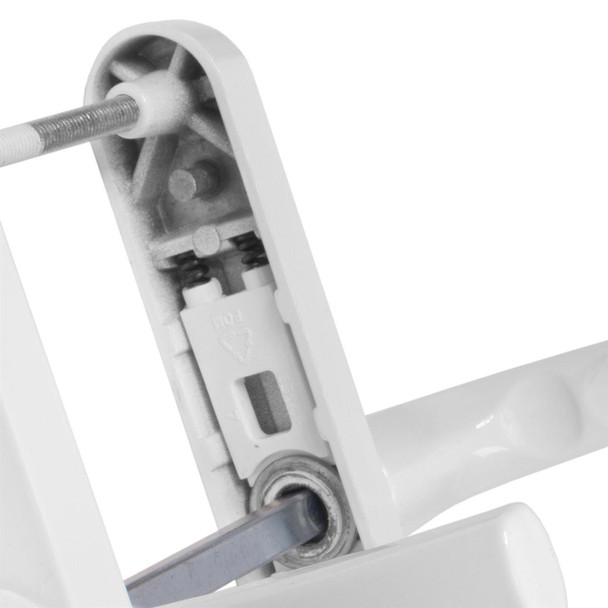

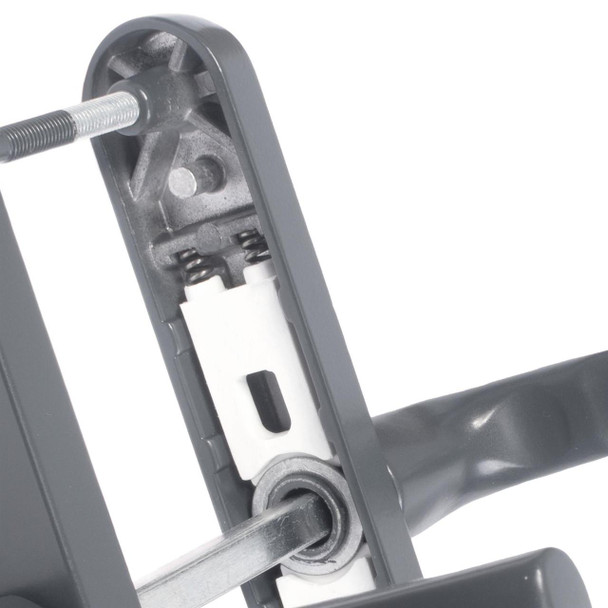

• Fully sprung
• Grade 5 corrosion resistance
• Ergonomically crafted levers

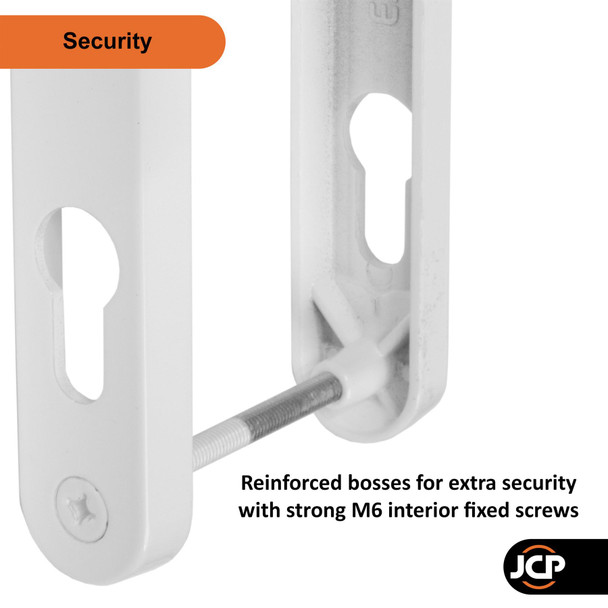

• Supplied with M6 screw fixings with reinforced bosses

What's in the Pack?

1 x Set of Winlock 92PZ Sprung  Door Handles

1 x 108mm Spindle

1 x 134mm Spindle

4 x  Reinforced M6 Screw fixings

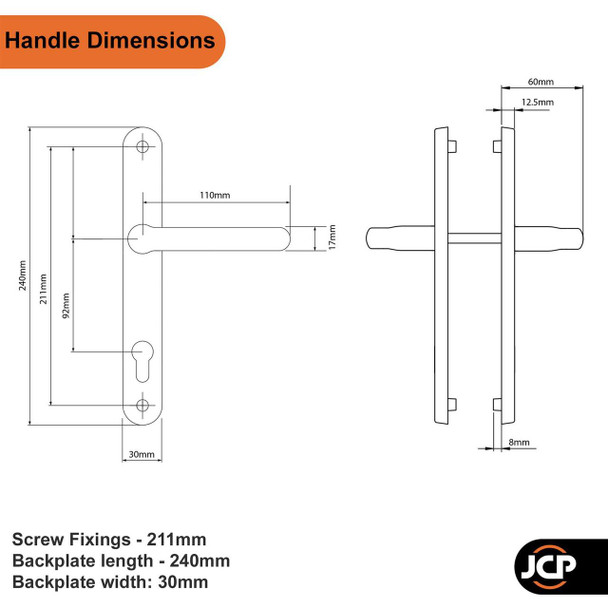

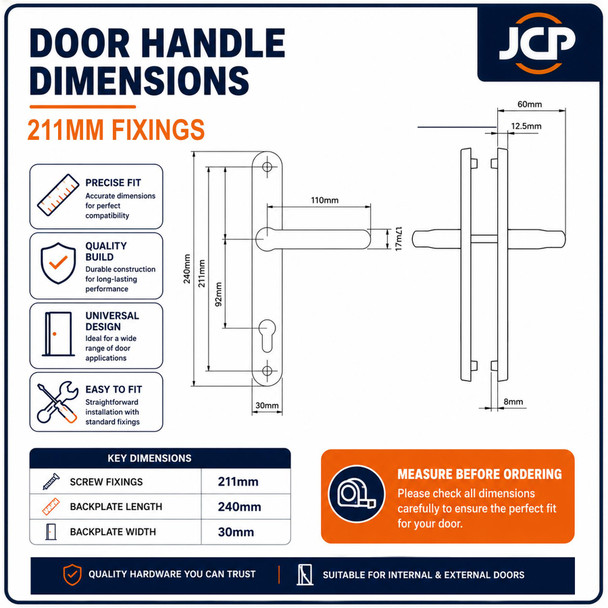

Dimensions:

• PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel (the most common size)
• Spindle Size: 8mm
• Backplate width: 30mm
• Backplate depth: 12.5mm
• Backplate length : 240mm
• Distance between screw hole centres: 211mm
• Fits door thicknesses 44-51mm & 69-75mm (52-68mm by trimming screw)

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 211mm) depending on the option chosen) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

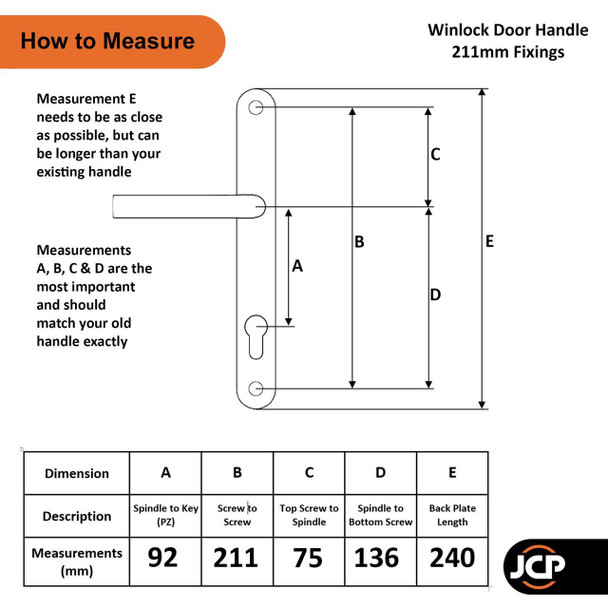

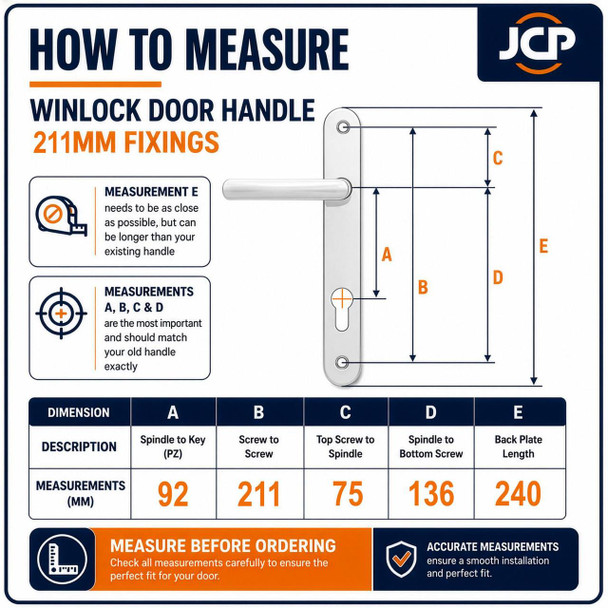

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
