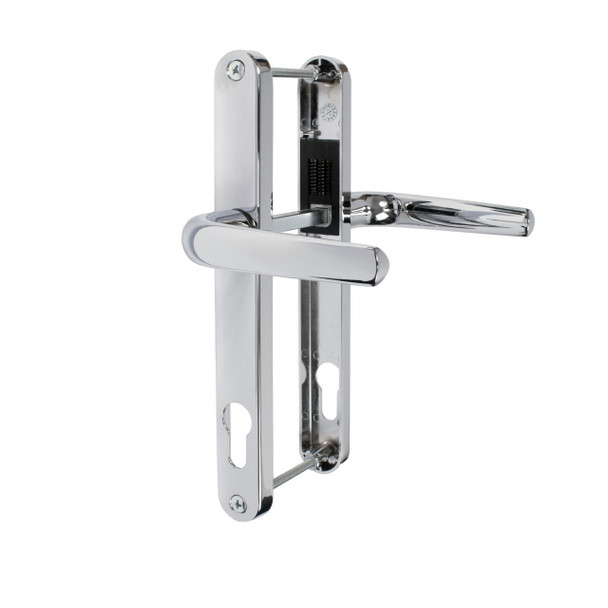

Mila Hero UPVC Door Handle Pair 92mm PZ 211mm Fixings

Upvc Door Handle 92PZ 92mm 211mm Screw Fixing Centres Lever/Lever Mila Hero

The Hero Door Handle by Mila has been ergonomically designed to the contours of your hand to improve your comfort of operation when in use. Modern styling the levers are pleasing to both the hand and the eye and the backplate features an integrated spring mechanism ensuring a return to 90° each time. A lovely range of colours to fit into any colour scheme and with a PZ of 92mm will fit most doors. These handles can be rotated 180° before fitting and will fit left or right handed doors.

Features:

• Supplied as a pair complete with spindle and screws
• Fully Sprung with 2 spring cassettes
• Zinc Alloy levers & backplate
• Fully reversible to fit both left or right hung doors
• Fits 70mm door thickness

What's in the Pack?

1 x Mila Pro-Linea Door Handle Pair

1 x 130mm Spindle (8mm Diameter)

2 x Spring Casettes

2 x Screws

Dimensions:

• PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel (the most common size)
• Spindle Size: 8mm
• Backplate width: 28mm
• Backplate depth: 11mm
• Backplate length: 231mm
• Distance between screw hole centres: 211mm
• Fits 70mm door thickness

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 211 mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
