Versa
Versa UPVC Window V Espag Lock Inline or Offset Gearbox - Retro Fit Flat Rail
- SKU:
- VSH-VES-963-8BC
- Cam Height:
- 8mm
Versa V-Espag Inline Offset Retro Fit Window Espag Lock - Croppable 200mm-1000mm
The ultimate versatile espag system that reduces your inventory and fits almost any window - convertible from inline to offset in seconds
The Versa V-Espag Retro Fit Window Lock features an innovative replacement espag system designed to retrofit almost every window espag on the market. Fully croppable from 200mm to 1000mm, this ingenious locking mechanism includes a blue packing piece that allows you to instantly convert from inline to offset configuration by simply unclipping.
Crafted with professional installers and tradespeople in mind, this espag significantly reduces the number of window locks you need to carry to jobs. With multiple configuration options including 21mm or 25mm backset and either a slimline 13mm faceplate or standard 16mm faceplate, you'll have the perfect solution for nearly any window repair scenario.
Key Benefits:
- Exceptional Versatility – Easily convert from inline to offset configuration by simply removing the blue packing piece
- Fully Adjustable Length – Crop to any size between 200mm-1000mm for a perfect fit to your specific requirements
- Multiple Configuration Options – Available in 21mm or 25mm backsets with either 13mm slimline or 16mm standard faceplates
- Time-Saving Design – Complete repairs in a single visit with this all-in-one solution that adapts to various window types

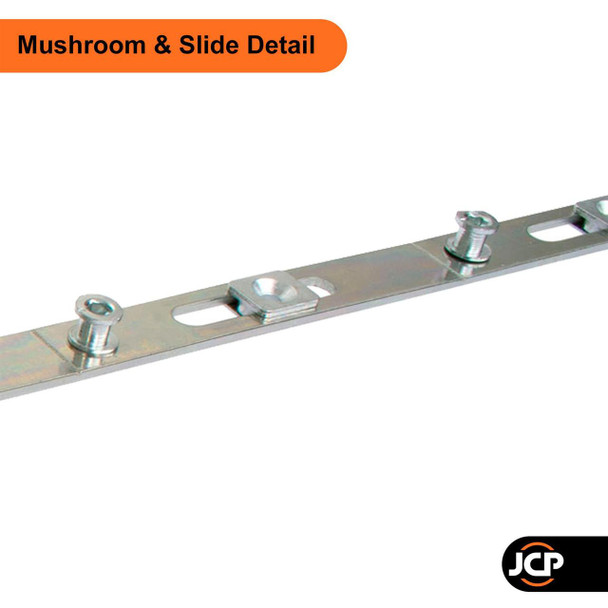

- Superior Engineering – Features 6 rollers for smooth operation and specially designed fixing tabs that allow the plate to move rather than the rollers
- Reduced Inventory Needs – Carry fewer parts while maintaining the ability to handle a wide range of repair scenarios
- Professional-Grade Quality – Built to VERSA's exacting standards for reliability and long-term performance
Product Specifications:

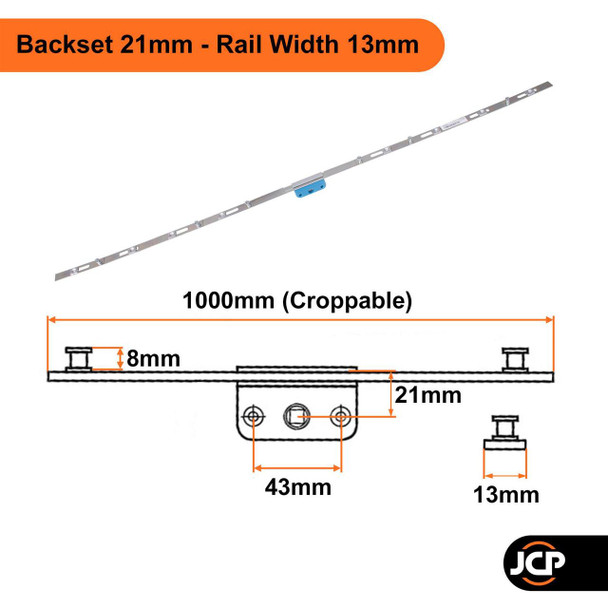

- Rail Length: 1000mm (croppable from 200mm to 1000mm)
- Screw Hole Centres: 43mm
- Cam Height: 8mm
- Backset Options: 21mm or 25mm
- Rail Width Options: 13mm (slimline) or 16mm (standard)
- Number of Rollers: 6
- Material: Passivated Steel

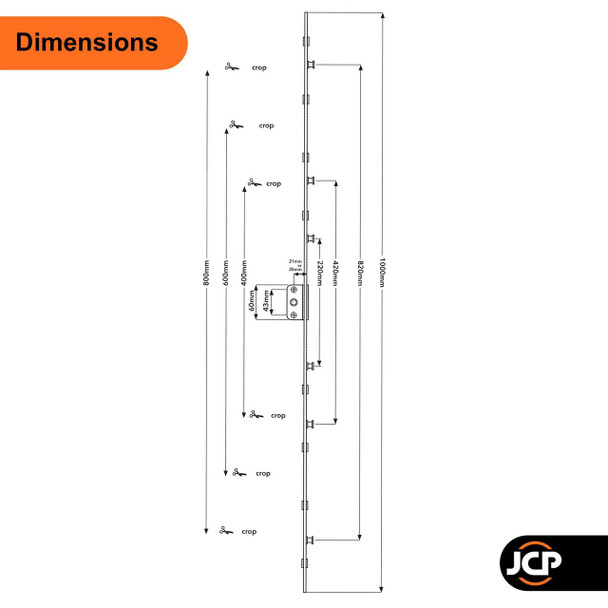

All measurements are approximate and may vary slightly due to manufacturing tolerances. Please refer to the diagram in our product gallery for detailed dimensions.
Package Contents:
- 1 × Versa V-Espag Inline Offset Retro Fit PVC Window Lock (in your selected configuration)
Frequently Asked Questions:
How do I convert this espag from inline to offset?

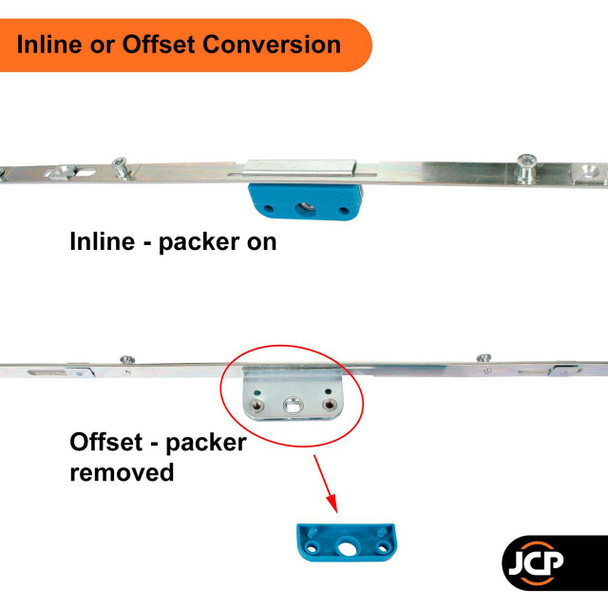

Simply locate the blue packing piece and gently lever it off. This quick modification instantly converts the espag from inline to offset configuration without needing any additional parts or tools.
How do I crop the espag to the correct size?

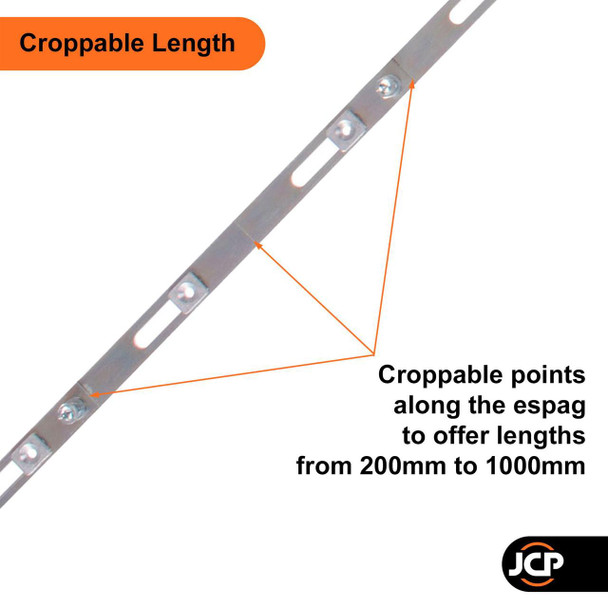

Measure your required length carefully, then use a hacksaw to cut the rail to size. The espag is designed to be cut anywhere along its length between 200mm and 1000mm.
Will this work with my existing window hardware?
The Versa V-Espag is designed to retrofit almost any window espag on the market. With adjustable backset and faceplate width options, plus the ability to convert between inline and offset configurations, it's compatible with the vast majority of UPVC window systems.
Which version should I choose for my window?

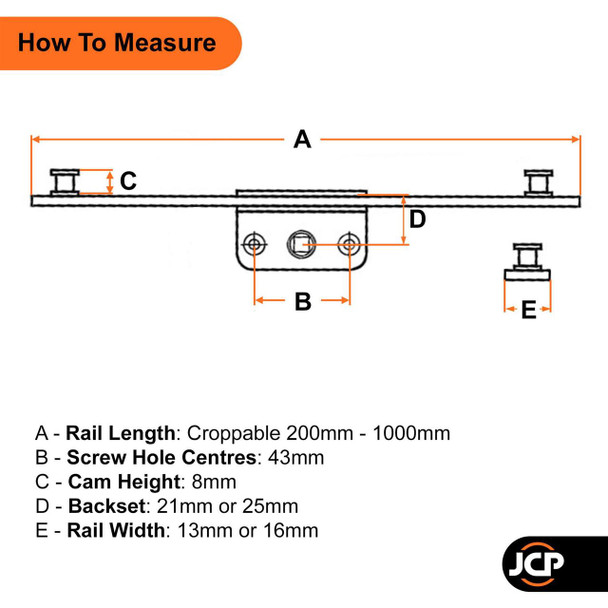

Measure your existing espag's backset (the distance from the centre of the spindle hole to the front edge of the faceplate) and the width of the faceplate. Select the corresponding options when ordering (21mm or 25mm backset, and 13mm or 16mm faceplate).
How do I measure the backset on my UPVC window espag?
To measure the backset correctly, follow these steps: 1) Locate the spindle hole (square hole where the handle fits) on your window. 2) Measure from the centre of this spindle hole to the outer edge of the faceplate (the long metal strip). This measurement is your backset, select either 21mm or 25mm Backset. For accurate results, use a ruler or tape measure with millimetre markings.
Why Choose Versa V-Espag Retro Fit Window Lock?
The Versa V-Espag Retro Fit Window Lock represents the pinnacle of versatility in window hardware repair. Designed with the professional in mind, it eliminates the need to carry multiple specific-sized espags while ensuring you can complete almost any window repair in a single visit. This innovative product not only saves time and reduces inventory costs but also provides a reliable, long-lasting solution for your customers. With its multiple configuration options and easy adjustment features, you'll have peace of mind knowing you're prepared for virtually any window repair scenario that comes your way.
