Description

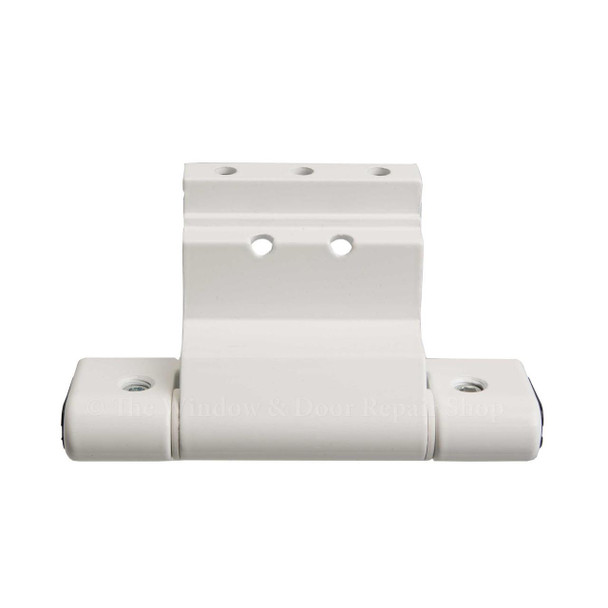

Mila Pendulum Rebated Butt Hinge 9mm Eurogrove 110mm
The Mila iDeal Pendulum Rebated Butt Hinge is compatible on profiles with a 9mm Eurogroove position, and whose chamfer and ovolo makes the fitting of standard butt hinges challenging.
Adjustment is possible by opening the door to 90° degrees and rotating the adjustment screws until the desired position has been reached. High durability steel hinge pin for maximum strength and enhanced security and the hinges 8mm diameter bosses provide additional stability. Simple to fit.
Sold in white to suit white profiles.
Features:
- High durability stainless steel hinge pin
- Additional stability from the 8mm diameter bosses
- Maximum sash weight for 3 hinges: 80kg
- Compatible with profiles with a 9mm Eurogroove
- Adjustment can be achieved without dismounting the door leaf
- Tested to 50,000 cycles under load
- Salt spray testing - 480 hours powder coated
- Simple to fit
What's in the pack?
1 x Mila iDeal Pendulum 9mm Rebated Butt Hinge (Body & Flag)
1 x Stainless Steel Hinge Pin
1 x Top Cap, 1 x Bottom Cap
Dimensions:
- Hinge height: 110mm
- Distance between screw hole centres: Top to middle: 18mm, Top to bottom: 37mm
- Lateral adjustment: +/- 2 mm
- Vertical adjustment: + 4mm
For further details please refer to the diagram in the gallery. All measurements are approximate.
