Description

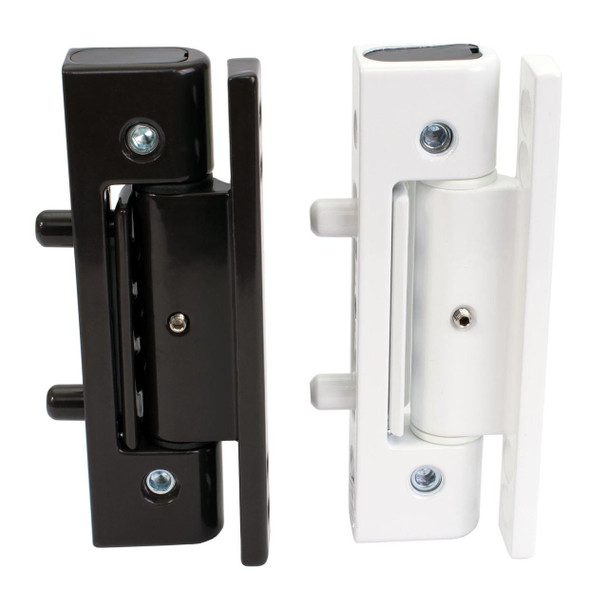

Mila Ideal UPVC Door Butt Hinge Adjustable Flat and Angled Double Glazing Doors
The Mila Ideal Butt Hinge is fully adjustable without removing the door leaf, achieving optimal weather resistance and an easy set up. It features a fully steel hinge pin allowing an 80kg maximum load when using 3 hinges. Flat and 5° options are available.
Features:
- Fully steel hinge pin.
- Maximum sash weight (kg): 80 (3 hinges).
- Fully adjustable without removing the door leaf.
- + /- 2mm lateral, + 4mm vertical adjustment.
What's in the pack?
1 x Mila Ideal UPVC Door Butt Hinge
1 x Steel Hinge Pin

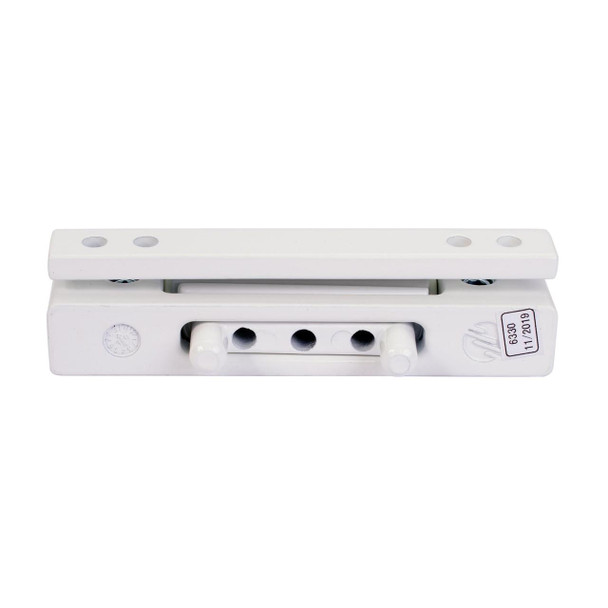

Dimensions:
- Length: 110mm
- Width: 16mm
- Height: 29mm (from base to front of hinge)
- Screw Fixing Centres: 68mm (inner), 90mm (outer)
- + /- 2mm lateral, + 4mm vertical adjustment

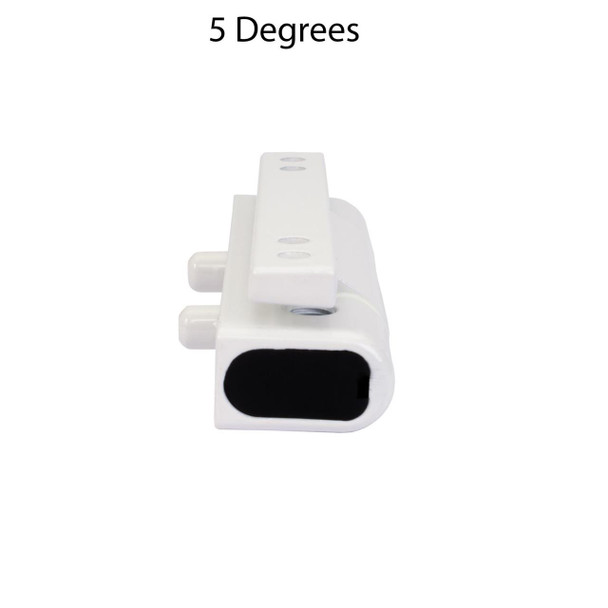

- Will fit door sashes with 0° or 5° edge profile (please select your choice from the drop down menu above)
All measurements are approximate.
Please refer to the diagram in the gallery above.
