uPVC Window Hinge Mila iDeal Friction Stay Pair

Pair of Mila iDeal uPVC Window Hinges Double Glazing Friction Stay PVC

Introducing the Mila iDeal uPVC friction window hinge it provides superior weather sealing and draught proofing, keeping your interiors comfortable regardless of the elements. It is highly durable using high-grade Ferritic (430) stainless steel ensuring that your window hardware is built to last. Whether you're installing top-hung or side-hung windows, this hinge offers a comprehensive solution; it is easy to install, with multiple sizes and stack heights available; installation is straightforward, saving you both time and effort. It's dependable function with 20,000 cycles of operational reliability and BSEN 1670 Grade 4 weather resistance means you're investing in a product that offers peace of mind.

Upgrade your window installations with the Mila iDeal uPVC Window Hinge Friction Stay, a hinge that combines quality, reliability, and versatility in one superb package.

Features:

• Excellent weather sealing & great draught proofing performance
• Adjustable friction screw
• Material: High-grade Ferritic (430) stainless steel
• Suitable for both top-hung and side-hung window applications
• Cycle-tested to an impressive 20,000 cycles
• Tested to BSEN 1670 Grade 4 standards, this hinge achieves 240 hours in salt spray tests

What's in the pack?

1 x Pair Mila iDeal uPVC Window Hinge Friction Stays

Dimensions:

• Stack Heights: 13mm and 17mm
• Hinge Width: 18mm
• Hinge Length Top Hung: 8”, 10”, 12”, 16”, 20”, and 24”.
• Hinge Length Side Hung: 12” and 16”

How should I measure my hinges?

The diagram in the image gallery will help you with this:

A: First you need to establish the hanging type, do you require a top or side hung hinge?

B: Then you need to take your first measurement - this is the actual length of the hinge. You will need to measure the part that fixes to the window frame (not sash), please see the diagram showing where the hinge length measurements are taken from.

C: The second measurement is that of the hinge width i.e. the width of the metal part that fixes to the outer frame

D: The final measurement that you need is the stack height, this measurement is the height of the hinge when closed, please see diagram. Stack heights come in two sizes 13mm or 17mm, so even if you are unsure you can usually calculate which is correct because of the 4mm difference.

My new hinges are opening the wrong way?

Certainly, we understand that mistakes can occur. If you've opened your door hinges the wrong way, don't worry; you're not alone. Each hinge is marked with either an 'L' or an 'R', along with an arrow indicating the correct opening direction. To correct the error, simply perform the following steps:

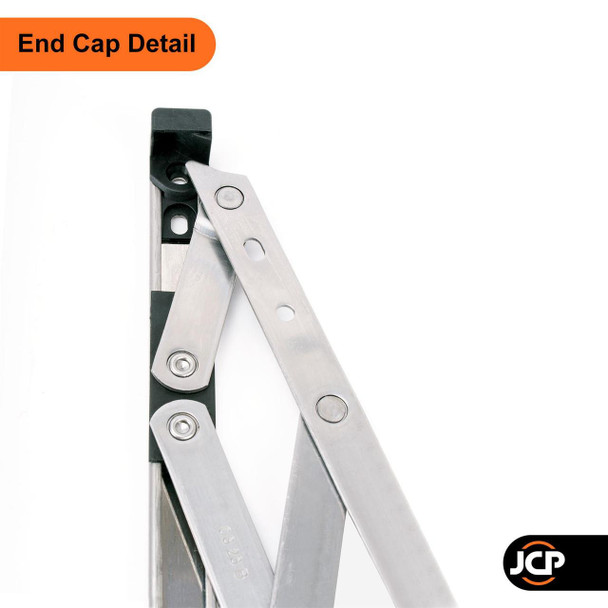

1. Carefully remove the black end caps from the affected hinges.
2. Close the hinges, making sure they are correctly aligned.
3. Securely reattach the black end caps.
4. Now, go ahead and open the hinges in the direction indicated by the 'L' or 'R' marking and the arrow.

By following these steps, you'll be able to fix the issue without any hassle.

.
