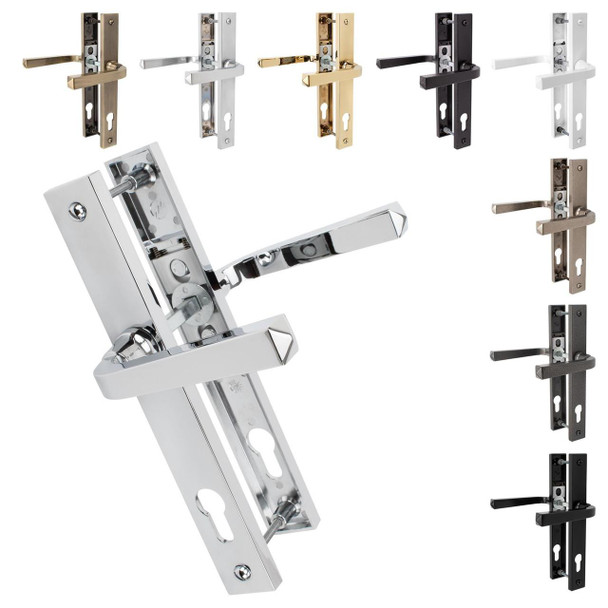

Mila Heritage Composite Door Handle Pair 92mm PZ 211mm Fixings

Mila Heritage Door Handle 92PZ 92mm 211mm Fix Lever/Lever for Composite Doors and UPVC Doors

The Heritage Door Handle by Mila is designed to provide an elegant and timeless look for traditionally styled doors. Featuring an authentic diamond-end lever, this handle not only offers ease of use but also ensures smooth operation. The robust spring cassette adds durability, and the handle has been rigorously tested to BSEN 6375 standards, enduring 50,000 cycles under load. Available in a range of traditional and contemporary finishes, including hammered and polished options, the Heritage Door Handle is a versatile choice for enhancing the aesthetic appeal of any door.

The Mila Heritage Handle is suitable for composite doors with a thickness of 44mm to 48mm and comes with an additional fixing pack for UPVC doors with a thickness of 68mm to 72mm. Other thicknesses can be achieved by trimming the spindle and screws with a sharp hacksaw. The collection features classic finishes in black and pewter with a traditional hammered texture, and modern polished finishes for a contemporary twist. The integrated spring mechanism ensures consistent lever return, while the die-cast zinc alloy construction provides durability and corrosion resistance, tested to BSEN 1670 standards. With a universal 240mm backplate, this handle suits most door locks and is suitable for both left and right-handed doors.

Features:

• Suits both traditional and contemporary styled doors
• Suits Composite door thickness of 44mm to 48mm
• Suits UPVC door thickness of 68mm to 72mm
• Other thicknesses can be achieved by trimming the spindle and screws with a sharp hacksaw
• Heavy duty spring mechanism offering consistent lever return to 90°
• Material: Die-cast Zinc Alloy
• Endurance: Tested to BSEN 6375 in excess of 50,000 cycles
• Corrosion Resistance: BS EN 1670 (480 hours)

What's in the pack?

1 x Mila Heritage Door Handle Pair (1 x Internal & 1 x External Lever)

2 x 8mm Spindles (1 x 90mm, 1 x 115mm)

4 x Screws (2 x 50mm, 2 x 75mm)

Dimensions:

• PZ Centres: 92mm
• Spindle size: 8mm
• Backplate width: 32mm
• Backplate depth: 10mm
• Backplate length: 240 mm
• Lever length: 121mm
• Distance between screw hole centres: 211mm
• Top screw to spindle: 75mm
• Centre of euro to bottom screw: 44mm
• For Composite doors: 44mm to 48mm thickness
• For UPVC door: 68mm to 72mm (Other thicknesses can be achieved by trimming the spindle and screws with a sharp hacksaw)

All measurements are approximate. Please refer to the measurement diagram in the image gallery.

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 211 mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Please check the critical measurements in the diagram in the image gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
