Ingenious Gearbox for Multipoint Door lock 35mm 45mm Backset 92 62 PZ

Ingenious Multipoint Gearbox Door Lock Centre Case Mechanism 92/62 PZ Twin Spindle Double 35mm or 45mm Backset Ultimate Collection Origin

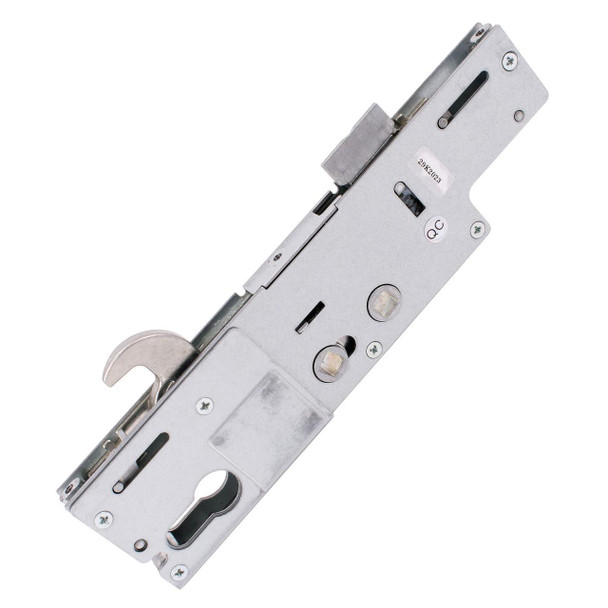

The Ingenious Multipoint Gearbox Door Lock Centre Case is a perfect upgrade for your door security. This innovative gearbox features a distinctive double spindle arrangement with 62mm and 92mm PZ centres, making it ideal for versatile door furniture compatibility. Crafted with precision its compact yet robust design measures 228mm in height, with screw hole spacing of 110mm (top to middle) and 108mm (middle to bottom), ensuring a secure fit to the faceplate. Choose between 35mm or 45mm backsets, keeping in mind the allowance for the faceplate thickness, for an exact fit to your multipoint locking system. Comes complete with a reversible latch for left or right-handed doors.

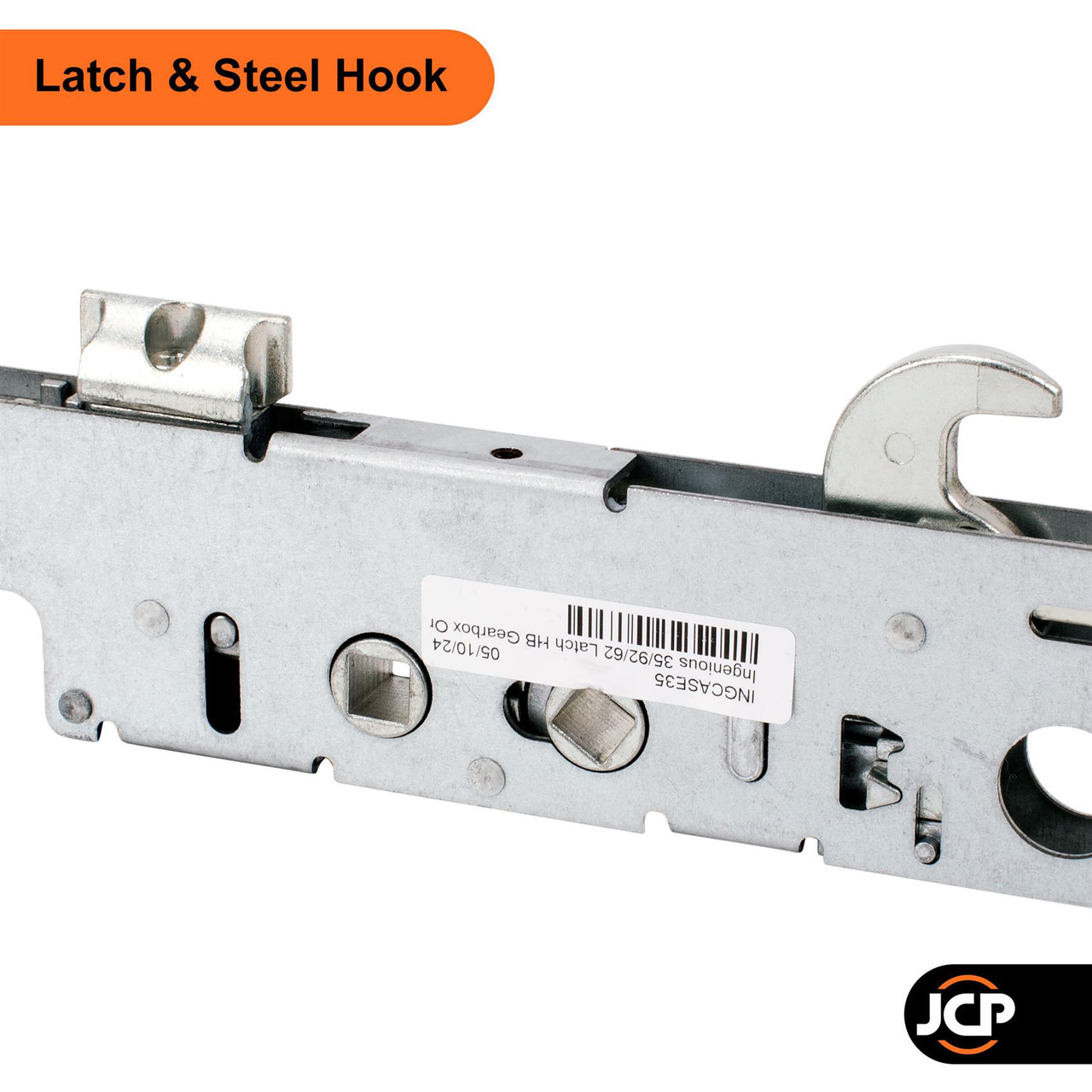

Designed with both functionality and durability in mind, the Ingenious Multipoint Gearbox is built to perform seamlessly in high-traffic residential and commercial settings. The gearbox’s high hook and latch, spaced 75mm ensure a strong and reliable locking mechanism. Ingenious gearboxes do bear a resemblance to the Fullex XL series, so to double check, we recommend comparing the hook boxes against the pictures as they are distinct. Perfect for retrofitting or new installations, this gearbox is compatible with unsprung door furniture, although we recommend using sprung handles for optimal performance. Whether upgrading your doors for added security or replacing an existing mechanism, this gearbox combines strength, versatility, and innovative features to meet all your locking needs.

Features:

• Reversible latch for left or right handed doors
• Double 8mm spindle
• Genuine replacement gearbox for Ingenious locks
• Ingenious - also known as Ultimate Collection Origin
• Main gearbox: Latch and hook

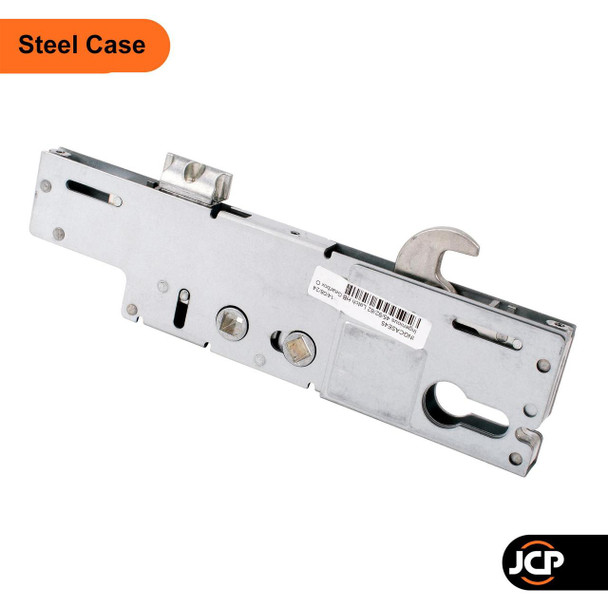

• Material: Steel

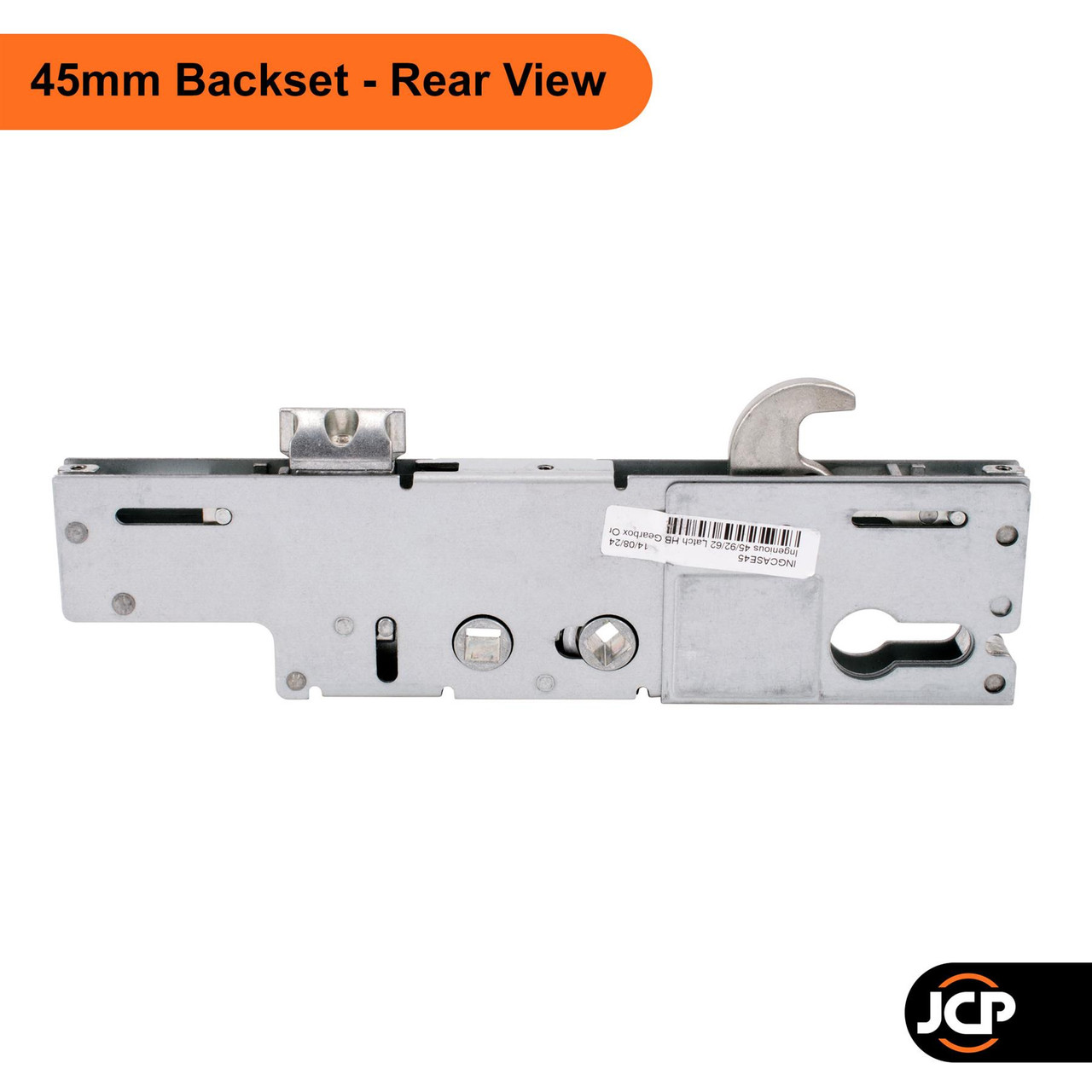

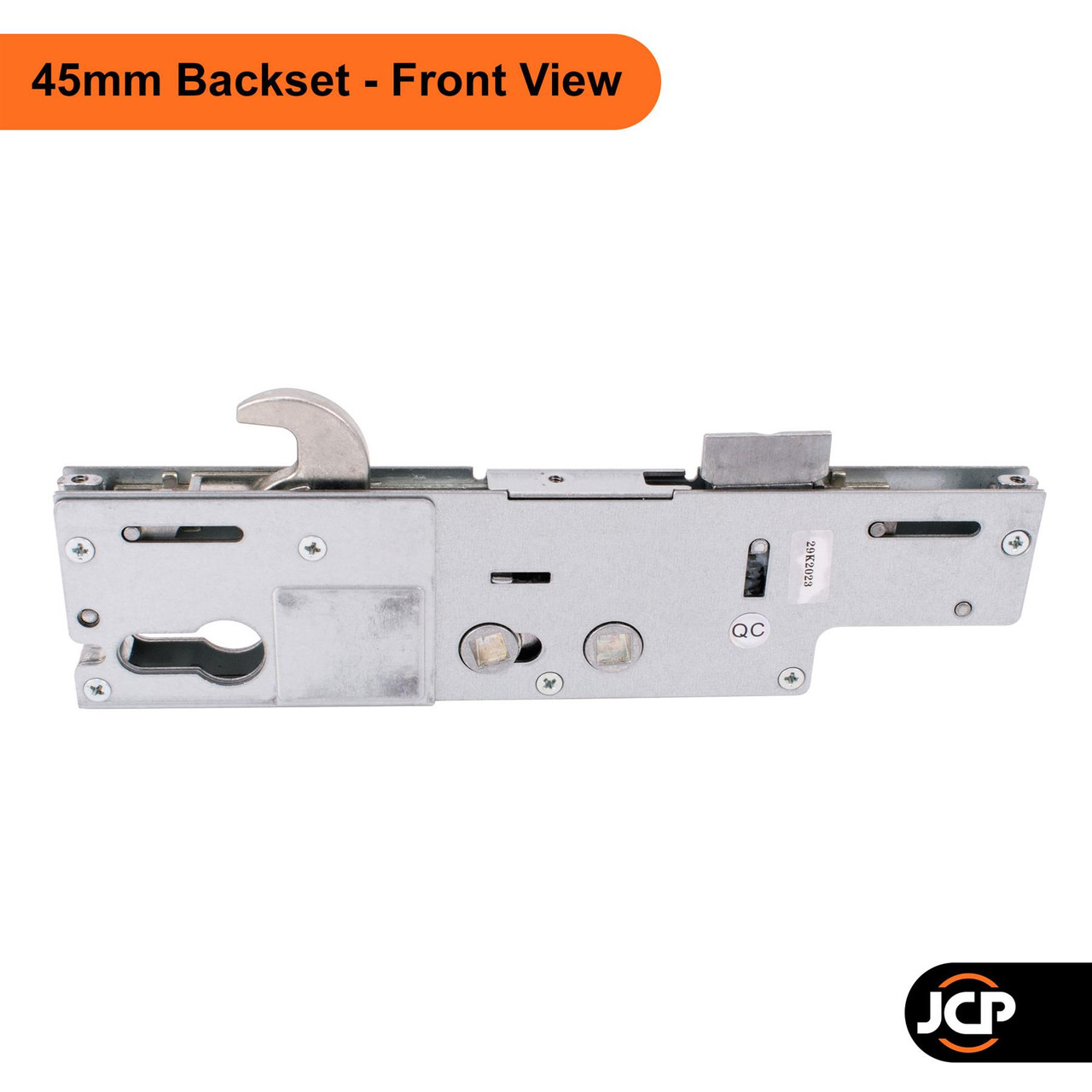

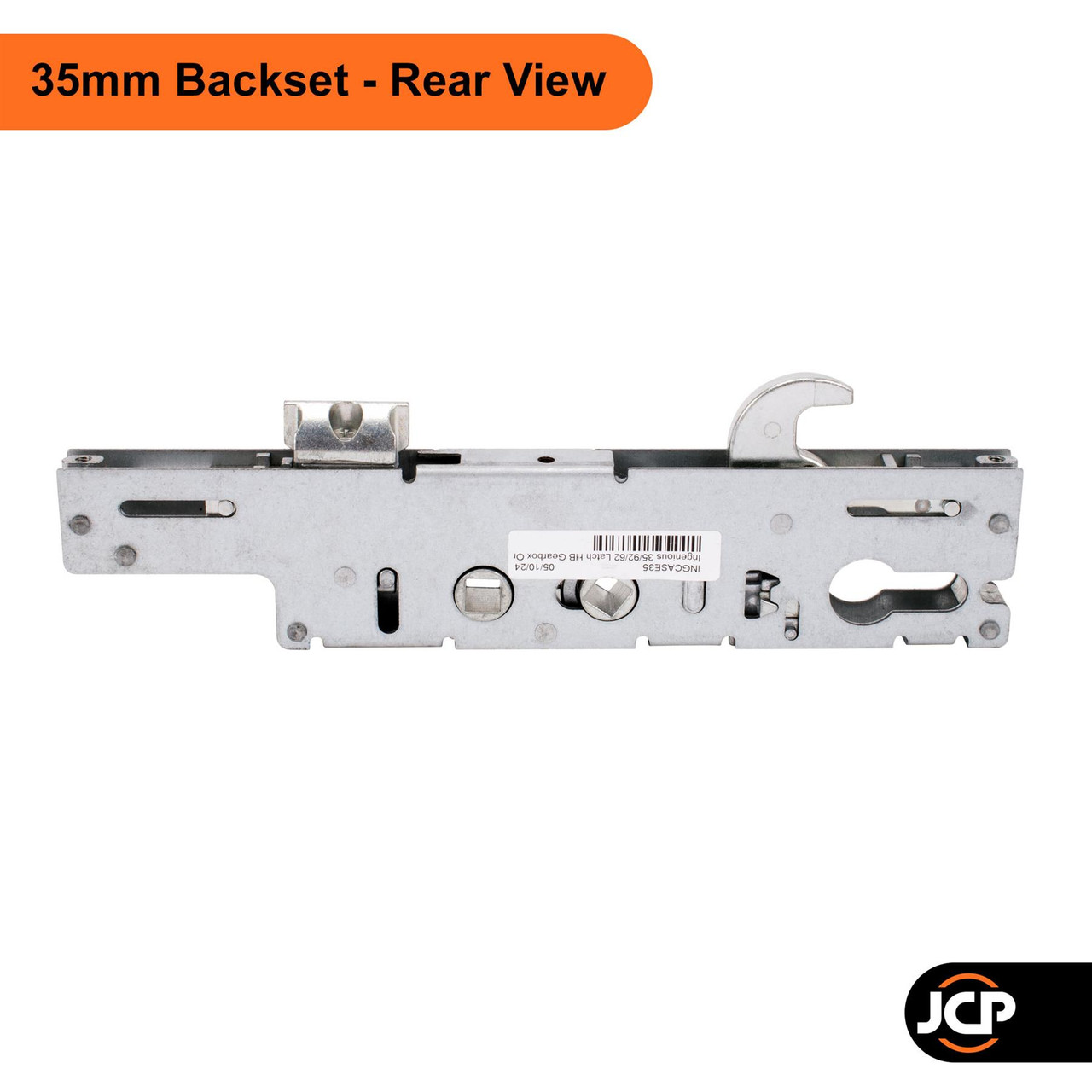

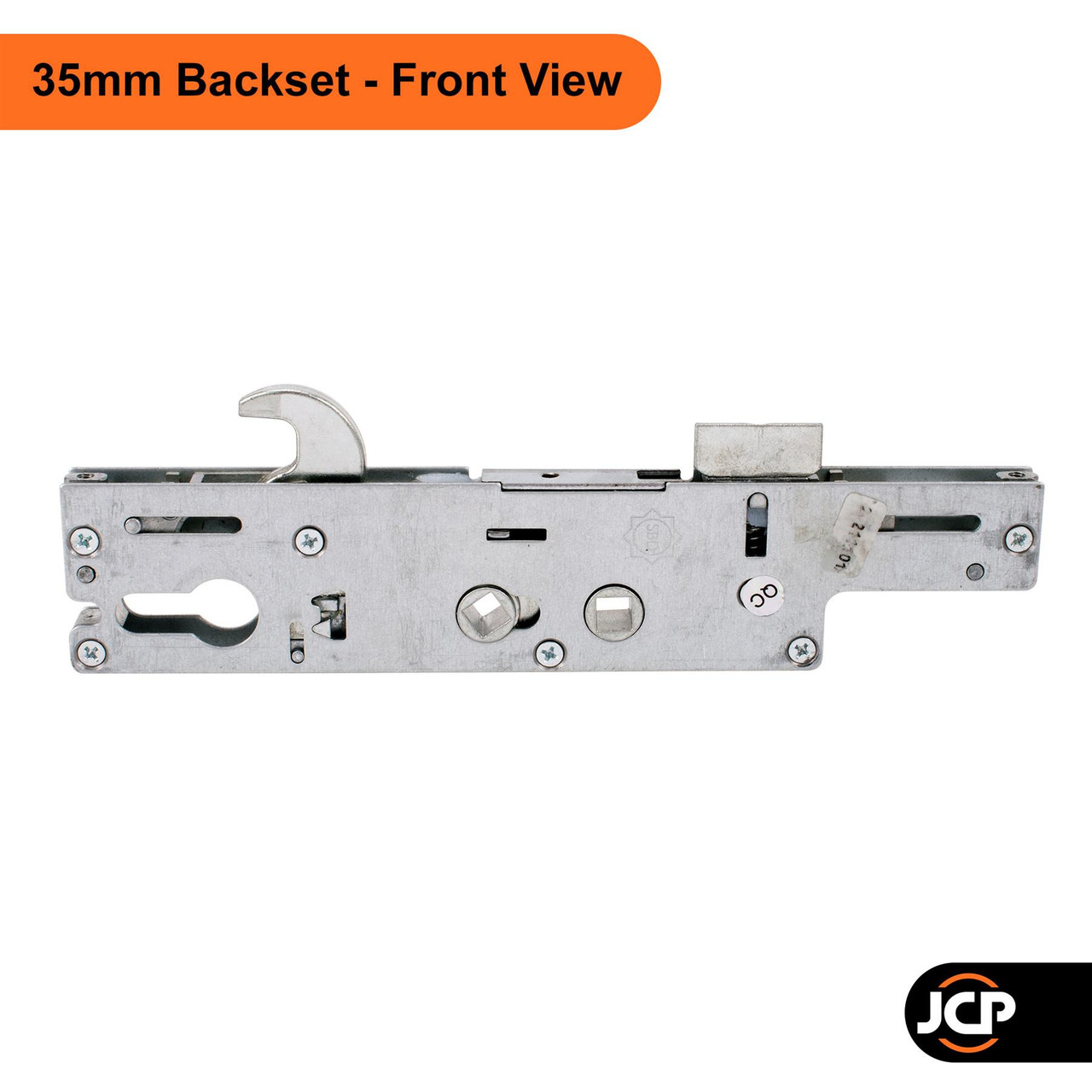

• 35mm and 45mm backset options

What's in the pack?

1 x Ingenious Double Spindle Door Lock Gearbox Case 35mm or 45mm

Dimensions:

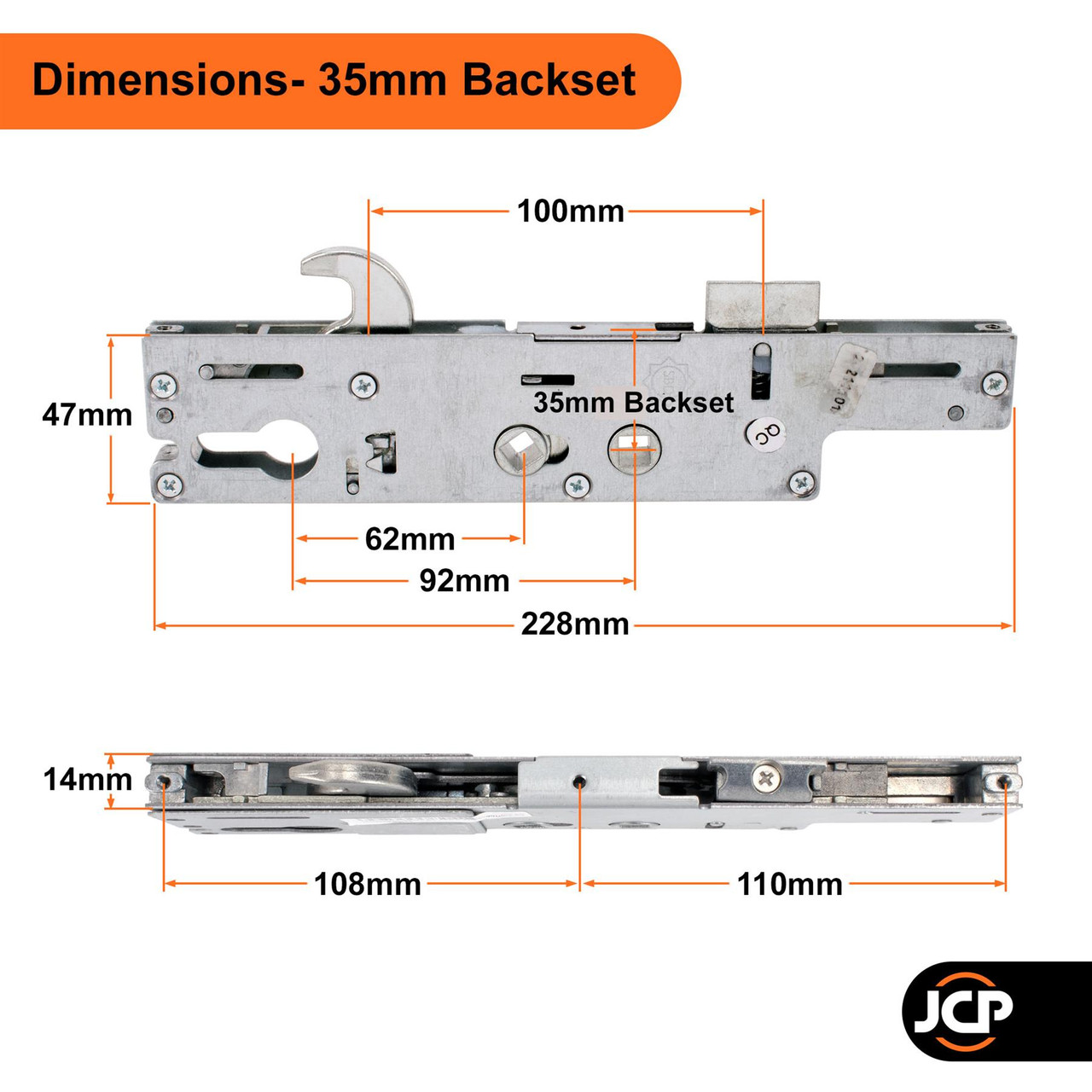

• Lock case length: 228mm
• Lock case depth - 45mm Backset: 57mm (Excluding faceplate)
• Lock case depth - 35mm Backset: 47mm (Excluding faceplate)
• Lock case width: 14mm
• PZ: 92/62mm
• Backset: 35mm or 45mm
• Screw fixing centres: 108mm (Bottom to middle)
• Screw Fixing Centres : 110mm (Top to middle)
• Latch to hook centres: 100mm

What should I check before ordering a new door lock gearbox case?

The most important measurements are the backset (the distance from the centre of the handle spindle to the front of the faceplate) and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.

How to reverse the latch:

Before fitting make sure the latch is facing the correct way, if not please loosen the screw in the front of the latch, gently pull the latch clear of the case, rotate it 180° to the required position and retighten the screw.
