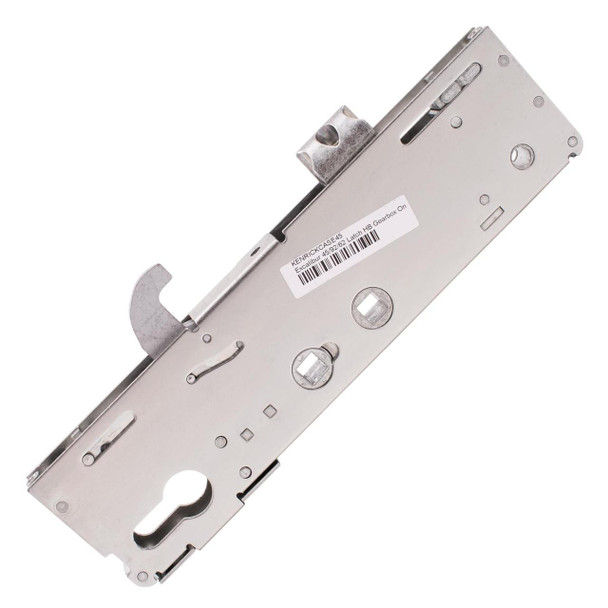

Kenrick Excalibur Gearbox for Multipoint Door Lock 35mm 45mm Backset 92 62 PZ

Excalibur Gearbox Door Lock Centre Case Mechanism 92/62 PZ Twin Spindle 35mm or 45mm Backset Kenrick Ingenious Winlock

The Excalibur gearbox door lock centre case could be the perfect solution if your door lock starts acting up - chances are the gearbox is the culprit. The Excalibur Gearbox Door Lock Centre Case Mechanism is the ideal replacement for faulty or worn locks, offering a reliable, durable solution to restore your door’s security and functionality. Designed for Kenrick Excalibur locks and compatible with Winlock, and Ingenious locks, this versatile gearbox ensures seamless compatibility and effortless operation.

Crafted from robust steel with a sintered steel hook, this mechanism is built to last. With endurance testing to 100,000 operations it delivers exceptional performance and peace of mind. Whether you need a 35mm or 45mm backset, the Excalibur Gearbox Centre Case Mechanism caters to your door’s specific requirements, complete with a reversible latch for left or right-handed doors.

Features:

• Reversible latch for left or right handed doors
• Twin spindle
• Replacement gearbox for Kenrick Excalibur locks
• Compatible with Winlock & Ingenious Locks

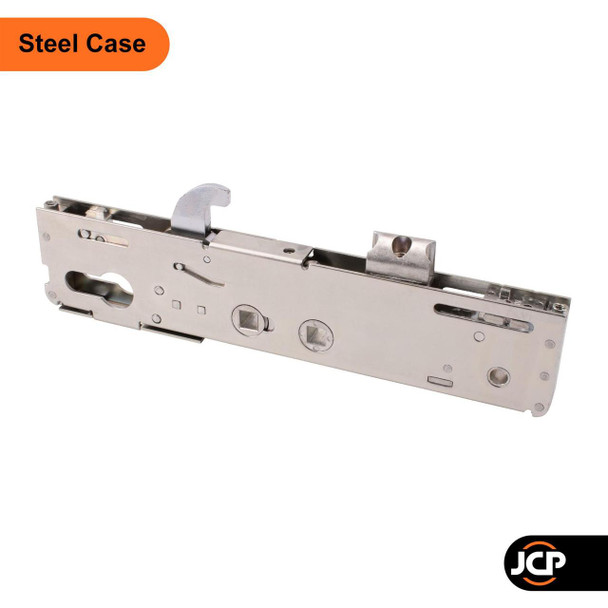

• Material: Steel
• Sintered Steel hook
• 35mm and 45mm backset options
• Performance: Endurance tested to 100,000 operations

What's in the pack?

1 x Excalibur Door Lock Gearbox Case 35mm or 45mm

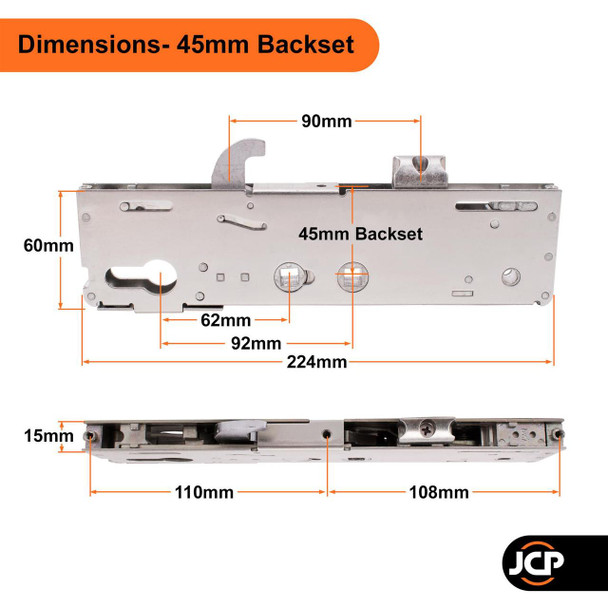

Dimensions:

• Lock case length: 224mm
• Lock case depth : 60mm (45mm Backset)
• Lock case depth : 50mm (35mm Backset)
• Lock case width: 15mm
• PZ: 92/62mm
• Backset: 35mm or 45mm
• Screw fixing centres: 110mm (Bottom to middle)
• Screw Fixing Centres : 108mm (Top to middle)
• Latch to hook centres: 90mm

What should I check before ordering a new door lock gearbox case?

The most important measurements are the backset (the distance from the centre of the handle spindle to the front of the faceplate) and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.

How to reverse the latch:

Before fitting make sure the latch is facing the correct way, if not please loosen the screw in the front of the latch, gently pull the latch clear of the case, rotate it 180° to the required position and retighten the screw.
