Ingenious Gearbox for Multipoint Door lock 30mm Backset 92 PZ

Ingenious Multipoint Gearbox Door Lock Centre Case Mechanism 92 PZ Single Spindle 30mm Backset Ultimate Collection Origin

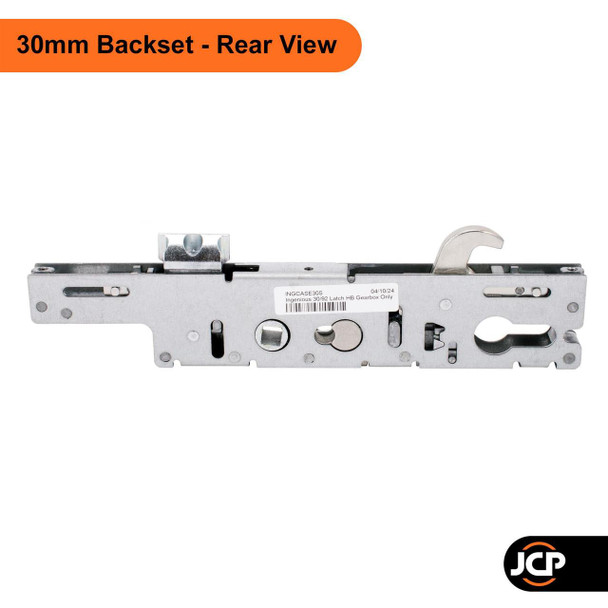

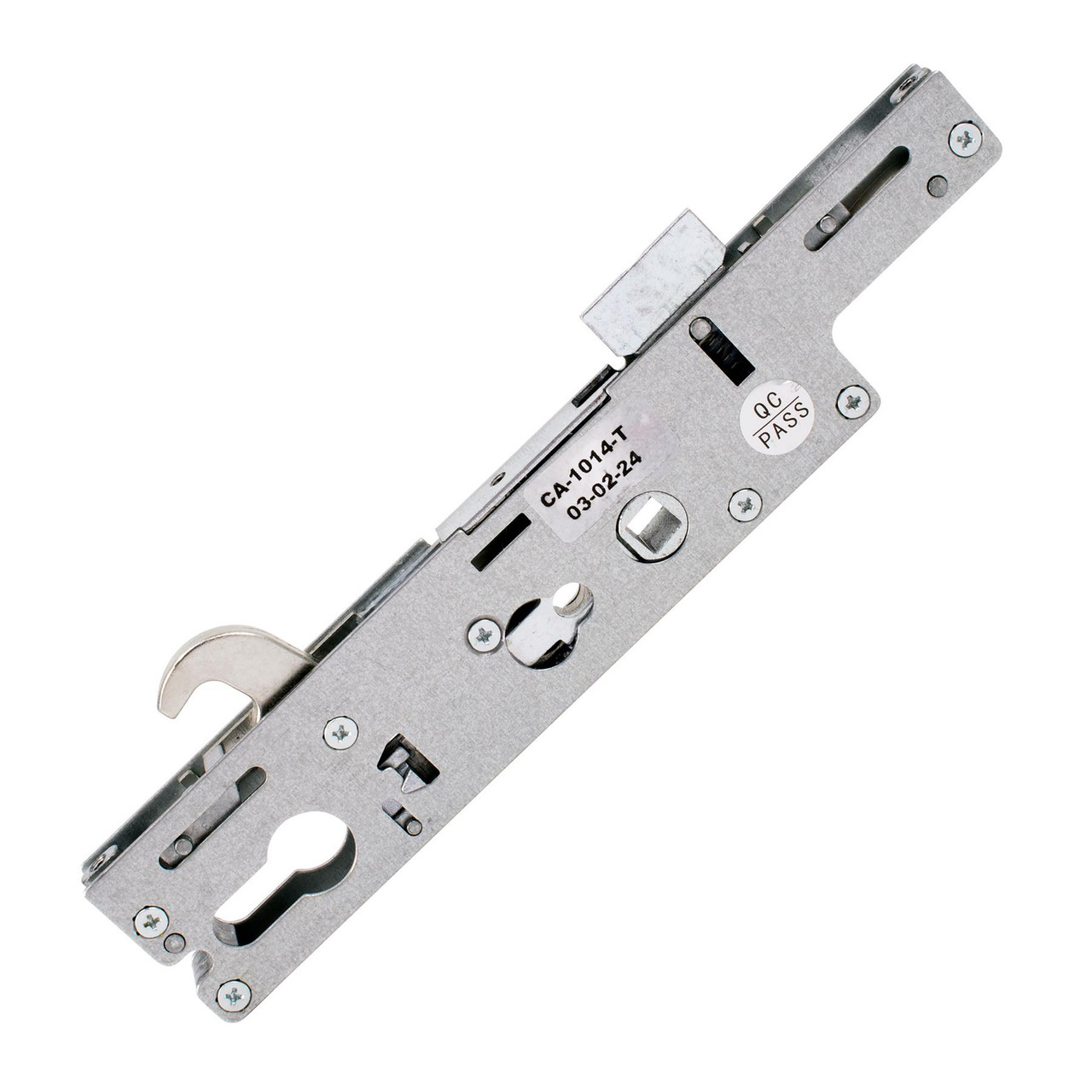

The Ingenious Multipoint Gearbox Door Lock Centre Case is a perfect upgrade for your door security. This innovative gearbox features a single spindle arrangement with 92mm PZ centres, making it ideal for versatile door furniture compatibility. Crafted with precision its compact yet robust design measures 228mm in height, with screw hole spacing of 110mm (top to middle) and 108mm (middle to bottom), ensuring a secure fit to the faceplate. Comes complete with a reversible latch for left or right-handed doors.

Designed with both functionality and durability in mind, the Ingenious Multipoint Gearbox is built to perform seamlessly in high-traffic residential and commercial settings. The gearbox’s high hook and latch, spaced 85mm ensure a strong and reliable locking mechanism. Ingenious gearboxes do bear a resemblance to the Fullex XL series, so to double check, we recommend comparing the hook boxes against the pictures as they are distinct. Perfect for retrofitting or new installations, this gearbox is compatible with unsprung door furniture, although we recommend using sprung handles for optimal performance. Whether upgrading your doors for added security or replacing an existing mechanism, this gearbox combines strength, versatility, and innovative features to meet all your locking needs.

Features:

• Reversible latch for left or right handed doors
• Single 8mm spindle
• Genuine replacement gearbox for Ingenious locks
• Ingenious - also known as Ultimate Collection Origin
• Main gearbox: Latch and hook
• Material: Steel
• 30mm backset options

What's in the pack?

1 x Ingenious Single Spindle Door Lock Gearbox Case 30mm

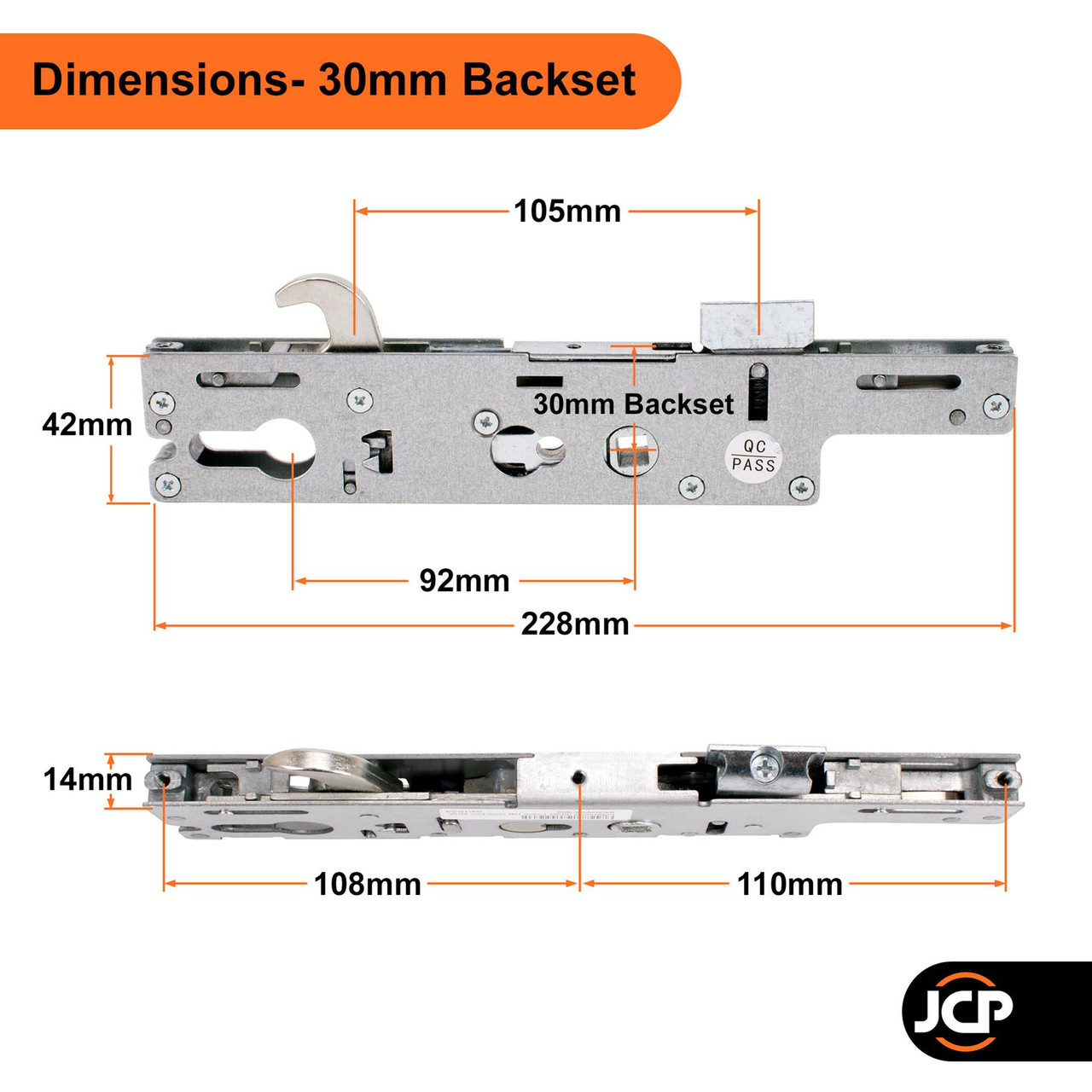

Dimensions:

• Lock case length: 228mm
• Lock case depth - 30mm Backset: 42mm (Excluding faceplate)
• Lock case width: 14mm
• PZ: 92mm
• Backset: 30mm
• Screw fixing centres: 108mm (Bottom to middle)
• Screw Fixing Centres : 110mm (Top to middle)
• Latch to hook centres: 105mm

What should I check before ordering a new door lock gearbox case?

The most important measurements are the backset (the distance from the centre of the handle spindle to the front of the faceplate) and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.

How to reverse the latch:

Before fitting make sure the latch is facing the correct way, if not please loosen the screw in the front of the latch, gently pull the latch clear of the case, rotate it 180° to the required position and retighten the screw.
