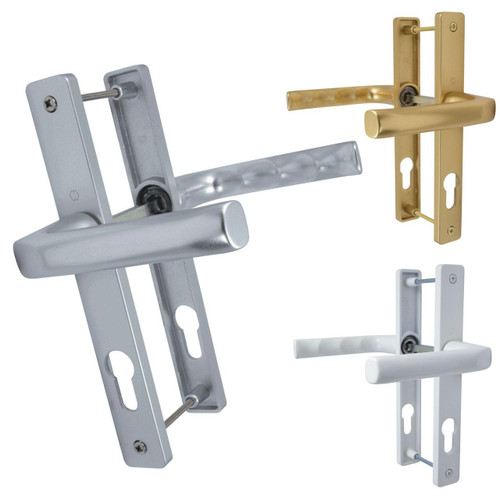

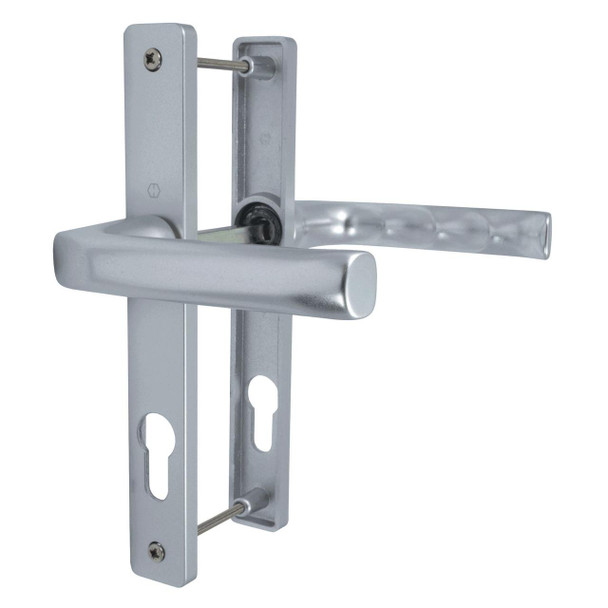

Hoppe London UPVC Door Handle Pair 72mm PZ 180mm Fixings

UPVC Door Handle Hoppe London 72mm PZ 180mm Fixings Pair Set for Fuhr Locks

The Hoppe London 72mm Door Handle is expertly crafted to complement Fuhr 72mm door locks. Boasting a superior finish and robust construction, this handle promises durability and enduring aesthetic appeal. Conforming to DIN EN 1906: 26-0130U standards, it features a sleek, narrow backplate.

The design incorporates unsprung levers, which are permanently attached to the backplate and can be reversed, making it suitable for both left and right-handed applications.

Features:

• Fits the Fuhr 72mm door lock
• High quality finish
• Quality construction
• Aesthetically pleasing
• Tested to DIN EN 1906: 26-0130U
• Set on a narrow backplate
• Unsprung
• Fully reversible

What's in the pack?

1 x UPVC Door Handle Hoppe London 72mm PZ 180mm Fixings Pair Set for Fuhr Locks

1 x Spindle

2 x 80mm Fixing Screws

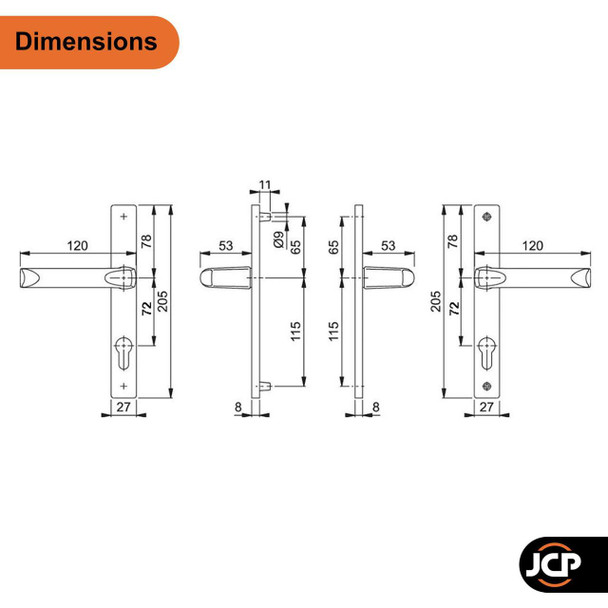

Dimensions:

• PZ Centres: 72mm
• Distance between screw hole centres: 180mm
• Backplate length: 205mm
• Backplate width: 27mm
• Lever length: 120mm
• Spindle size: 150mm x 8mm
• For door thickness: Up to 70mm (Screw & spindle can be trimmed for thinner doors)

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 180mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 72mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

What does un-sprung mean?

Un-sprung means the handle will use the door lock spring to return to position. There are a few door locks that will use a sprung handle to return the lever to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle.
