Upvc Door Handle 47PZ 47mm 48PZ 48mm 215mm Screw Fixing Centres Lever/Lever London Hoppe - Suit ABT Monarch Union

The Hoppe London door handle set comes with a high quality finish that is made to endure giving you years of use. The levers and backplate are manufactured in corrosion resistant aluminium. This Sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors. The return spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sag.

The London 47PZ Door handle set is designed to replace handles with 47-48mm cylinder centres (distance from centre of handle spindle to centre of barrel) and a distance between screw hole fixings of 215mm.

Please note this handle set will NOT fit Union 3 point locks i.e. L22174, L22180 and L22172.

Features:

• 47PZ (47-48mm critical dimension) from centre of handle spindle to centre of barrel
• Supplied as a pair complete with spindle and screws
• Fully Sprung with 2 x spring cassettes supplied
• Cast aluminium levers & stamped aluminium backplate
• Fully reversible to fit both left or right hung doors

What's in the pack?

1 x Set of Hoppe London 47PZ Lever Door Handles

1 x 8mm Spindle at 120mm (130mm spindle on gold variation)

2 x Screws at 45mm (65mm screws on gold variation)

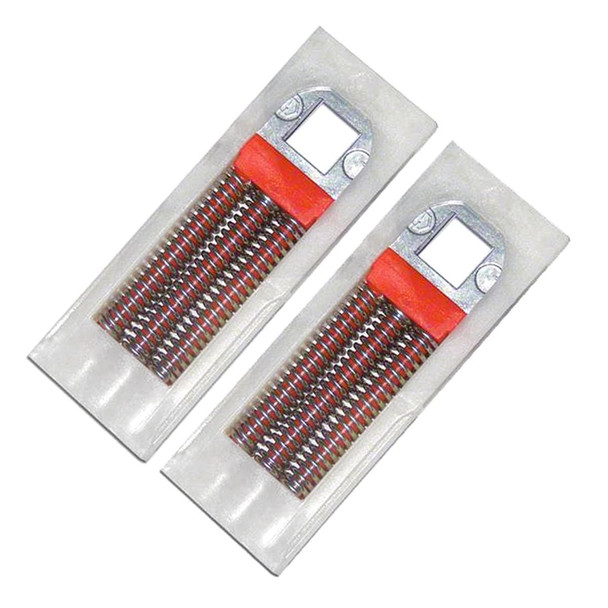

2 x Spring cassettes packed loose

Dimensions:

• 47 - 48PZ (47mm critical dimension) from centre of handle spindle to centre of barrel
• Spindle Size: 8mm
• Screw Centres: 215mm
• Backplate Length: 235mm
• Backplate Width: 28mm
• Spindle Width: 8mm square
• Spindle Lengths: 1 at 120mm (130mm spindle on gold variation)
• Screw Lengths: 2 at 45mm (65mm screws on gold variation)

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 215 mm) and the distance from the centre of the handle spindle to the centre of the keyhole (this handle measures 47mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

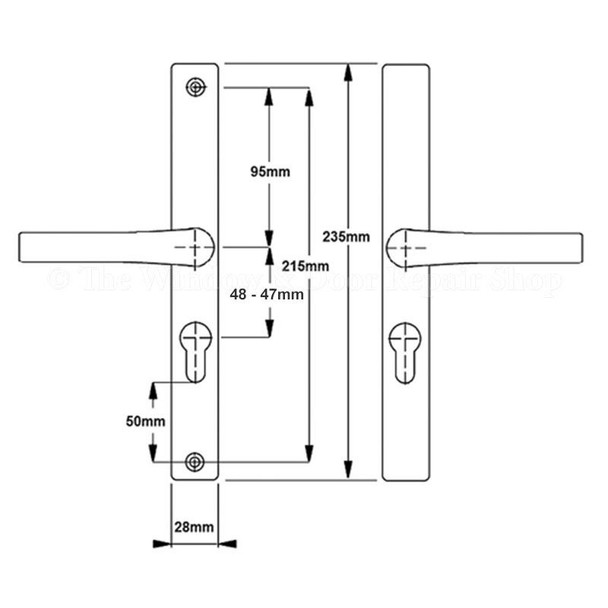

Important please check the above critical measurements before ordering. Please see image gallery diagram.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
