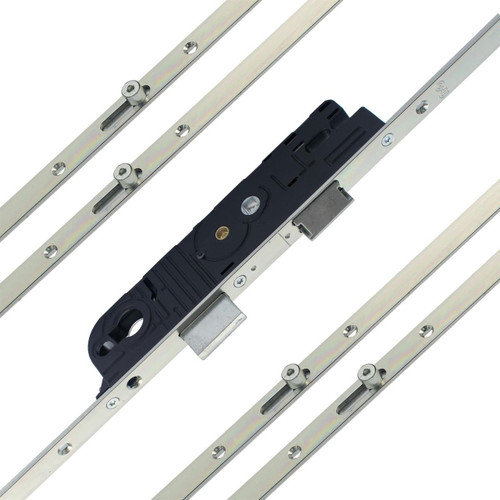

Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ

Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ

The Gu Ferco Europa 4 roller cam door lock has been fitted to thousands of PVC-u doors over the past decade, many of which are now beginning to show their age. Fortunately it can easily be replaced, the skill level needed to accomplish this is well within the grasp of the average DIY person. It can be trimmed to size and features a fully reversible latch.

This is the full mechanism and can be used to replace any existing G.U door lock with a 28mm backset.

Features:

• 4 Rollers
• Latch and Deadbolt
• Reversible Latch
• Lever - lever operation
• Can be trimmed to size

What's in the pack?

1 x Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ

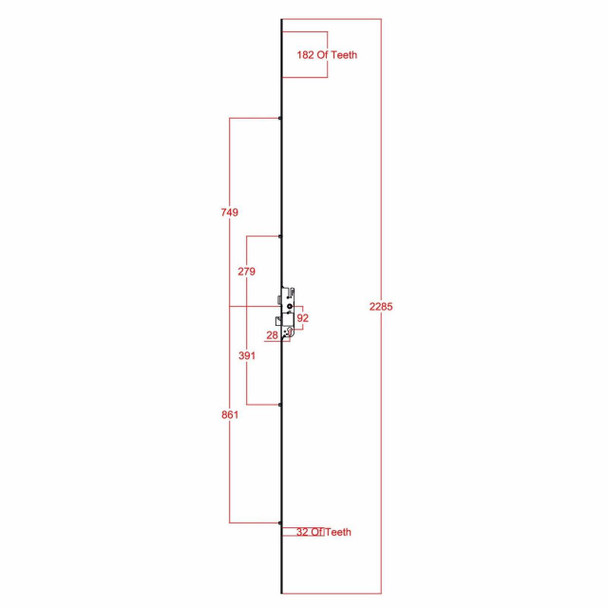

Dimensions:

• Overall Length: 2285mm
• Centre of gearbox to top roller: 749mm
• Centre of gearbox to bottom roller: 861mm
• PZ: 92mm
• Backset: 28mm
• Faceplate Width: 16mm

What should I check before ordering a new door lock?

The most important measurements are the back-set and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
