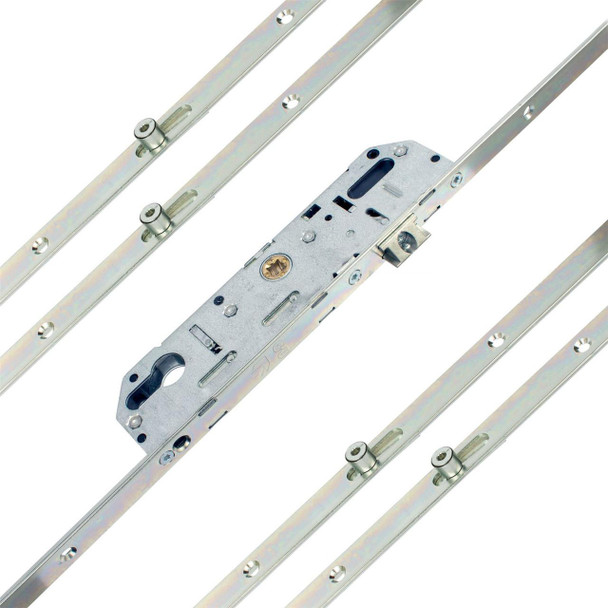

GU Ferco 6.35 Multipoint Door Lock 4 Roller 35mm Backset 70PZ

GU Ferco 6.35 Multipoint Door Lock 4 Roller 35mm Backset 70PZ

The perfect replacement lock for older style doors.

The Ferco 6.35 door lock has been fitted to thousands of PVC-u doors over the past decade, many of which are now beginning to show their age. Fortunately, you can easily replace the Ferco 6.35 door lock, the skill level needed to accomplish this is well within the grasp of the average DIY person. The job should take no more than 1 hour from start to finish.

The GU Ferco 6.35 4 Point Door Lock is suitable for older style doors with lever-lever applications. Available in a 35mm backset with 70PZ centres.

The Ferco 6.35 will Also Replace 035, 235, 335, 435, 535 Door Locks

Features

• 4 rollers & 1 latch bolt
• 35mm Back set (Next to the word 'Ferco' on the face plate will be 3 numbers, the last 2 numbers designate the backset size ie 6.35)
• 70mm Centres (spindle centre to lock centre) PZ
• 16mm wide steel face plate
• Easily handed Left hand or Right hand by simply turning the latch
• Lever Lever operation

Measurements

• Overall Length - 2200mm
• Centre of gearbox to top hook - 617mm
• Centre of gearbox to bottom hook - 675mm
• 70PZ
• 35mm Backset
• Faceplate Width - 16mm

Whats in the pack?

1 x GU Ferco 6.35 Multipoint Door Lock

What should I check before ordering a new door lock?

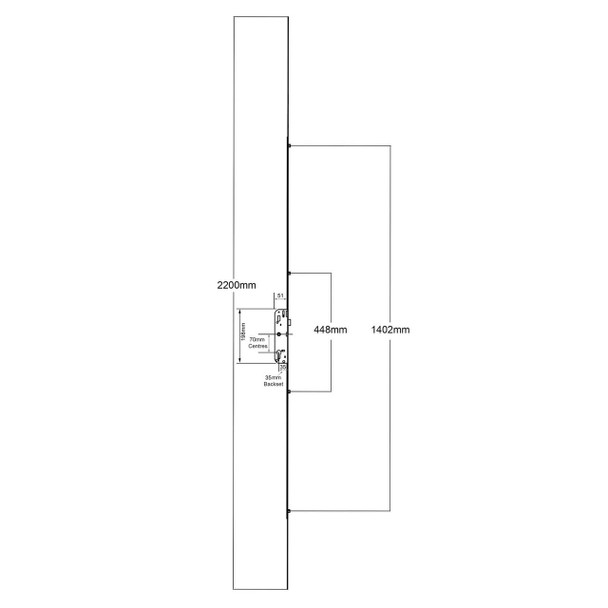

The most important measurements are lock Back-set and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements are highlighted red in the technical diagram below. The diagram height measurement below shows the full un-cut lock height, you will probably have to cut the new door lock to fit your existing door. The best way to carry out this is to remove your old lock, then place on top of your new lock, making sure to line up the lock centre casings before you mark the cut line top and bottom. A simple sharp hacksaw will easily cut through the lock faceplate.

The Ferco 6.35 will also replace the 035, 235, 335, 435, 535 door locks

The centre latch is non-handed, therefore can easily be reversed unscrewing the retaining screw. You should also check the locking points and type, the Ferco 6.35 is fitted with 4 X Roller cams and 1x center latch. It is possible that your door lock is fitted with only 2 roller cam locks, as long as the other measurements match up this will simply mean the extra 2 roller cams will be left floating. This will in no way effect the performance of the lock.
