Description

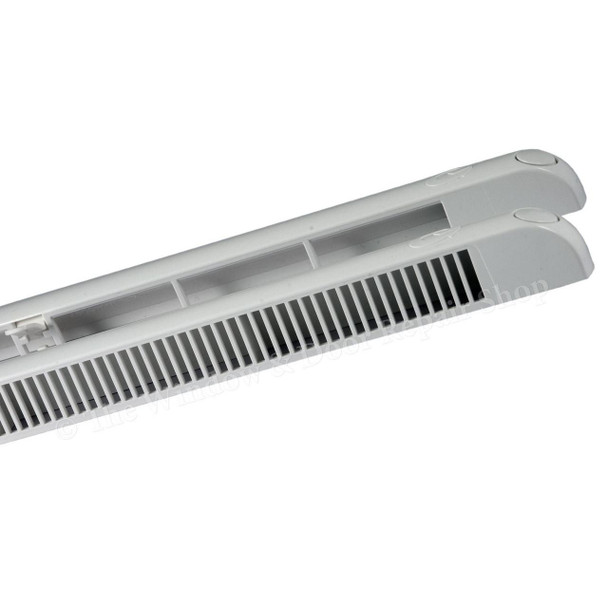

Greenwood Trickle Vent F Vent
Our easy to fit Greenwood Trickle vents can be fitted to windows or doors (Upvc or timber). The slimline design ensures an unobtrusive finish and once fitted the vent can be closed and opened as necessary.
In an economic climate where we are insulating and draught proofing our homes to keep energy costs down, we forget that we need to ventilate our rooms to release the trapped moisture that our bodies breath into the air; tasks such as cooking, ironing and washing dishes add daily to the problem. Fitting trickle vents will help with condensation problems and in turn alleviates issues with damp and mould.
Features:
- Screw fixed (screws included)
- Provides 2000mm² (1250FB) or 4000mm² (2500FB) free area ventilation
- Internal and external canopy included
- Manufactured from PVCu
What's in the pack?
1 x External canopy
1 x Internal canopy
Fixing screws and covers
Dimensions:
1250FB - 2000mm²
- Length: 238mm
- Height: 16.5mm
- Depth: 23mm
- EA: 1362mm² (13mm route)
2500FB - 4000mm²
- Length: 383mm
- Height: 16.5mm
- Depth: 23mm
- EA: 2634mm² (13mm route)
Please see measuring guide.
Fitting Guide:
- Prepare slots and pre-drill fixing holes (please see diagram in gallery). Avoid glazing rebates and reinforcements.
- Fix canopies etc. using screws and attach screw covers. DO NOT OVER TIGHTEN!
