Description

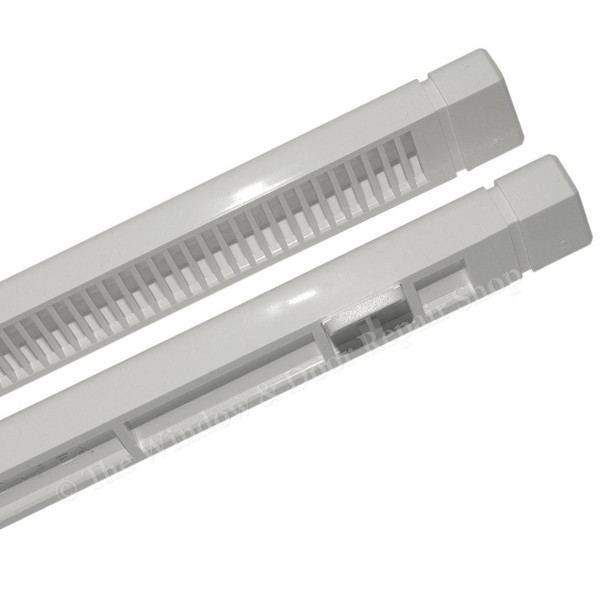

Greenwood Trickle Vent L Vent
Greenwood’s L Trickle Vent is suitable for all window types and provides trickle ventilation in line with current Building Regulations, available in a two sizes to suit most needs. Supplied as a complete package, the internal mechanism opens from the bottom to provide easy trickle ventilation. The external canopy provides excellent weather protection from insects. Aesthetically pleasing and manufactured from rigid UV stable PVCu, the L Vent is simply screw fixed to the window frame and is supplied with push fit cap covers to conceal fixing points.
Features:
- Up to 3200mm2 equivalent ventilation area
- Slimline design for low profile window frames
- Bottom operation Small 10mm slot rout
- Manufactured from UV stable PVCu
- Fixing screws supplied
- Tested to current British standards
- Choice of colours white, brown or tan
What's in the pack?
1 x External hood with integral flyscreen
1 x Internal control unit
Fixing screws and covers
Dimensions:

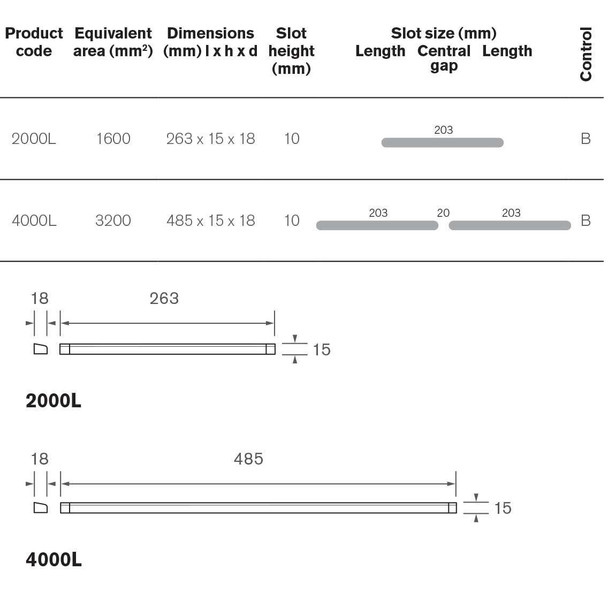

Please see technical diagram in gallery.
Fitting Guide:
- Prepare slots and pre-drill fixing holes (please see diagram in gallery). Avoid glazing rebates and reinforcements.
- Fix canopies etc. using screws and attach screw covers. DO NOT OVER TIGHTEN!
