Description
Yale SlotVent Trickle Vents with Noise Reduction 252mm (2500EA), 386mm (4000EA) or 467mm (5000EA) Night Slot Ventilation Facility UPVC & Timber Windows
Designed and developed in the UK, Yale’s Branded SlotVent is Document F compliant and allows an appropriate amount of air to pass through the window, helping to remove stale air and reduce condensation and mould. The vent also enables people in cities or living near busy roads to benefit from ventilation without having to open their windows.
The range includes noise reduction trickle vents with 2500, 4000 or 5000 equivalent areas (EA), the measure of aerodynamic performance of the ventilator and the measurement specified in building regulations.
Yale SlotVent is supplied with pre-fitted clips for easy installation with optional screw holes to fit optimal 13mm slot. Internal vent: The vent can be tilted to 30°, 60° or 90° degrees according to ventilation requirements. This vent includes a foam gasket for noise and draft reduction; this gasket reduces air leakage by at least 40% which in turn lowers noise pollution as well.
The Yale SlotVent has been designed and tested to comply with the building regulations England and Wales requirement F- Means of Ventilation and the Scottish building regulations October 2011 Standard 3.14

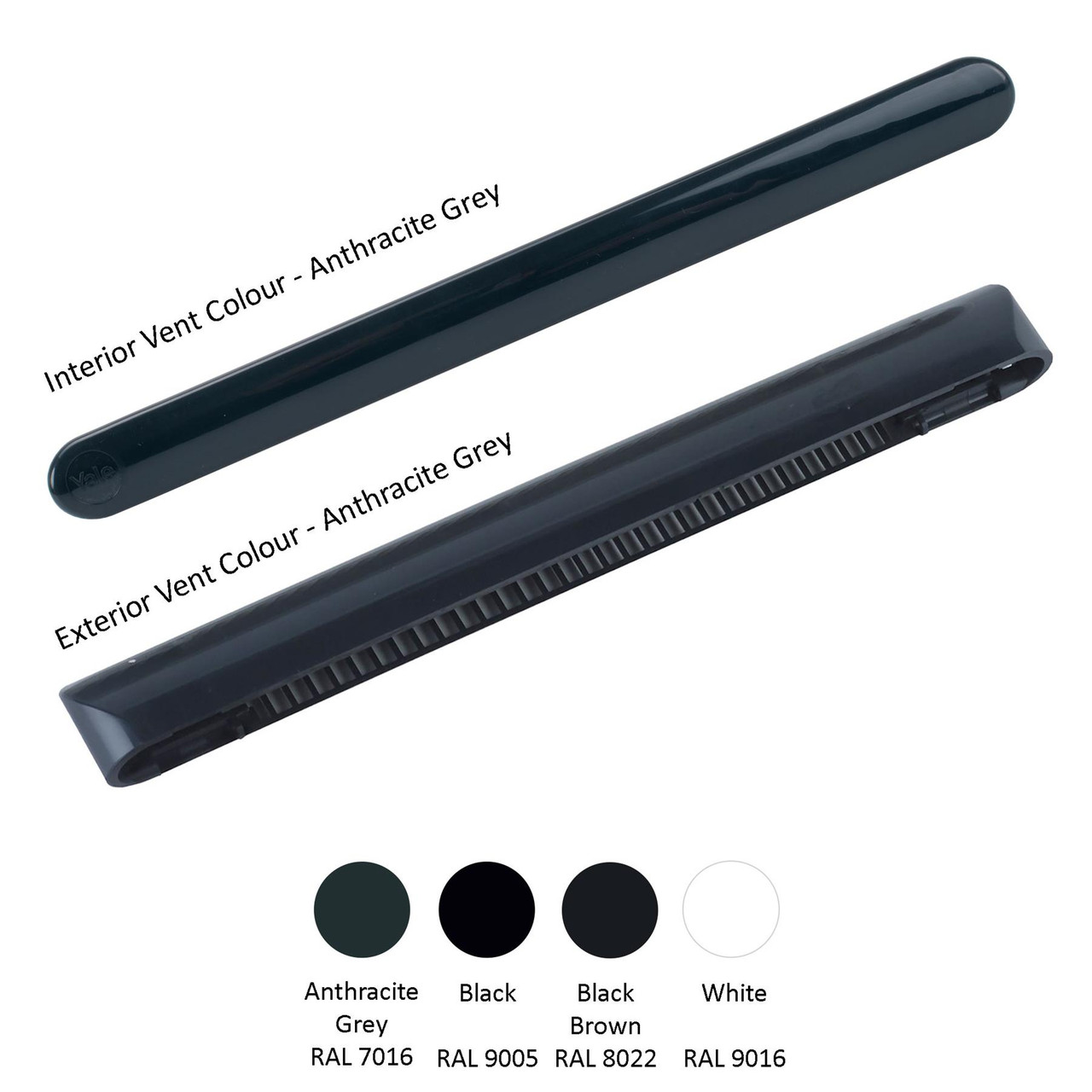

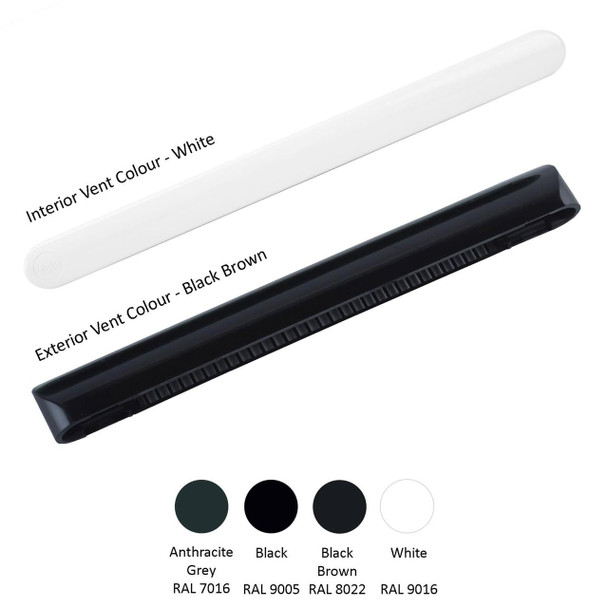

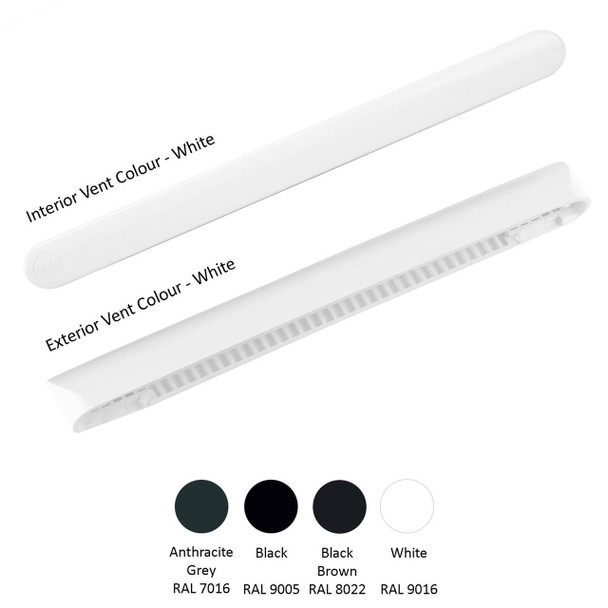

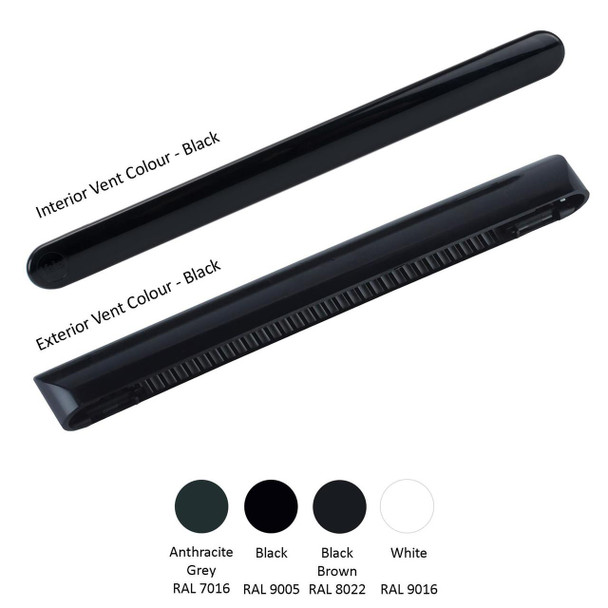

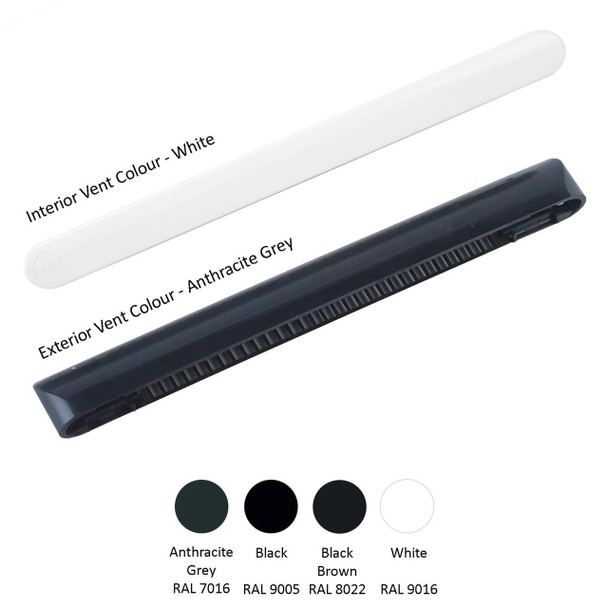

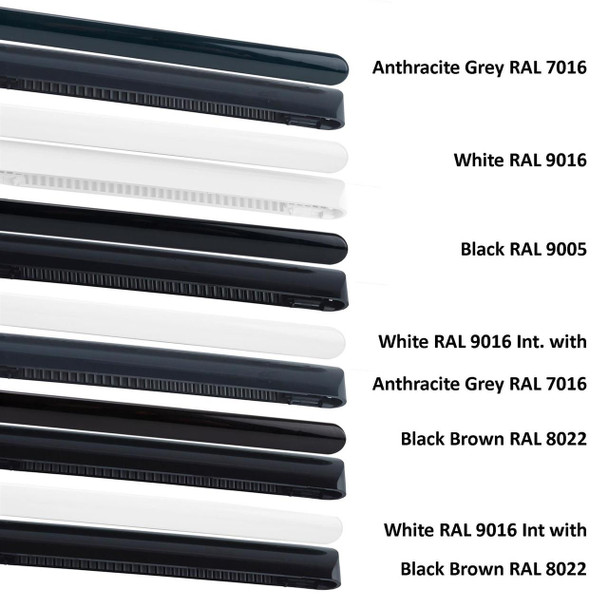

*Please note the Black Brown vent matches the RAL colour RAL 8022 and is suitable for Rosewood and Mahogany windows and doors (this is a very dark black/brown colour and will NOT match Irish Oak (RAL 8003) or Tan (RAL 1011).
Features:

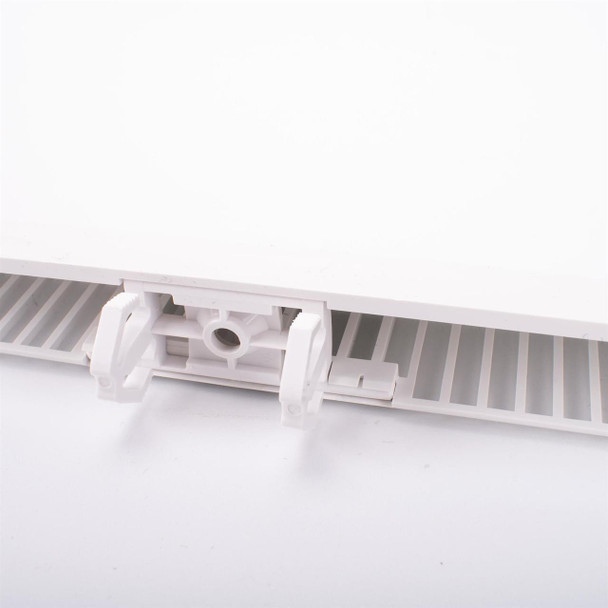

- Pre fitted clips for easy installation with optional screw holes (screws provided) to fit optimal 13mm slot
- All fixings are concealed to maintain a sleek style that is pleasing to the eye (separate screw covers are not required)
- Curved external hood to prevent water entering the home

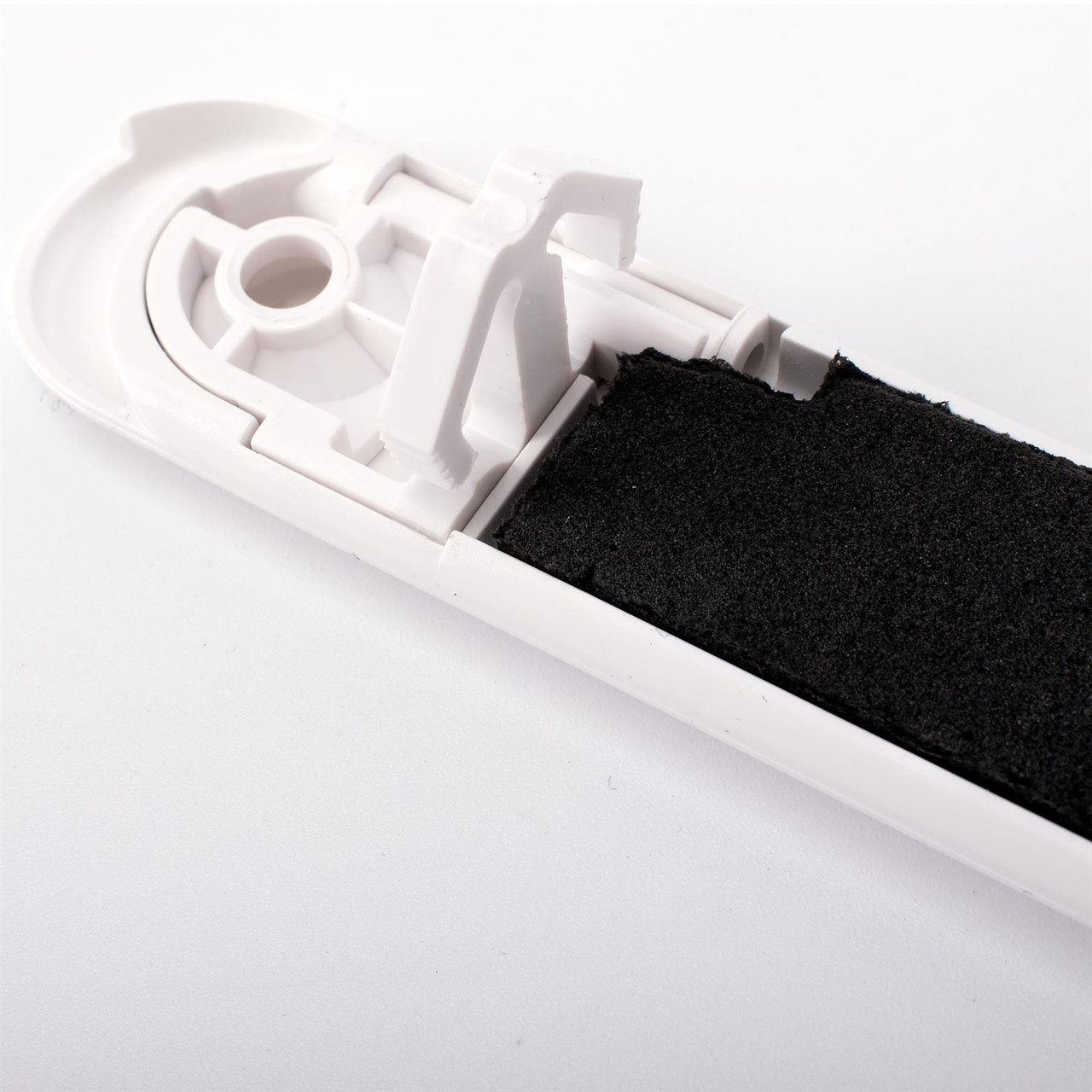

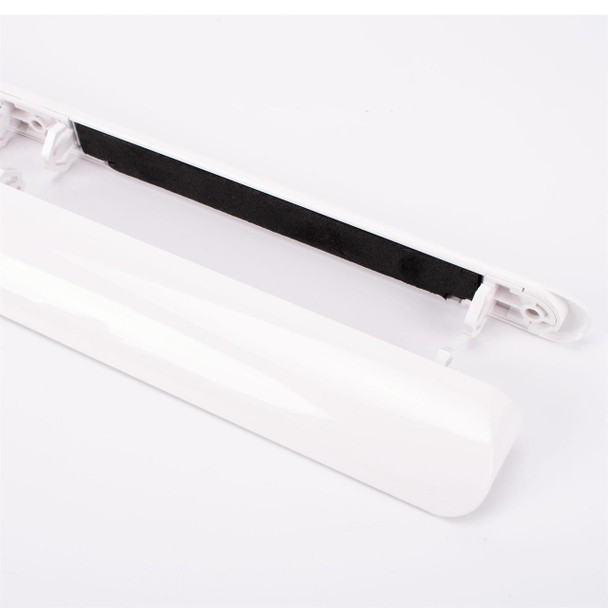

- Foam gasket on the internal vent reduces air leakage by at least 40% and offers a reduction in both noise and draughts

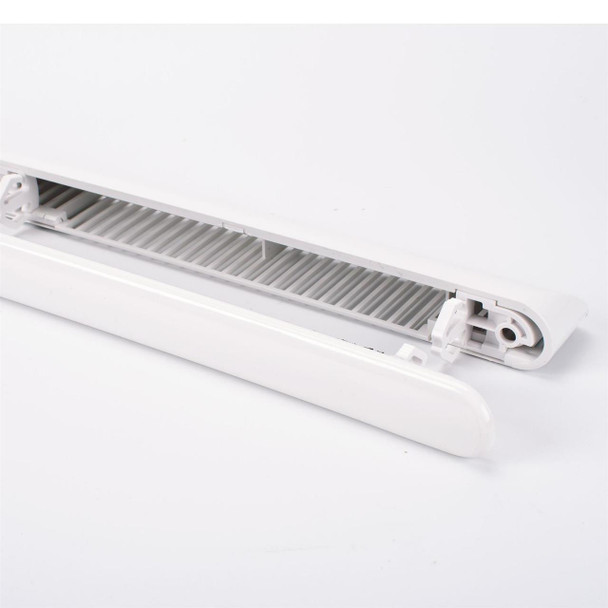

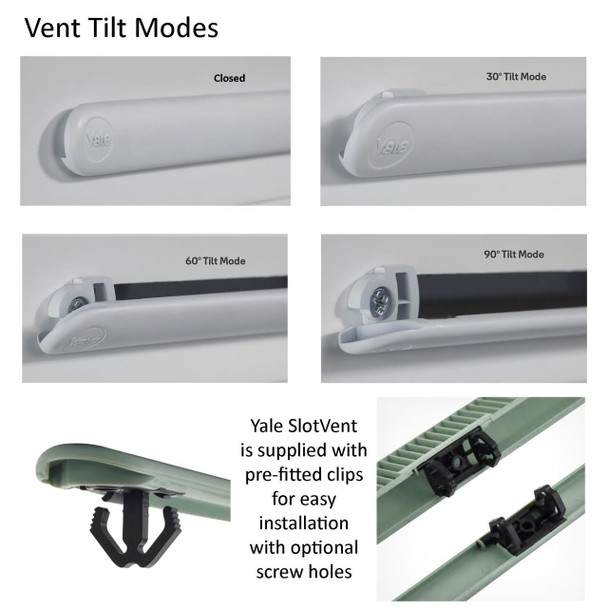

- Fully controllable ventilation that can be closed or tilted open to 30°, 60° or 90°
- Suitable for timber, aluminium, PVCu or composite windows
- Available in 252mm (2500EA), 386mm (4000EA) or 467mm (5000EA) lengths
- Ideal for night ventilation, does not compromise security
- Material ASA Resin, weather, colour fade and UV resistant
- Slim, adjustable ventilation to comply with the new building regulations
- Achieves the required equivalent area (EA) to comply with Approved Document F with the smallest ventilation footprint on the market
- A robust, smooth slim elegant rounded design
- Noise Reduction: Provides ventilation without opening windows, useful for those living in urban or noisy areas
- Reduced Odours: Water vapour and odours can be reduced when cooking, washing and bathing
- Condensation and mould reduction: Airflow from open vents can reduce the likeliness of mould and condensation
- Independently tested at BRE to EN13141-1: 2009 & BS EN ISO-1 & 2 Acoustics
What's in the pack?
1 x External hood with integral flyscreen
1 x Internal vent with noise/draught reducing foam gasket and fully controllable ventilation
1 x Screw Pack

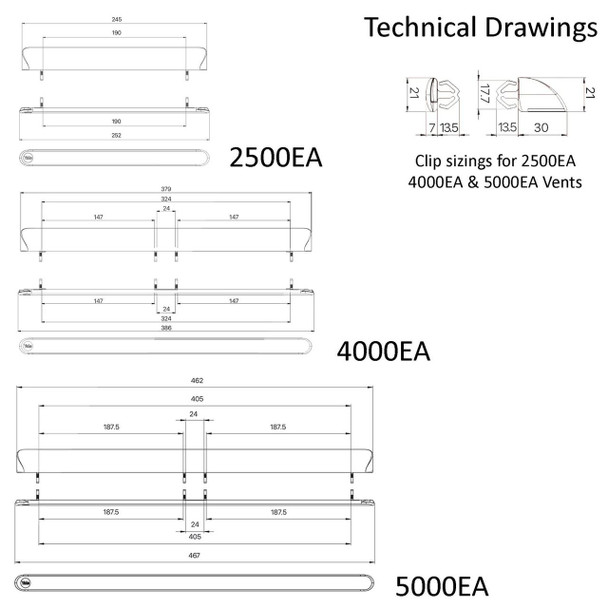

Dimensions:
252mm:
- Width: 252mm
- Height: 20mm
- Slot Size: 209 x 13mm
- Screw fixings: 220mm
- EA Air Flow: 2500mm
386mm:
- Width: 386mm
- Height: 20mm
- Slot Size: 332mm (166mm/11mm gap/166mm) x 13mm
- Screw fixings: 354mm (177mm first to middle, 177mm middle to last)
- EA Air Flow: 4000mm
467mm:
- Width: 467mm
- Height: 20mm
- Slot Size: 413mm (206.5mm/11mm gap/206.5mm) x 13mm
- Screw fixings: 435mm (217.5mm first to middle, 217.5mm middle to last)
- EA Air Flow: 5000mm
Fitting guide:

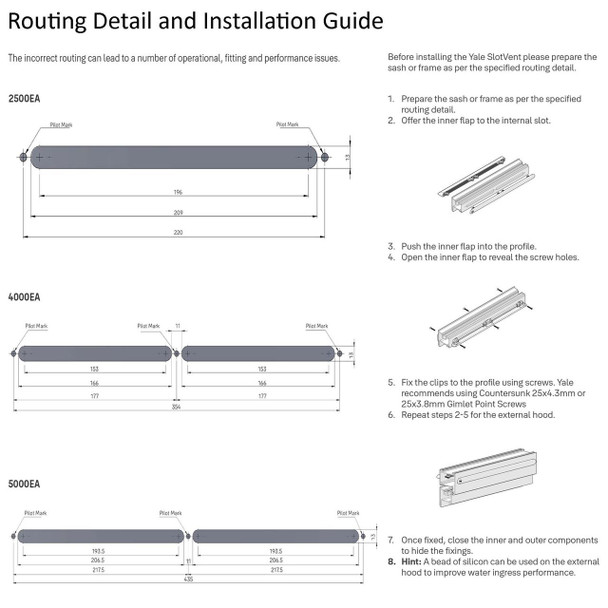

Please refer to the image in the gallery for routing detail and installation guide. Please note that the SlotVents provided are clip fit and have optional screw ports - a screw pack is included for this purpose.
Cleaning & maintenance:
Wipe clean with a damp cloth a couple of times a year. Inspect the weather/fly screen and lightly remove dust and detritus with a soft clean brush.
