Description

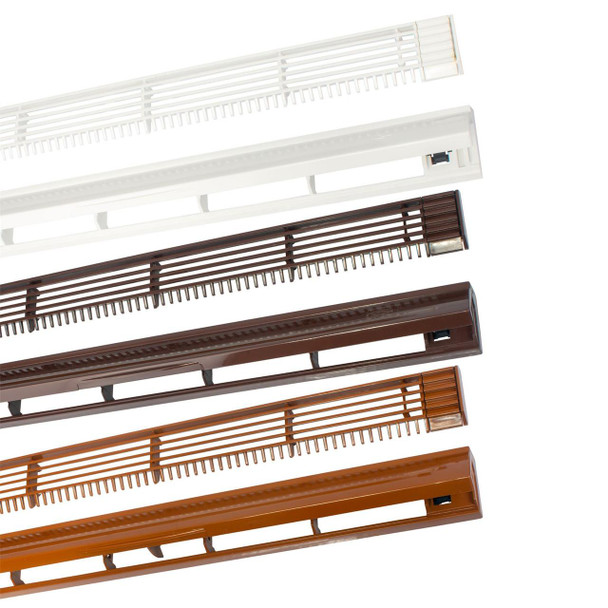

Greenwood 8000HD Trickle Vent HD Vent
Our easy to fit Greenwood 8000HD Trickle vents can be fitted to windows or doors (Upvc or timber), as an aid to controlling condensation. Its design ensures controllable trickle ventilation in line with current Building Regulations. Supplied as a complete unit, the vent comprises an internal vent, manufactured from rigid PVCu, with frame and shutter that is simply snap-locked into place. Upward air deflection also ensures maximum comfort for the end user..
Features:
- Rout detail: Cut 2 slots of 235mm x 18mm. The slots should be 20mm apart
- Screw fixed (screws included)
- Provides 8000mm² free area ventilation
- 6400mm² EA
- Internal and external canopy included
- Manufactured from PVCu
What's in the pack?
2 x Canopies (internal & external)
2 x Shutters
1 x Louvered grille
Fixing screws and covers
Dimensions:
Please see measurement guide
Fitting Guide:
- Prepare slots and pre-drill fixing holes (please see measurement guide). Avoid glazing rebates and reinforcements.
- Fix canopies etc. using screws and attach screw covers. DO NOT OVER TIGHTEN!
Specifications
Performance: |
6400mm² |
