10 Pack greenteQ Alpha uPVC Window Handle Universal Inline Espag Handle

10 Pack GreenteQ Alpha UPVC Inline Espag Window Handle Universal Key Locking Replacement 10, 15, 20, 25, 30, 35 and 40mm Spindles

The GreenteQ Alpha is a premium quality push to open inline espag window handle; featuring an ergonomic handy 'push to release' locking mechanism for ease of use. For extra security, the handle can be locked with the key (included). The Alpha handle has a 7mm square spindle, which makes it compatible with most popular spindle drive shootbolts and espags; with a great range of spindle lengths and an industry standard of 43mm (the distance between screw hole centres) it makes for an easy fitting on nearly all window profiles in the UK.

Not only do the suited colour finishes look great, but the 240 hours (plated coating) and 500 hours (painted coating) neutral salt spray corrosion resistance testing performance figures ensure that your GreenteQ Alpha handle still looks superb after many years of use.

Features

• Contoured handle for ease of use
• Push to release locking mechanism
• 90° stop/click location washer

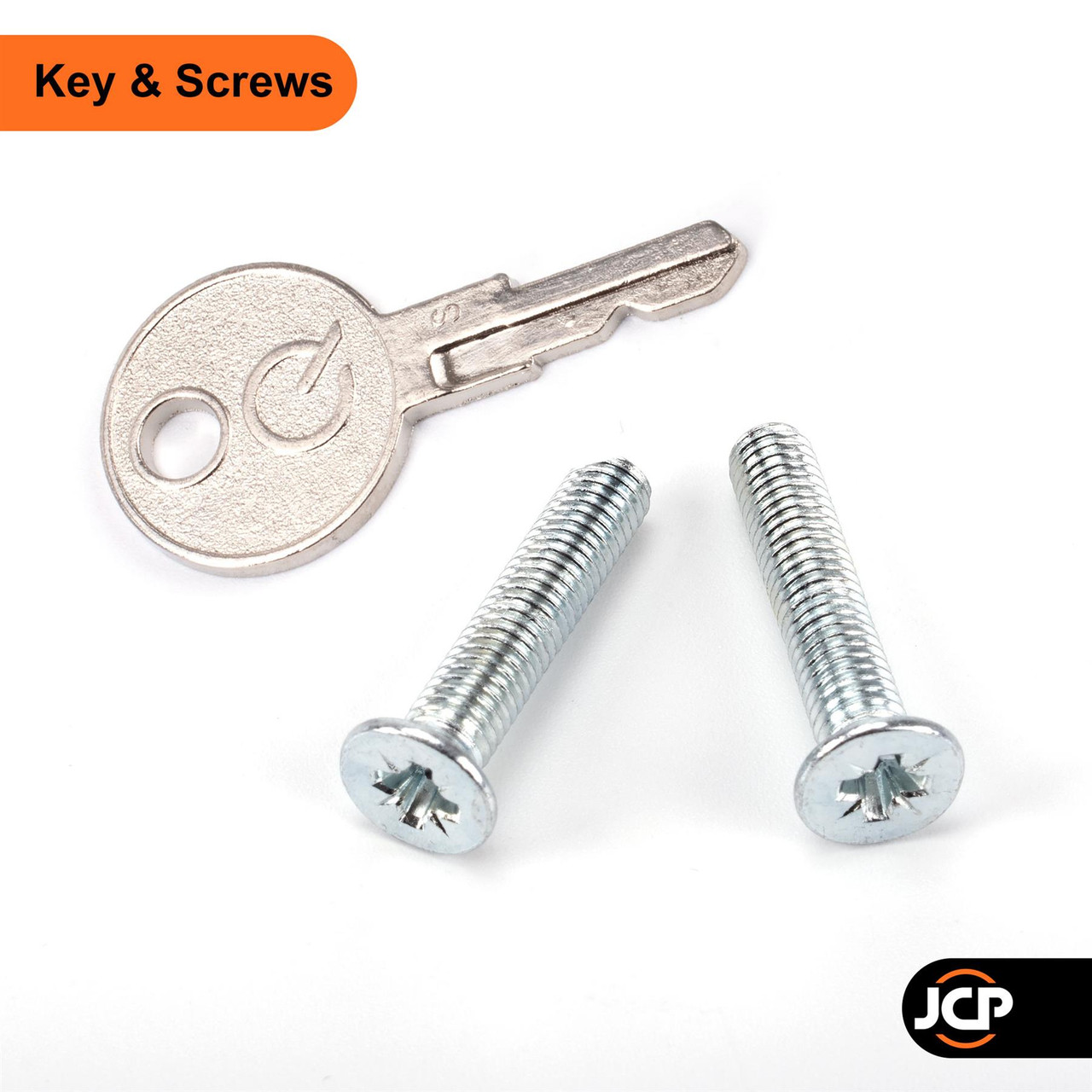

• Supplied with a key, cover caps and screws with each handle as standard
• Material: Anthracite Grey, Black and White - Zinc
• Material: Polished Chrome, Polished Gold and Silver - Aluminium
• Suited colours to match the rest of the Greenteq Alpha range
• 10 Year GreenteQ manufacturers guarantee

What's in the Pack

10 x GreenteQ Alpha Inline Espag UPVC Window Handle

10 x Keys

10 x Cover Plates

10 x Screw Packs

Dimensions:

• Handle length: 164.5mm
• Handle width: 17mm
• Handle height: 55.5mm
• Spindle width: 7mm
• Distance between screw hole centres: 43mm

Please refer to the diagrams in the gallery to help you select the correct handle.

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Spindle Length:

Spindle length is measured from the base of the handle to the end of the spindle. Different spindle lengths are available from the drop down above.

Spindle Width:

The width of all the spindles provided are 7mm.

Handing:

These handles are of the inline type, therefore they will replace both left and right hand handles.
