Fullex Universal Multipoint Door Lock Repair KIt 3 Hook 35mm Backset

Fullex Universal Repair Multipoint Door Lock 3 Part 92PZ Split Spindle 35mm Backset

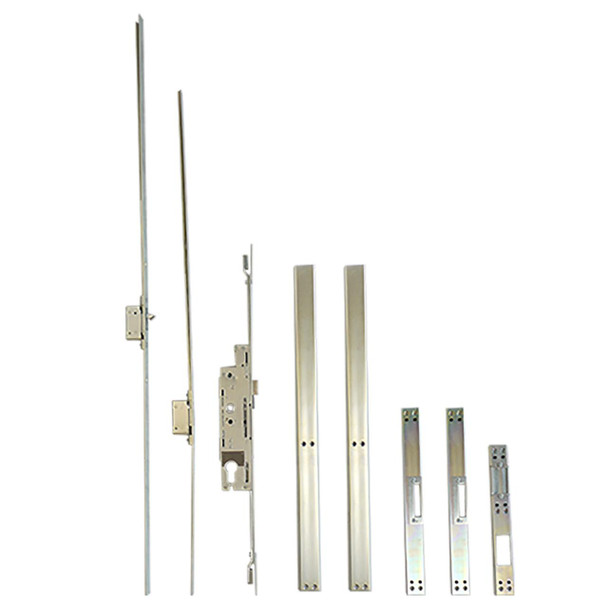

The Fullex Universal Repair Lock is designed to replace uPVC door locks with a 35mm backset. The repair lock comes in three pieces and is complemented with a three piece keep and three steel hooks, placed top, middle and bottom. It has an easily reversible latch with snib, making it non-handed and therefore suitable for both left and right handed opening doors. Available with a 35mm backset, split spindle and optional to fit keep tidy plates.

Features:

• Designed to make installation as simple as possible for both the professional and DIY user.
• Replaces PVCu door locks with a backset of 35mm
• Three piece lock and three piece keep
• Material: Faceplate and gearbox A3 Zinc and clear passivated
• Three steel hooks & two tidy plates
• Top and bottom hook centres independently adjustable
• Easily reversible latch with snib
• Non-handed so will suit left and right handed opening doors
• Single Spindle, Split Spindle
• Corrosion resistant: BS EN 1670 Grade 4 (240 hours)
• Secured by Design Approved

What's in the pack?

1 x Fullex Universal Repair Lock 35mm Backset (3 Parts)

1 x Keep (3 Parts)

1 x Tidy Plate (2 Parts)

1 x Screw Pack

Dimensions:

• Backset: 35mm
• PZ: 92mm
• Faceplate:16mm
• Hook Centres Adjustment: 1500mm to 1030mm
• Case Length: 227mm
• Case Width 14mm
• Case Depth: 52mm (not including faceplate)

Will the Fullex Universal Door Lock fit my door?

The Fullex universal Door lock has been designed to fit most PVCu Doors, but to be sure it will fit your door you just need to look at 3 simple measurements:

1. Measure the Backset: Measure the distance between the centre of the cylinder and the metal faceplate of the lock (not the edge of the door) - this needs to 35mm.
2. Measure the Centres: Measure the distance between the centre of the cylinder and the centre of the door handle - this needs to be 92mm.
3. Measure the Faceplate: Measure the metal faceplate on your existing lock this must be 16mm.

Please note: If the handles inside and outside the door are at different heights, measure the centres on both. If either are 92mm you will be able to fit this lock, but you will require new handles please see our shop for availability.

How do I install the Fullex Universal Lock?

Instructions are shown in the gallery to help you install your lock.
