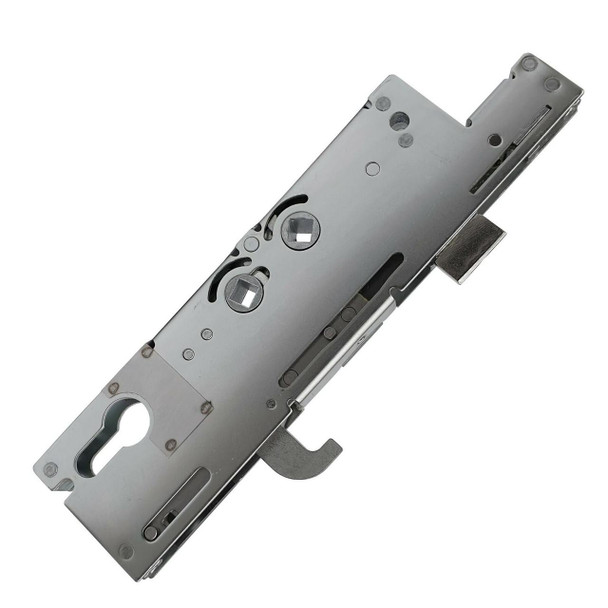

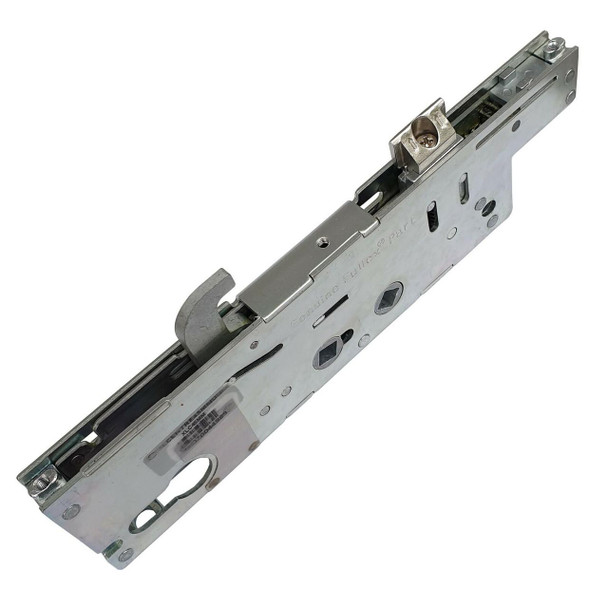

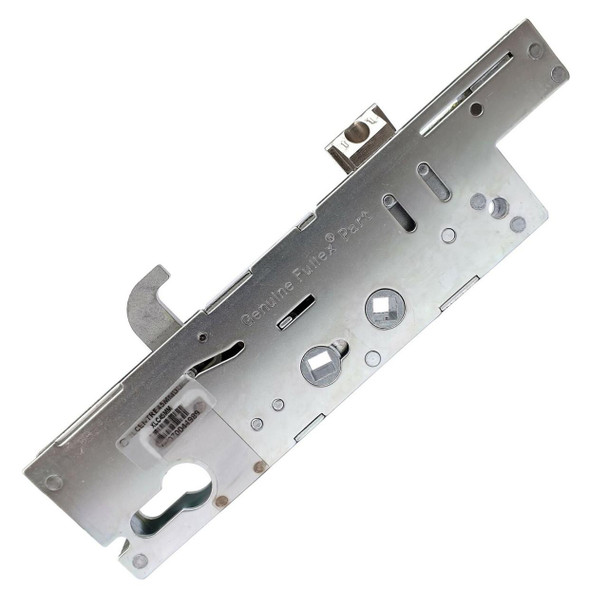

Fullex XL Hook Gearbox for Multipoint Door Lock Twin Spindle 45mm Backset

Fullex XL 45mm Upvc Composite Door Gearbox Lock Double Spindle 92mm 62mm

This is a replacement Fullex XL gearbox for Fullex multipoint locks that have a backset of 45mm. The gearbox is most likely to be at fault when a lock fails and becomes unusable. Replacing the gearbox is cost effective as it saves having to buy a complete new lock and it is quite easily achieved. The latch can also be reversed to fit both left and right handed doors. Please note, this a double spindle version.

Fullex manufacture several different types of gearboxes, always take careful measurements to ensure a correct fit.

Features:

• Hook and Deadlock
• Double Spindle - for lever/ lever handle operations
• Non Handed - fits both left and right handed doors
• PAS23/24 and Secured by Design
• Fully reversible latch

What's in the pack?

1 x Fullex XL Multipoint Door Lock UPVC Gear Box Lock Case Double Spindle 45mm 92PZ

Dimensions:

• Lock case length: 227mm
• Lock case depth: 57mm
• Lock case width: 15.5mm
• Deadbolt width: 23.3mm
• Hook width: 21.7mm
• Backset: 45mm
• PZ centres: 62mm and 92mm

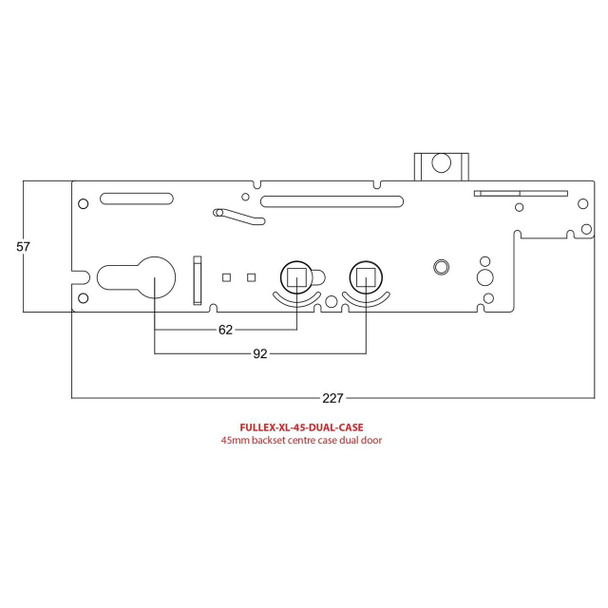

Please see diagram in gallery for more information.

What should I check before ordering a new door lock?

The most important measurements are the lock Backset and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Please remember to check your gearbox against all of the measurements (you will need to remove the lock from the door to get accurate measurements).

The centre latch is non-handed, it can easily be reversed by following the instructions below.

• Undo the screw located in the end of the latch.
• Rotate the latch 180°.
• Slide the latch back in.
• Replace and tighten the screw.
