Era Saracen Multipoint Door Lock 2 Hook 2 Roller 35mm Backset 92 PZ Split Spindle

Era Saracen Multipoint Door Lock 2 Hook 2 Roller 35mm Backset 92 PZ Split Spindle

The ERA Saracen Multipoint lock features 2 hooks, 2 rollers, deadbolt and a fully reversible latch. The ERA Saracen Multipoint lock is suitable for use on both timber and UPVC doors.

The Multipoint lock features an optional split spindle function that can be used with a split spindle pack (available separately). The split spindle allows the external handle of the door to operate the lock mechanism, however it prevents the latch operating without the door cylinder key. This feature is sometimes referred to as a dual spindle operation and also a night latch function. Split spindle relates the actual spindle inside the handles having a split in the middle

Please note: This lock does NOT include frame keeps, however these can be purchased separately.

Features

• Suitable for use on UPVC and Timber Doors
• Split Spindle
• Fully reversible

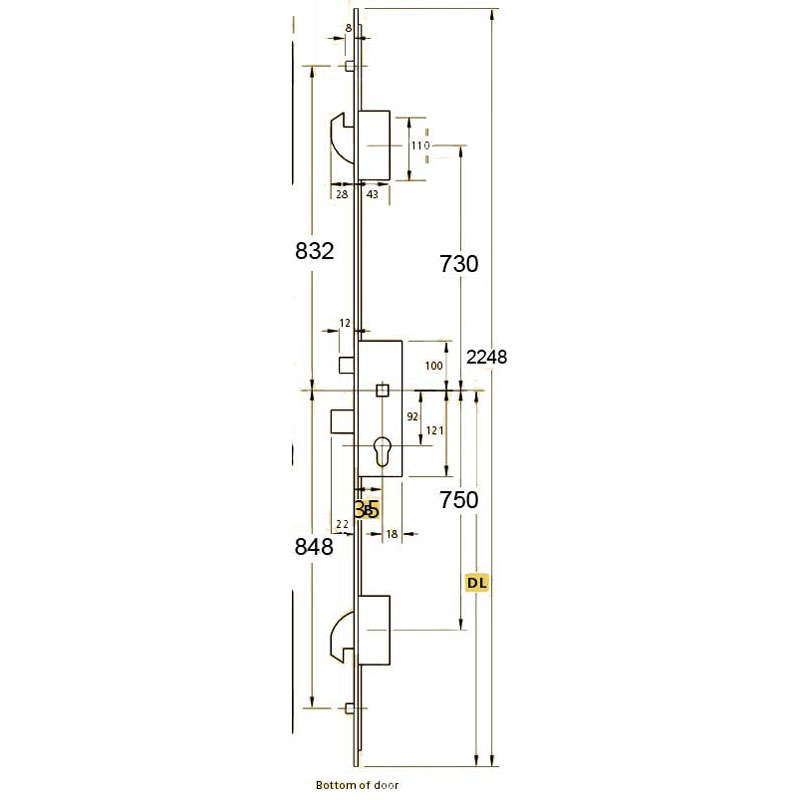

Measurements

• Overall Length : 2248mm
• Spindle to cam distance (Top) : 832mm
• Spindle to cam distance (Bottom) : 848mm
• Hook to spindle distance (Top) : 730mm
• Hook to spindle distance (Bottom) : 750mm
• PZ Centres : 92mm
• Backset : 35mm
• Faceplate Width : 16mm

What's in the pack?

1 x Era Saracen Multipoint Door Lock 2 Hook 2 Roller 35mm Backset 92 PZ Split Spindle

What should I check before ordering a new door lock?

The most important measurements are the back-set and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
