Clearline Bi Fold Flat Slim Door Handle 62mm PZ 43mm Fixings

Clearline Bi Fold Flat Slim Door Handle Lift Turn Operated for Folding Doors 62mm PZ

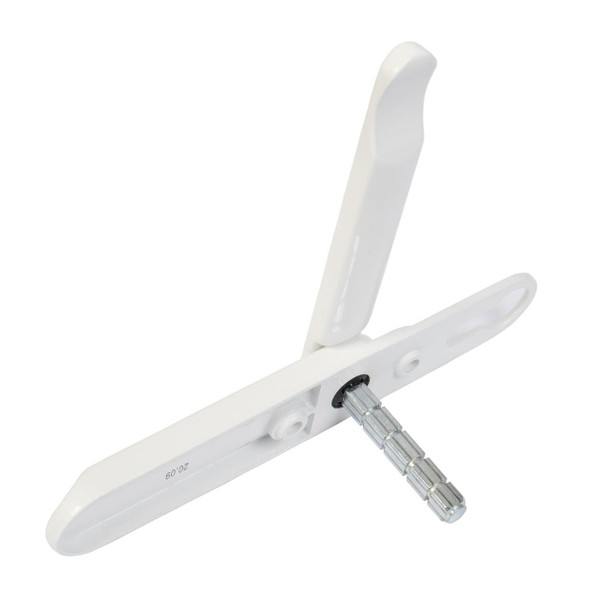

This slim, modern handle by Clearline is ideal to replace the old ,damaged handles on your Bi Fold Doors. The handle sits flush to the frame when not in operation and is easy to grip. It features "Lift & Turn Technology" which makes using the handle a breeze, and a PZ Centre hole. Solidly constructed from metal alloy, you can be assured of its durability.

Features

• Easy to fit
• Handle sits flush with frame
• Works with bi-fold doors
• Solid construction
• Lift & Turn Technology
• PZ Centre Hole

What's in the Pack?

1 x Clearline Bi Fold Door Handle

2 x Fixing Screws

Dimensions

Handle Length: 195mm

Backplate: 170mm

Screw Centres: 43mm

Spindle Length: 50mm

Spindle Diamater: 7mm

PZ Centres : 62mm

Please Note: The lever should never be used to pull the door closed it is there to operate the door mechanism locking system only.

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 43 mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 62mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

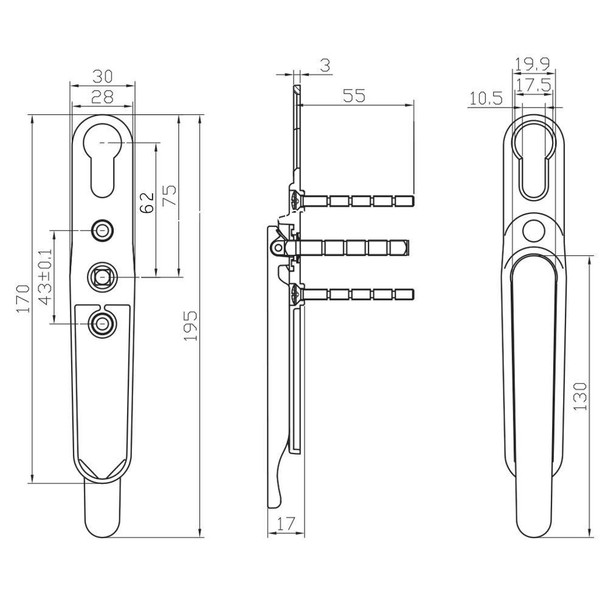

Important please check the critical measurements in the diagram in the gallery before ordering.
